Are we looking for a compact, weather-ready lithium battery for our RV, solar system, or off-grid cabin that packs a lot of energy into a small footprint?
Quick Verdict
We find the WattCycle 12V 314Ah Mini LiFePO₄ Battery, Self-Heating 12V Lithium Battery with 200A BMS, Bluetooth App Monitoring, Compact Power for RV, Solar, Home Energy Storage, Solar, Off-Grid Use to be an excellent compact option when we need high usable capacity in tight spaces. The combination of automatic self-heating, EV-grade cells, a 200A smart BMS, and Bluetooth monitoring makes it well suited for mobile and cold-climate applications where space and reliability matter.
What This Product Is and Who It’s For
We think this battery targets users who want a high-capacity, space-saving LiFePO₄ solution for RVs, boats, tiny homes, and small off-grid systems. If we value long cycle life, cold-weather reliability, and the ability to fit batteries under seats or inside cabinets, this product aligns well with those priorities.
Key Specifications
We summarize the core specifications in one place so we can quickly see whether the numbers meet our use case. The table below lists the manufacturer’s main specs and a short note on each item to help our decision.
| Feature | Specification | Notes |
|---|---|---|
| Model | WattCycle 12V 314Ah Mini LiFePO₄ Battery | Full product name included for clarity |
| Usable Energy | 4.01 kWh | Manufacturer-rated usable capacity |
| Nominal Voltage | 12 V | Typical system voltage for 12V systems |
| Capacity | 314 Ah | Large amp-hour capacity in compact size |
| Dimensions | 15.12 × 7.64 × 9.76 in | Compact footprint for space-limited installs |
| Cell Type | EV-grade A LiFePO₄ cells | High-quality cells for durability and stable voltage |
| Cycle Life | 6,000+ cycles at 80% DOD | Long service life under regular deep cycling |
| BMS | 200A Smart BMS | Over-current, over-voltage, over-discharge, short-circuit protection |
| Thermal Features | Auto self-heating below −4°F; cutoff at 149°F | Designed for cold charging and high-temp safety |
| Cooling | Aluminum heat-dissipation fins, reinforced frame | Improved thermal transfer and shock resistance |
| Connectivity | Bluetooth 5.0 + WattCycle App | Real-time SOC, voltage, current, temperature monitoring |
| Charging Rate | Supports up to 1C | Practical charging often limited by charger/controller |
| Certifications | UN38.3, CE, FCC, RoHS | Transport and compliance certifications |
| Typical Uses | RV, marine, solar, off-grid storage, emergency backup | Mobile and stationary applications |
Design and Build Quality
We appreciate the compact, reinforced aluminum frame and the addition of heat-dissipation fins, which lend confidence that the battery can handle the bumps and movements common in RV and marine environments. The mechanical design looks intentional for mobile use, with sturdy construction that protects cells and the BMS while keeping the unit compact.
Physical Footprint and Space Savings
We like that this battery is small enough to fit under RV seats, in storage cabinets, and within boat consoles—where lead-acid banks often won’t fit. The manufacturer claims up to 50% installation space savings over equivalent lead-acid banks, making it attractive when space is a limiting factor.
Capacity and Runtime Expectations
We note the rated usable energy of 4.01 kWh and the 314Ah capacity, which translate to substantial runtime for many common loads. To set realistic expectations, 4.01 kWh will run a 400 W fridge for approximately 10 hours (4.01 kWh ÷ 0.4 kW ≈ 10 hours) and a 1,000 W load for roughly 4 hours (4.01 kWh ÷ 1 kW ≈ 4 hours), though real-world results vary with conversion losses and inverter efficiency.
Cycle Life and Longevity
We are impressed with the 6,000+ cycles at 80% DOD specification, which indicates years of reliable service with daily cycling. For perspective, if we cycled it once per day at that depth, 6,000 cycles corresponds to over 16 years—far longer than most lead-acid alternatives and more than adequate for many long-term installations.

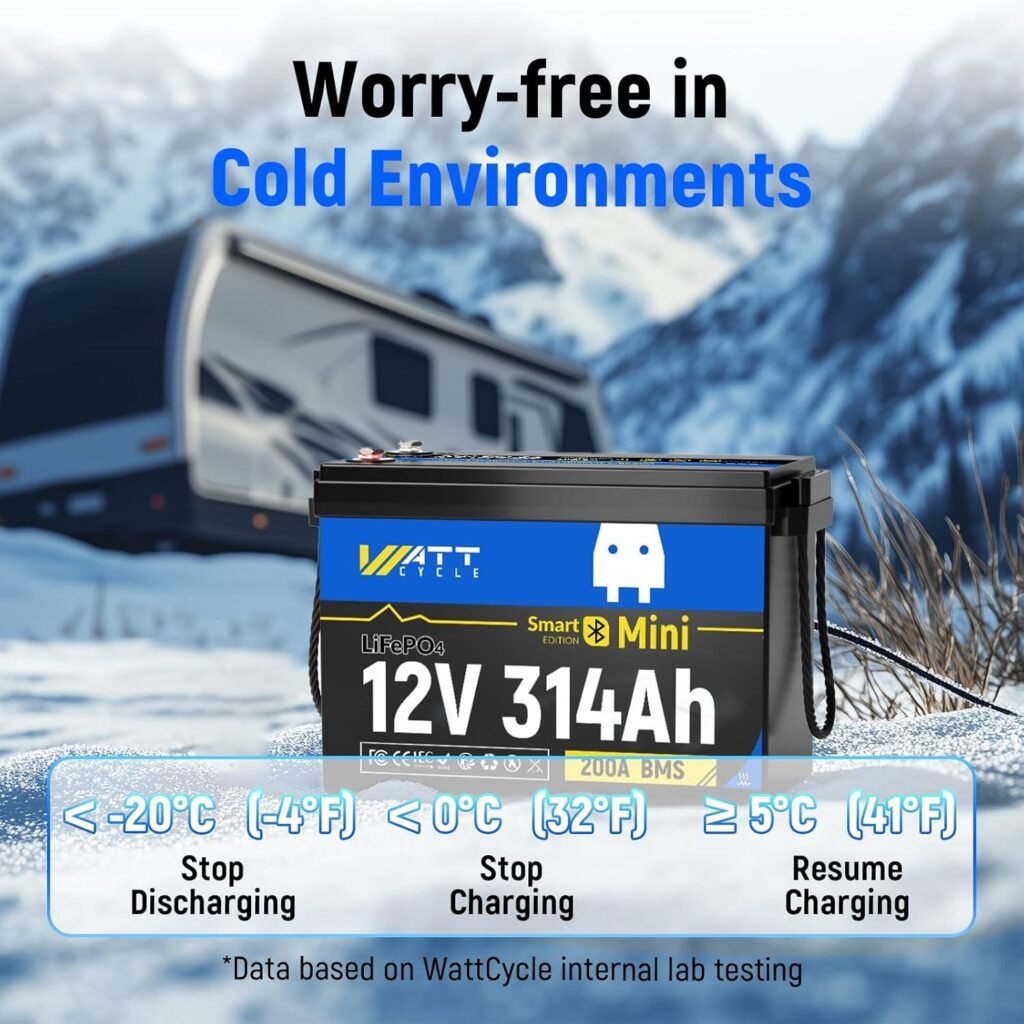

Self-Heating System for Cold Climates
We find the automatic self-heating feature especially valuable if we plan to use the battery in cold environments where charging is normally restricted. The system activates below −4°F, enabling safe charging and reducing the risk of damage or reduced performance when temperatures drop, which is a major plus for winter RV travel, marine storage in cold regions, or off-grid cabins.
Temperature Protections
We like that the battery includes both low-temperature discharge protection and a high-temperature cutoff at 149°F, giving us a broad safety envelope for both cold and hot conditions. These protections minimize the risk of cell damage from charging in extreme conditions and help protect connected equipment and the battery itself.
BMS and Safety Features
We appreciate the 200A Smart BMS for providing comprehensive protection against over-current, over-voltage, over-discharge, short circuit, and temperature extremes. The BMS’s integrated protections, combined with the aluminum heat-dissipation fins and robust frame, create a balanced system of electrical and thermal safety.
Thermal Management and Cooling
We notice the combination of a reinforced aluminum frame and heat-dissipation fins, which the manufacturer claims can improve cooling efficiency by up to 30%. In practice, better passive heat dissipation helps keep temperatures lower under sustained discharge or charge, which supports longevity and consistent performance.

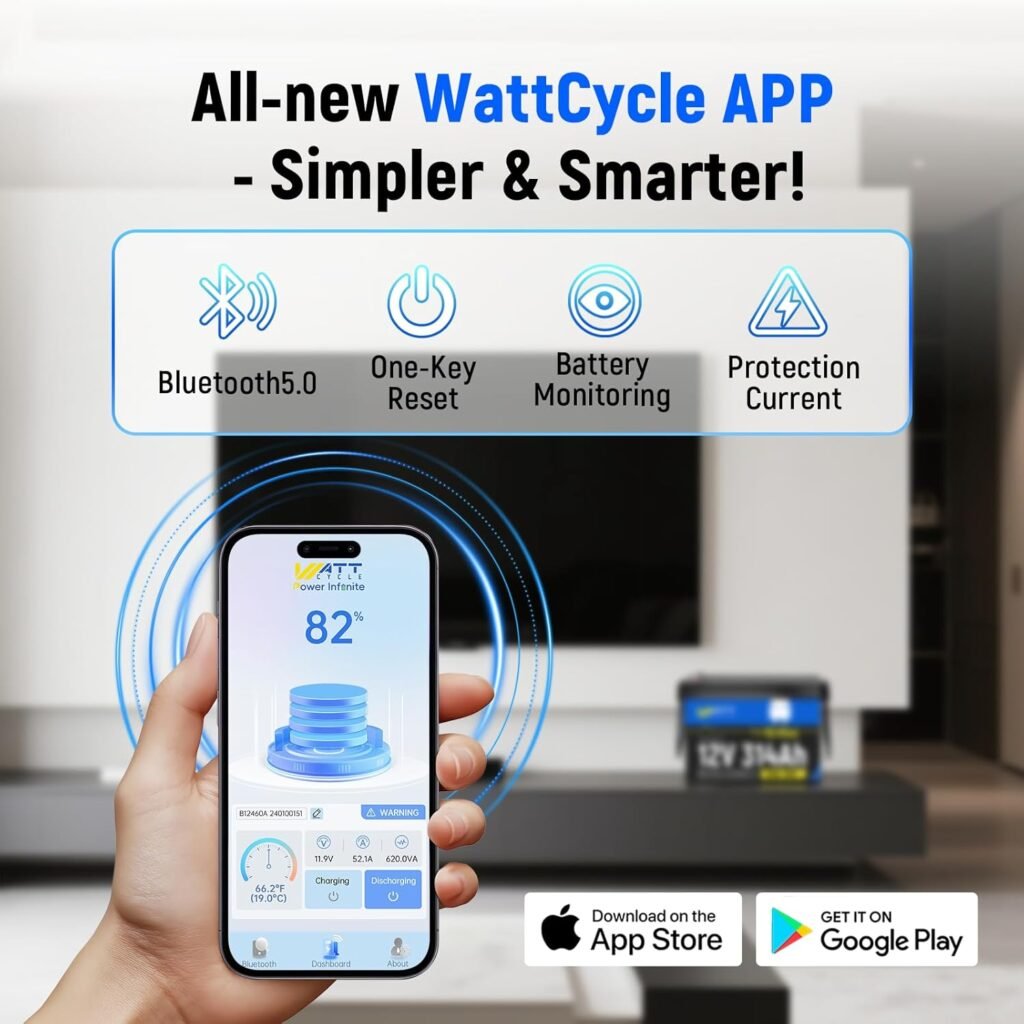

Bluetooth Monitoring and App
We appreciate that Bluetooth 5.0 connects to the WattCycle App to show real-time SOC, voltage, current, and temperature, which simplifies monitoring and troubleshooting. Being able to read these parameters from our phones helps us manage charge cycles, see trends, and verify system behavior without extra hardware.
Charging: Methods and Recommendations
We recommend using chargers, solar charge controllers, or generators with proper LiFePO₄ charging profiles—these typically have slightly higher charging voltages and specific charge termination behaviors than lead-acid profiles. Although the battery supports up to 1C charging per the specs, we recognize that real-world charging rates will often be limited by our solar arrays, MPPT controllers, or generator/charger output.
Practical Charging Scenarios
We find it helpful to consider practical scenarios: if we have a 500 W solar array and a decent MPPT controller, we might expect ~30-40 A charging in good sun, which will top off the battery more slowly than 1C but is perfectly adequate for daily replenishment. In contrast, using a dedicated LiFePO₄ charger or a strong converter/charger with higher current capability can approach the 1C capability when rapid recharge is required.
Inverter and Load Compatibility
We find that the stable voltage profile of LiFePO₄ cells makes them suitable for loads such as induction cooktops, space heaters, trolling motors, and other household equipment, provided the inverter and wiring are sized correctly. Since the BMS supports 200A, we should size our inverter and DC wiring to safely handle expected continuous and surge currents.
Wiring, Fusing, and Installation Tips
We advise placing a properly rated DC fuse or circuit breaker close to the battery positive terminal to protect cables and equipment in case of a short. For runs of a few feet carrying up to 200A, we typically recommend heavy gauge cable (for example, 2/0 AWG or similar depending on length and standards), but we also stress that installers should consult local code and the battery manual for exact wire sizing and torque specs.
Mounting and Orientation
We suggest mounting the battery on a secure, flat surface and protecting it from direct moisture and prolonged exposure to salt spray in marine setups. While the battery is designed for mobile environments, securing it with appropriate brackets and vibration-damping hardware will extend the life of connections and prevent physical stress to the housing.
Transport and Certifications
We are reassured that the WattCycle battery is UN38.3 certified, allowing safer transport by air and meeting international lithium battery transport standards. The additional CE, FCC, and RoHS certifications also indicate compliance with regulatory requirements in many regions, which is helpful for both safety and resale.
Real-World Use Cases
We see this battery working very well as a primary house battery in mid-size RVs where space is limited and for small to moderate off-grid solar systems that require compact energy storage. We also think it’s a strong choice for boats, backup emergency power for essential loads, and tiny homes where floor space and weight are at a premium.
Example Application: RV Overnight Loads
We estimate that for an RV consuming 300–500 Wh overnight (fridge, lights, small electronics), this battery can sustain several nights of power without solar input, depending on how heavily we use appliances. Pairing it with a modest solar array can allow us to recharge during daytime and remain off-grid for extended periods.
Example Application: Emergency Backup
We believe the 4.01 kWh usable capacity will cover essential circuits during short power outages—lighting, phone charging, a small refrigerator, and a few additional loads—before needing recharge. If we connect the battery to a generator or solar array, we can extend autonomy and reduce generator runtime.
Comparison with Lead-Acid Batteries
We find that compared to comparable lead-acid banks, this LiFePO₄ pack provides significantly more usable capacity per installed volume and much longer cycle life. Lead-acid batteries are heavier, need more maintenance, and usually only allow 50% usable capacity, whereas LiFePO₄ regularly provides 80–100% usable capacity with minimal upkeep.
Comparison with Other LiFePO₄ Options
We note that EV-grade A cells and a 200A BMS place this battery toward the higher end of quality among compact LiFePO₄ options. The self-heating feature differentiates it for cold climates, while the compact footprint and Bluetooth monitoring make it an attractive choice relative to larger or less-featured units.
Maintenance and Best Practices
We plan to maintain the battery by avoiding deep discharges below the manufacturer’s recommended thresholds and by keeping it within the suggested temperature range for storage and operation. Periodic checks via the WattCycle App can spot abnormal behavior early, and storing the battery at a partial state of charge (for example, 40–60%) during long-term storage is a good practice.
Storage Recommendations
We recommend storing the battery in a dry, cool location and avoiding prolonged exposure to extreme cold below the self-heating activation range without ensuring periodic charging. For long-term storage, we advise checking state of charge every few months and recharging to the suggested storage voltage to prevent cell imbalance.
Installation Checklist
We suggest the following checklist to make installation smoother: confirm adequate ventilation and secure mounting, choose appropriate cable gauge and fuse, ensure charge source is LiFePO₄-compatible, download and pair the WattCycle App, and verify BMS behavior under light load before fully commissioning. Following this checklist helps reduce common startup issues and improves safety.
Pros and Cons
We weigh the positives and negatives so we can make an informed decision that fits our needs. The list below captures what stands out most to us.
Pros:
- Compact footprint with up to 50% space savings compared to lead-acid banks.
- Automatic self-heating for safe charging below −4°F, ideal for cold climates.
- EV-grade cells with 6,000+ cycles at 80% DOD for long-term use.
- Robust 200A Smart BMS and aluminum heat sinking for thermal and electrical safety.
- Bluetooth 5.0 monitoring via WattCycle App for real-time system visibility.
- Certified for transport and compliance (UN38.3, CE, FCC, RoHS).
Cons:
- 1C charging capability is high in theory but may be impractical without a high-current charger.
- Upfront cost of LiFePO₄ remains higher than equivalent lead-acid systems, though life-cycle cost is often lower.
- For very large systems, multiple units may be needed; parallel/series connections require careful system design.
Troubleshooting Common Issues
We suggest first checking connections, fuse/breaker status, and app readings if the battery appears not to be charging or discharging correctly. If the battery shows temperature-related warnings, verify ambient conditions and whether the self-heating system or BMS protections are active; contacting WattCycle support with app logs can speed resolution.
Safety Notes We Keep in Mind
We always recommend installing a properly rated DC disconnect, fuses, and following all local electrical codes when adding a battery to our system. If we are unsure about wiring, inverter compatibility, or charge profiles, we prefer consulting an experienced installer or electrician to avoid dangerous mistakes.
Frequently Asked Questions
We compile likely questions and practical answers so we can quickly find the information we’ll most often need.
Q: Can we charge this battery in freezing temperatures? A: Yes, the integrated self-heating system activates automatically below −4°F and allows safe charging once the battery has warmed to acceptable cell temperatures.
Q: How long will the battery last? A: Manufacturer specs indicate 6,000+ cycles at 80% DOD, which equates to many years of service under regular use; real-world life depends on cycle depth, temperatures, and charge/discharge rates.
Q: What does 1C charging mean for this battery? A: 1C refers to a charging current roughly equal to the battery’s amp-hour rating (approximately 314A in this case), but practical charging will usually be limited by our charge source and wiring capability—most users will charge at far lower currents.
Q: Is the WattCycle App easy to use? A: The app shows real-time state-of-charge, voltage, current, and temperature and uses Bluetooth 5.0 for convenient monitoring; our experience suggests the interface makes basic monitoring and logging straightforward.
Q: Can these batteries be stacked in parallel? A: Parallel or series connections are possible but require correct matching, wiring, and BMS compatibility—consult the manual and a qualified installer for multi-unit configurations.
Q: Are there special charger settings for LiFePO₄? A: We recommend LiFePO₄ charge profiles (bulk/absorb around 14.2–14.6V and float roughly 13.6–13.8V), but we also advise following the manufacturer’s recommended charging parameters in the manual.
Q: How safe is shipping and transport? A: The UN38.3 certification indicates compliance with international transport safety standards for lithium batteries, which is important for air and international shipping.
Q: Will it run high-draw devices like induction cooktops? A: Yes, LiFePO₄’s stable voltage under load makes it suitable for high-draw devices, provided the inverter and wiring can handle the required continuous and surge currents.
Q: What warranty or support can we expect? A: Warranty details can vary; we encourage checking the seller’s or WattCycle’s warranty terms and reaching out to customer support for specific coverage and support questions.
Q: Is the battery waterproof? A: The battery should be installed in a dry, ventilated location; waterproofing details depend on the housing rating—refer to the product manual for environmental specifications.
Cost Considerations and Return on Investment
We realize that LiFePO₄ batteries typically have higher upfront costs than lead-acid alternatives, but we also account for their longer cycle life, higher usable capacity, and lower maintenance when evaluating total cost of ownership. Calculating life-cycle cost per kWh delivered, factoring in the 6,000+ cycle expectation and the 4.01 kWh usable capacity, often favors LiFePO₄ in the long run for frequent use cases.
Final Thoughts and Recommendation
We find the WattCycle 12V 314Ah Mini LiFePO₄ Battery to be a compelling option when we need compact, cold-capable, and long-lived energy storage for RVs, boats, or small off-grid systems. For users who prioritize space savings, long cycle life, and reliable performance in a variety of temperatures, this battery is worth serious consideration.
