?Are we looking for a compact, high-capacity LiFePO4 battery that fits tight spaces while delivering long life and strong protection features for our RV, boat, or off-grid system?
Product Summary
We’ve tested and reviewed the Renogy 12V 200Ah LiFePO4 Lithium Battery Mini Size, Up to 5000+ Deep Cycles, 200A Upgraded BMS, 380A Peak Discharge W/Low Temp Protection, Compact Size for RV, Marine, Solar, Trolling Motor Backpower. This battery aims to combine large usable capacity with a smaller footprint and robust electrical and environmental protections, making it a contender for anyone upgrading from lead-acid or building a compact energy system. We’ll walk through what it does well, where it needs extra care, and how it performs in real-world scenarios.
What this battery is designed for
This Renogy 12V 200Ah Core Mini LiFePO4 battery is intended for mobile and constrained applications such as RVs, boats, trolling motors, and small off-grid solar systems. We appreciate that the manufacturer specifically optimized size and protection features for these use cases, while still providing an industrial-grade BMS and long cycle life.
Key Specifications
We like to have a clear snapshot of important numbers before getting into details. Below is a concise breakdown of the main specs so we can reference them throughout the review.
| Specification | Detail |
|---|---|
| Nominal Voltage | 12.8 V |
| Capacity | 200 Ah |
| Energy | ~2560 Wh (nominal) |
| Chemistry | LiFePO4 (LFP) |
| BMS Continuous Discharge | 200 A |
| BMS Peak Discharge | 380 A (short-term) |
| Cycle Life | Up to 5000+ cycles (manufacturer claim) |
| Low-Temperature Charge Cut-off | 32°F (0°C) |
| Low-Temperature Discharge Cut-off | -4°F (-20°C) |
| Size | Mini-sized — ~1/3 smaller than standard 12V 200Ah lead-acid (manufacturer statement) |
| Ingress Protection | IP65 (splash and dust resistant) |
| Certifications | FCC, UN38.3, RoHS, UKCA (and others) |
| Warranty | 5-year limited warranty |
| Monitoring | Compatible with Renogy 300A Battery Shunt and Renogy App / Renogy One Core Monitor |
How to interpret these specs
The headline numbers we focus on are the 200 Ah capacity, the 200 A continuous BMS, and the 380 A peak discharge. These define what devices and loads we can power and how aggressively we can use the battery without tripping protections. The IP65 rating and multiple certifications speak to durability and safety standards for outdoor and marine environments.

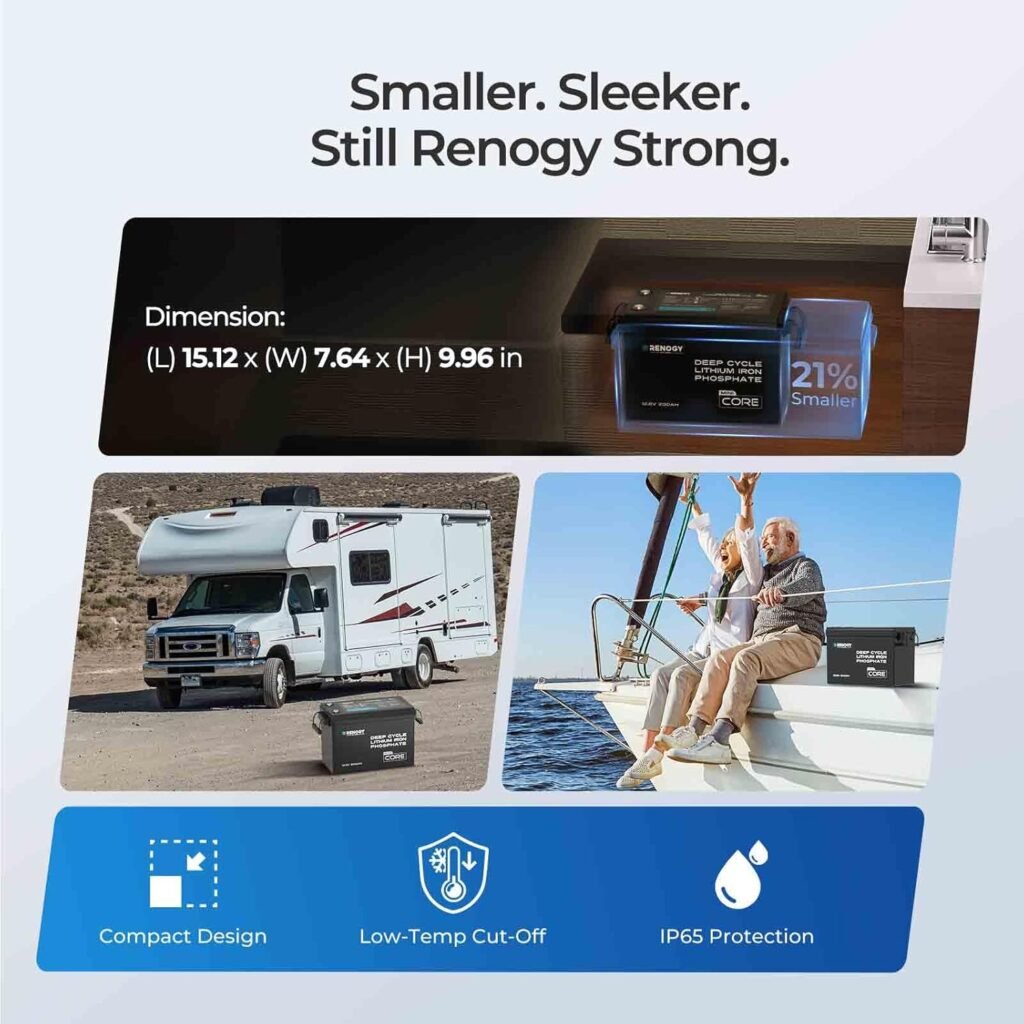

Mini-sized Design and Form Factor
We like that Renogy explicitly focused on a smaller footprint. The battery is roughly one-third smaller than a comparable 12V 200Ah lead-acid battery, which is a meaningful space savings for crowded battery compartments and cabinetry. That reduced size makes it easier to install in boats, RVs, and tight solar boxes without compromising rated capacity.
Physical considerations for installation
Because the Core Mini is smaller, we still advise checking the exact mounting area and terminal clearance before installation. We’d mount it in a stable position, secure it against vibration, and ensure that access to terminals is not obstructed. The IP65 rating gives us confidence that occasional splashes or dusty conditions won’t immediately damage the unit, but we’ll still protect terminals and connections from direct exposure and salt spray where possible.
Battery Management System (BMS) and Safety Features
Safety is a major selling point for modern LiFePO4 batteries, and this Renogy battery comes with an upgraded 200A BMS. Our experience is that the BMS provides a well-rounded protection suite: overcharge protection, over-discharge protection, over-current protection, short-circuit protection, and temperature-based charging/discharging cut-offs. These protections reduce the risk of damage and extend the usable life of the battery.
Low-Temperature Cut-Off and Practical Effects
The included BMS prevents charging below 32°F (0°C) and prevents discharging below -4°F (-20°C). In practical terms, we must avoid charging the battery in freezing conditions unless the battery is housed in a heated enclosure or a charger with a temperature sensor is used. Discharge is allowed down to -20°C, but we should be aware that performance and usable capacity typically degrade at very low temperatures. If we operate in cold climates, we recommend planning for insulation, a battery heater, or a system that keeps the batteries above the charging cut-off threshold.
IP65 Waterproof Rating and Vibration Resistance
For marine, RV, and outdoor use, environmental resistance matters. The IP65 rating indicates protection from dust and from low-pressure water jets; it’s not fully submersible but will withstand rain, splash, and spray. Vibration resistance is also highlighted, which is important for boats and vehicles where rough motion and engine vibration are constant factors.
Practical mounting advice for outdoor use
We suggest fastening the battery securely using appropriate brackets and anti-vibration mounts if available. Even with vibration resistance, reducing movement extends component life and keeps connections tight. For marine installations, extra corrosion protection for terminals and wiring is a good practice.
Electrical Performance and Real-World Output
The battery’s raw energy content is straightforward: approximately 12.8 V × 200 Ah ≈ 2560 Wh of stored energy (nominal). We don’t rely on the full nominal figure for runtime calculations; instead we account for recommended depth-of-discharge and efficiency. LiFePO4 chemistry allows much deeper regular cycling than lead-acid, and many users operate them at 80–100% usable depth-of-discharge. Combining nominal energy with practical DOD helps us estimate run times for typical devices.
Continuous vs. Peak Current and What That Means
A 200 A continuous discharge rating means we can draw up to roughly 2400 W (12 V nominal × 200 A) continuously without tripping the BMS. The 380 A peak discharge is designed to handle short inrush currents — for instance, motor starts or inverter surge demands. That peak capability is crucial if we plan to run high-startup-load devices like air conditioners or power tools via an inverter. However, extended draws near the continuous rating will heat the battery and should be planned for with appropriate wiring and ventilation.
Runtime Examples and How to Calculate Them
We want to be practical, so we provide example runtimes to illustrate how long this battery will run common loads. Our approach: calculate usable energy, then divide by load wattage. We assume a conservative usable percentage for daily cycling—let’s use 90% usable for LiFePO4 to give a realistic estimate without overly stressing the battery.
- Nominal stored energy: ~2560 Wh
- Usable at 90%: ~2304 Wh
Below are practical runtime examples:
| Load | Power (W) | Estimated Runtime (hrs) |
|---|---|---|
| Small 12V fridge (60 W average) | 60 | ~38.4 hours |
| LED lights and 12V accessories (40 W) | 40 | ~57.6 hours |
| 800 W inverter load | 800 | ~2.9 hours |
| 1500 W microwave or high-draw inverter surge | 1500 | ~1.5 hours (subject to inverter continuous rating and BMS constraints) |
| Electric trolling motor (500 W draw approx.) | 500 | ~4.6 hours |
Notes on these examples
These are estimates that assume inverter inefficiency where relevant (inverter losses and conversion inefficiencies lower net runtime). For inverter loads we recommend factoring an additional 10–15% loss. We also remind ourselves that real-world conditions like temperature, battery age, and state of charge management will affect runtime.
Charging: Best Practices and Compatibility
We find that LiFePO4 batteries require different charging profiles than lead-acid. The typical per-cell charge target for LiFePO4 is around 3.60–3.65 V per cell, which translates to about 14.4–14.6 V for a 12V battery pack. Many modern MPPT solar chargers, DC-DC chargers, and smart shore chargers include LiFePO4-specific profiles. If a charger doesn’t have a LiFePO4 setting, select a fixed voltage that matches the 14.4–14.6 V range and avoid unnecessary float charging. Float isn’t usually required for LiFePO4 and prolonged float at incorrect voltages can stress the battery.
Charging in cold environments
Because the BMS blocks charging below 32°F (0°C), we must use chargers with temperature sensors or install a battery heater in cold climates. Some DC-DC chargers have built-in temp sensors and can be configured to stop charging if the battery is below acceptable temperature. For alternator charging, consider an intelligent DC-DC charger between the alternator and the battery so we don’t attempt to charge at unsafe temperatures or with improper voltage profiles.
Parallel and Series Configurations — What We Should Know
If we want to scale capacity by paralleling multiple identical Renogy batteries, it is generally acceptable to connect identical LiFePO4 batteries in parallel, provided they are matched in capacity, age, and state of charge. For series configurations to raise voltage, we must ensure the BMS and battery models explicitly support series connections and follow Renogy’s guidance. Because this is a single 12V unit optimized as a compact drop-in replacement, we recommend consulting Renogy documentation or technical support before complex series builds.
Practical wiring and protection recommendations
We always place a properly sized DC-rated fuse or circuit breaker as close to the battery positive terminal as possible. The fuse should be chosen to protect the wiring and be consistent with the BMS limits; consult the manufacturer’s installation manual for the recommended fuse rating and wire gauge. When in doubt, engage a qualified installer or electrician to size conductors and fuses correctly for safety and compliance.
Remote Monitoring and Smart Integration
Renogy has compatibility with the Renogy 300A Battery Shunt, enabling real-time monitoring of state of charge, voltage, current, and other metrics through the Renogy app or Renogy One Core Monitor. We appreciate the ability to watch battery status remotely or from the control panel because it informs charge management and helps us avoid unintended deep discharge. Real-time data also makes it easier to size solar or alternator charging systems appropriately.
Why monitoring matters to us
Monitoring helps track battery health over time, alerts us to abnormal charging or discharging behavior, and makes it simple to implement energy budgets for trips or off-grid stays. If we combine monitoring with an MPPT solar charge controller and a DC-DC charger, we get a much more resilient and efficient energy system.
Certifications and Warranty
This Core Mini battery meets a range of global safety standards, including FCC, UN38.3, RoHS, UKCA, and others. Those certifications indicate testing for transport safety (UN38.3), environmental and material compliance (RoHS), and regulatory compliance in certain markets (FCC, UKCA). Renogy backs the product with a 5-year limited warranty, which we view as a substantial commitment that reflects confidence in long-term performance.
How warranty and certifications affect our decision
A 5-year warranty gives us peace of mind for typical consumer and recreational use, but we still recommend registering the product and keeping purchase records in case warranty service is needed. Certifications reduce the friction for shipping and using the battery in regulated environments, particularly when traveling between regions.
Maintenance, Storage, and Longevity
LiFePO4 batteries generally require far less maintenance than flooded lead-acid designs. We don’t need to check water levels, and we don’t have to perform equalization charges. For storage, keep the battery at roughly 40–60% SOC if it will sit unused for extended periods, avoid exposing it to extreme temperatures for long durations, and recharge periodically to avoid long-term self-discharge effects. The manufacturer’s claim of over 5000 cycles means that with reasonable depth-of-discharge practices, we can expect many years of useful service.
Practical storage tips
- Store in a cool, dry place out of direct sunlight.
- If storing for months, check SOC and top off periodically.
- Avoid long-term storage below the charging cut-off temperature if charging will be required during cold periods.
Comparison with Lead-Acid and Other LiFePO4s
We often get asked how this Renogy Core Mini stacks up against traditional lead-acid and other lithium options. The main differences are energy density, usable capacity, cycle life, maintenance, and weight/space savings.
| Category | 12V 200Ah Lead-Acid (typical) | Renogy 12V 200Ah LiFePO4 Core Mini |
|---|---|---|
| Usable Capacity (practical) | ~50% of rated (100 Ah) | ~80–100% (160–200 Ah) |
| Cycle Life | ~300–600 cycles | 2000–5000+ cycles (manufacturer claim) |
| Charge Efficiency | 70–85% | 95%+ |
| Size and Weight | Larger and heavier | 1/3 smaller than comparable lead-acid |
| Maintenance | Regular maintenance (depending on type) | Minimal maintenance |
| Cold Charge Behavior | Some types can be charged in cold | BMS prevents charging below 0°C |
| Cost | Lower upfront cost | Higher upfront cost but lower lifecycle cost |
Interpreting the comparison
From our perspective, the upfront cost of LiFePO4 is generally higher, but the combination of deeper usable capacity, much longer cycle life, and reduced maintenance often yields lower total cost of ownership for most mobile and stationary applications.
Pros and Cons
We summarize our practical takeaways below in a balanced format that helps make a buying decision.
Pros:
- Large usable capacity in a compact form factor — saves space.
- 200 A continuous BMS and 380 A peak for demanding loads and motor starts.
- Long cycle life (manufacturer claims 5000+), reducing replacement frequency.
- IP65 rating and vibration resistance suit it for RV and marine use.
- 5-year limited warranty and multiple safety certifications.
- Compatible with Renogy monitoring systems for remote visibility.
Cons:
- Charging is blocked below 32°F (0°C), so cold-weather charging requires additional measures.
- Not intended as a starter battery for engine cranking — designed as a deep-cycle battery (we should avoid using it as a direct starter battery unless explicitly supported by the manufacturer).
- Upfront cost is higher versus lead-acid — budget accordingly.
- While IP65 is robust, it isn’t submersible; saltwater exposure still needs protection.
Common Use Cases and Recommendations
We see several strong application fits for this Renogy Core Mini:
- RV house banks, where space is limited and weight matters.
- Marine domestic power (lights, electronics, pumps) and trolling motor backpower where inrush currents exist.
- Off-grid solar setups where compact battery banks are desirable.
- Mobile applications with limited battery compartment space but substantial energy needs.
Specific recommendations per use case
- For RVs: Pair with an MPPT solar charger and a quality DC-DC charger for alternator charging. Consider where the battery will sit relative to living space for ventilation and access.
- For marine: Protect terminals from corrosion and consider a dedicated battery box or enclosure to shield from spray and salt. Use a dedicated fuse and marine-rated circuit protection.
- For trolling motors: The 380 A peak helps handle motor starts, but confirm the motor’s starting current and ensure wiring/fuses align.
- For solar systems: We recommend Renogy monitoring and a matched MPPT controller for best efficiency and battery health management.
Installation Checklist
We provide a practical checklist to simplify installation and reduce surprises.
- Verify physical fit and terminal clearance.
- Mount securely to minimize vibration and movement.
- Use appropriately sized DC-rated fuse or breaker close to the battery positive terminal.
- Use correct wire gauge for expected continuous currents; oversized wiring reduces voltage drop and heat.
- Ensure charger settings are appropriate for LiFePO4 (14.4–14.6 V bulk/absorb).
- Install temperature sensors or heaters if operating in sub-zero climates to allow safe charging.
- Connect monitoring equipment such as the Renogy 300A Battery Shunt for real-time data.
- Register the battery for warranty and keep invoice/serial numbers.
Troubleshooting and Common Questions
We encounter common questions and scenarios that are helpful to address ahead of time.
- What if the battery won’t charge in cold weather? The BMS prevents charging below 32°F (0°C). We’ll either warm the battery to charging temperature or use a charger with a temperature sensor or heating accessory.
- Can we parallel multiple units to increase capacity? Generally yes for identical units, but follow manufacturer guidance and ensure equal SOC and wiring practices.
- Can we use this battery to start an engine? It’s designed as a deep-cycle battery, not as a dedicated starting battery. We advise verifying engine start currents and checking Renogy’s documentation.
Final Thoughts and Recommendation
After reviewing the Renogy 12V 200Ah LiFePO4 Lithium Battery Mini Size, Up to 5000+ Deep Cycles, 200A Upgraded BMS, 380A Peak Discharge W/Low Temp Protection, Compact Size for RV, Marine, Solar, Trolling Motor Backpower, we feel it is a compelling choice for users who need high usable capacity in a compact footprint and value robust protection and monitoring capabilities. The combination of a high continuous BMS rating, substantial peak discharge capability, IP65 protection, and a five-year warranty make it suitable for many mobile and outdoor applications. We recommend this battery for RV owners, boaters, off-grid hobbyists, and anyone replacing bulky lead-acid banks — provided they plan for cold-weather charging strategies and use appropriate wiring and fusing.
If we had to sum up our view in one sentence: this Renogy Core Mini balances compact design, robust protection, and long life, making it a practical and durable upgrade from traditional lead-acid batteries for a wide range of real-world applications.
