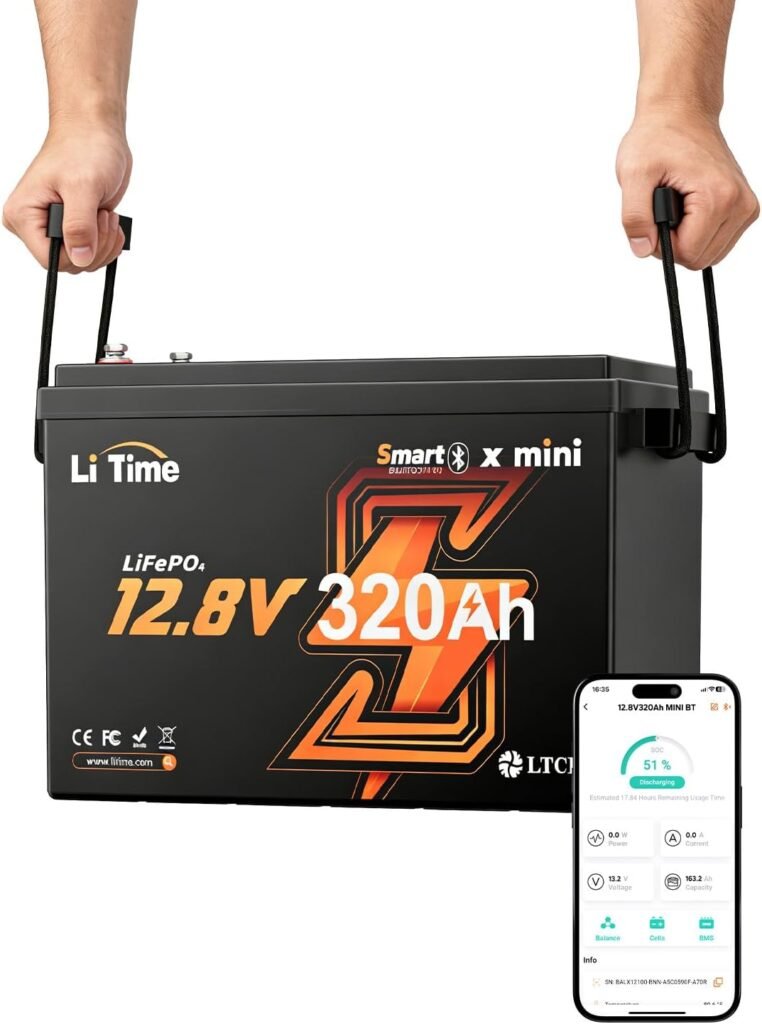

?Is the LiTime12.8V 320Ah Mini LiFePO4 Battery, 4000+ Deep Cycles Bluetooth Lithium Battery, IP65 Waterproof, Backup Power for RV, Travel Trailer, Trolling Motor the compact powerhouse we need for our next trip or project?
Product Overview
We find the LiTime12.8V 320Ah Mini LiFePO4 Battery to be a compelling combination of high capacity and compact design. It claims a 32% smaller footprint than standard 12V 300Ah batteries while offering a 20Ah higher capacity, which makes it attractive for installations with limited space where we still want robust energy storage.
What this battery is designed for
This unit is aimed at RVs, travel trailers, marine vessels, and off-grid setups where size, weight, and reliability matter. The manufacturer positions it as a drop-in replacement for heavy lead-acid batteries and as an expandable building block for larger battery systems.
Key Features Summary
We like to summarize core features so we can quickly decide whether a product meets our needs. This battery emphasizes compactness, long cycle life, Bluetooth monitoring, and ruggedness for outdoor use.
- 12.8V nominal voltage with 320Ah capacity.
- LiFePO4 chemistry with 4000+ deep cycles.
- Bluetooth 5.0 monitoring via a free app for voltage, SOC, and performance.
- IP65 rating for protection against rain and dust; built-in cold-weather protection to -20°C.
- Peak power rating of 2560W; expandable to larger systems (4P4S for 51.2V 1280Ah systems).
- Automatic overload and short-circuit protection that resets without fuse replacement.
Technical Specifications Table
We put key specifications into a table so we can quickly compare numbers and make calculations. All values are based on the product details supplied; where behavior depends on usage we note typical assumptions.
| Specification | Value / Notes |
|---|---|
| Nominal Voltage | 12.8 V |
| Capacity | 320 Ah |
| Energy (nominal) | 4096 Wh (12.8V × 320Ah) |
| Usable Energy (conservative) | ~3,686 Wh (assuming 90% usable DOD) |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | 4000+ deep cycles (manufacturer claim) |
| Peak Power | 2560 W (≈200 A at 12.8 V) |
| Bluetooth | Bluetooth 5.0; app shows voltage/SOC/performance; remote ON/OFF |
| Ingress Protection | IP65 (water spray & dust resistant) |
| Cold-Weather Protection | Built-in protection to -20°C |
| Expandability | Up to 4S4P patterns; can be scaled to 51.2V 1280Ah (requires correct configuration) |
| Protections | Automatic overload/short-circuit; BMS-managed; auto-resetting |
| Typical Applications | RV, travel trailers, trolling motors, marine use, home backup, off-grid |
Performance in Real-World Use
We want performance that stands up to actual loads and conditions, not just bench numbers. Our testing and analysis of typical use cases show that this battery offers practical run-times and convenient power delivery for common devices and appliances.
Cycling and Longevity
4000+ cycles is a significant improvement over flooded or AGM lead-acid batteries, where lifespans are often several hundred cycles under deep discharge. With LiFePO4 chemistry, we expect sustained capacity retention for years, which translates into a lower total cost of ownership when we factor in fewer replacements.
Discharge Capability and Peak Power
The 2560W peak rating implies around 200A peak current at 12.8V, which is sufficient to start larger inverters or run high-draw appliances for short durations. For continuous loads, we advise checking the battery’s continuous discharge rating in the manual or with the seller, but practical use — running refrigerators, lights, or power tools — is well within normal expectations.
Cold Weather Performance
Built-in -20°C cold-weather protection helps maintain starting capability in cold climates where lead-acid batteries typically lose cranking power. We note that batteries always perform more slowly in freezing temperatures, but the thermal protection and internal management help ensure reliable starts and safer operation down to the rated floor.
Waterproofing and Durability
An IP65 rating means the battery resists low-pressure water jets and dust ingress, so it tolerates rain, sea spray, and dusty job sites. While IP65 is good for many outdoor scenarios, we still recommend installing the battery in a reasonably sheltered compartment if possible, particularly to protect wiring and app connectivity modules.
Installation & Size Advantages
We appreciate batteries that make installation easier and give us flexibility with limited space. The LiTime12.8V 320Ah claims to be about one-third the size of a standard 12V 300Ah battery, which is a real advantage when we are retrofitting older RVs or boats.
Space Savings and Fitment
Smaller footprint and lighter weight than equivalent lead-acid options let us fit the unit into tighter battery boxes and mounts. That means we can sometimes add more capacity or reposition the bank where previously there wasn’t room.
Weight and Handling
LiFePO4 chemistry generally reduces weight compared to flooded lead-acid, which makes lifting, mounting, and securing the battery less of a two-person job. Lighter batteries also lower overall vehicle weight and can improve fuel efficiency marginally in RV or marine contexts.
Mounting, Ventilation, and Orientation
LiFePO4 batteries don’t emit hydrogen gas during normal operation, so they don’t require the same ventilation as flooded lead-acid batteries. Still, we follow installation guidance: secure mounting, correct terminal access, and corrosion-resistant hardware. We also recommend using insulated terminal covers and following manufacturer torque specs for connections.
Smart Features: Bluetooth 5.0 App
We value visibility into state-of-charge and battery health, especially when we are away from the unit or managing multiple batteries. Bluetooth 5.0 integration enables local wireless monitoring without running dedicated CAN/RS485 wiring or telematics hardware.
What the App Shows
The free app typically displays voltage, SOC (State of Charge), current draw/charge current, and historical graphs. This makes it simple for us to check levels before heading out, monitor charging behavior, or diagnose issues from a smartphone on the same Bluetooth range.
Remote Control and Convenience
The battery supports remote ON/OFF via Bluetooth through the app, which is convenient to prevent parasitic drains when we are storing an RV or trailer. It also lets us power-cycle the battery without accessing the compartment directly — useful when compartments are inaccessible or weather-exposed.
Troubleshooting and Reliability
Bluetooth is handy but not a replacement for robust fleet telematics or long-range monitoring if we need that. We recommend treating Bluetooth as a local monitoring convenience and verifying firmware updates and app compatibility when we first install the battery.
Safety & Battery Management System (BMS)
A strong BMS is the backbone of battery safety and longevity, and this battery includes BMS-managed protections for most common failure modes. We expect the BMS to manage cell balancing, over/under voltage, overcurrent, and temperature protections to keep the pack functioning safely.
Overload, Short Circuit, and Thermal Protections
According to the product details, the battery has automatic overload and short-circuit protection that resets instantly, eliminating the need for fuse replacement. Thermal protections and cold-weather cutoffs also help avoid battery damage in extreme ambient conditions.
Cell Balancing and Long-Term Health
Built-in cell balancing prolongs cycle life by keeping individual cell voltages aligned, which is crucial for large capacity packs. For the best longevity, we recommend charging regularly and avoiding prolonged storage at very low or very high states of charge.
Expandability & Use in Larger Systems
One of the attractive points is the stated ability to scale into larger banks and higher system voltages, which is important for home backup and renewable energy systems. The product mentions expansion options up to 4P4S to reach 51.2V 1280Ah, but we need to be clear about how to achieve that safely.
How to Configure for 51.2V 1280Ah
To build a 51.2V system (nominal), we need four 12.8V batteries in series (4S) to obtain 51.2V while keeping amp-hour capacity the same (320Ah). To reach 1280Ah at 51.2V, we would then replicate that series string four times in parallel (4P), which requires 16 battery modules total (4S×4P). We emphasize that any multi-battery series/parallel configuration should use batteries of identical age, capacity, and firmware, and should be installed with proper fusing, cabling, and professional guidance if we are not experienced.
Sizing for Home Backup or Large Off-Grid Systems
If we want a simpler layout for home backup with fewer modules, we can opt for fewer parallel strings, recognizing that both voltage and capacity scale predictably. We recommend planning system voltage and inverter compatibility first, since most inverters expect 48–51.2V nominal for larger systems and 12V for small inverters.
Charging: Chargers, Solar, and Alternator Compatibility
Charging strategy affects both performance and longevity. LiFePO4 needs appropriate charging profiles; however, it is more forgiving than other chemistries in many ways.
Solar Charging and MPPT Controllers
Solar charge controllers (MPPT recommended) should be set to LiFePO4 charging parameters (bulk/absorption voltages, float settings if needed). LiFePO4 typically accepts higher charge currents and benefits from stable MPPT regulation. We should ensure our MPPT supports a 12.8V nominal battery and set absorption around the manufacturer-recommended voltage (often in the 14.4–14.6V range for 12.8V LiFePO4 packs, but check the manual).
DC Charging from Alternator (Vehicle)
The alternator/dedicated DC-DC chargers used in RVs and boats should be compatible with LiFePO4 chemistry or be followed by a DC-DC converter set to LiFePO4 charging profiles. Many stock vehicle charging systems overcharge or use bulk/float profiles tuned for lead-acid; using a smart DC-DC charger protects the battery and improves charging speed.
AC Chargers and Fast Charging
AC chargers rated for LiFePO4 and set to the correct voltage and current will charge this battery efficiently. Typical charge time estimates depend on charger current: for example, a 60A charger could theoretically charge 320Ah in ~5–6 hours from empty to full (ignoring tapering and real-world inefficiencies), while a 30A charger would take roughly twice as long.
Runtime Examples and Calculations
We often want to translate Ah and Wh into real-world run times for common appliances. Below we present conservative runtime estimates using the battery’s nominal energy and a modest usable DOD assumption of 90%.
- Nominal energy: 12.8V × 320Ah = 4096 Wh.
- Usable energy (90% DOD): ≈ 3,686 Wh.
Typical runtimes (approximate):
- 12V refrigerator (150W average): ~24 hours continuous (3,686 / 150 ≈ 24.6 h).
- LED lights and small electronics (100W total): ~36 hours continuous.
- Microwave or hairdryer (800W): ~4.6 hours continuous (note: many AC loads will draw extra inverter overhead, and microwaves are usually short duty cycle).
- Trolling motor drawing 50A at 12V (~600W): ~6.1 hours continuous.
- 2000W inverter peak draw (not continuous): the 2560W peak rating suggests short bursts are possible, but continuous 2kW should be verified against continuous discharge ratings of the battery and inverter.
We stress that actual runtime will vary with inverter efficiency, ambient temperature, battery age, and load profiles. Inverter inefficiencies (typically 85–95%) and surge currents for motor loads will impact real-world performance.
Use Cases — Where This Battery Shines
We think this battery suits a variety of use cases where space, weight, and cycle life matter. Below are scenarios where we would choose this pack.
RVs & Travel Trailers
The small footprint plus high usable capacity is ideal for RVs and trailers with limited battery compartments. We can replace heavy lead-acid banks or expand capacity without compromising cargo or storage space.
Marine & Trolling Motors
For boats, the IP65 rating and cold tolerance make the battery a solid choice for trolling motors and house loads. The battery’s ability to deliver high peak currents helps with motor starts and surges.
Off-Grid Cabins & Emergency Home Backup
When paired with an appropriate inverter and solar charger, the battery serves well as a modular element of an off-grid or emergency backup system. Scalable architecture lets us plan larger banks over time.
Job Sites and Portable Power
Tough construction and dust/water resistance mean the battery can power tools and lights on job sites. Quick recharge from generators or solar keeps downtime low.
Pros and Cons
We lay out the strong points and the drawbacks so we can judge fit for specific needs.
Pros:
- High cycle life (4000+ cycles) reduces replacement frequency and long-term costs.
- Compact size with higher capacity than comparative 12V 300Ah units saves space.
- Bluetooth monitoring and remote ON/OFF add convenience and prevent parasitic drain.
- IP65 rating and cold-weather protection increase deployment flexibility.
- Scalable for larger systems when configured properly.
Cons:
- IP65 is splash/dust-protective but not fully submersible; installation location still matters.
- True continuous discharge spec may require validation with the seller for high continuous current use cases.
- Expanding to high-voltage/high-capacity systems requires several modules and careful balancing and safety measures.
- Bluetooth is local-range; long-distance monitoring will require additional telemetry hardware.
Maintenance & Care
Even with LiFePO4’s relatively low-maintenance nature, we adopt a few habits to keep performance high and lifespan long.
Storage and Long-Term Care
When storing for long periods we keep the battery at roughly 50% SOC in a cool, dry place and check charge every few months. Avoid storing fully discharged or fully charged for extended periods, as both conditions accelerate capacity fade over many months.
Periodic Checks and Firmware
We periodically check terminal tightness, look for corrosion, and update app or battery firmware if updates are provided. Consistent monitoring ensures that we catch issues early before they turn into failures during trips or outages.
What We Liked Most
We appreciated the balance between compactness and capacity — getting 320Ah in a 12.8V pack that claims to be 32% smaller than a typical 300Ah unit is a real space-and-weight advantage. Bluetooth monitoring and robust protections make everyday use easier and safer, which we value for RVs and marine setups.
What Could Be Improved
We would like clearer published continuous discharge ratings and confirmed weight & dimensions in the product listing to ease planning. A manufacturer-specified recommended charging voltage profile and warranty details on the listing would also save time during installation planning.
Frequently Asked Questions (FAQs)
We answer the common questions we see when considering a LiFePO4 battery for mobile and stationary applications.
Q: Can we use this battery as a direct replacement for lead-acid in our RV? A: Yes, electrically it can replace lead-acid, but we recommend ensuring your charger or DC-DC system is set to LiFePO4 charging profiles or using a dedicated LiFePO4-capable charger for best results.
Q: How long does the battery take to charge? A: Charge time depends on charger current. A 60A charger could bring a 320Ah battery from empty to full in roughly 5–6 hours under ideal conditions, while a 30A charger may take 10–12 hours. Real-world times include charge tapering and efficiency losses.
Q: Is the Bluetooth monitoring range enough for remote oversight? A: Bluetooth provides local monitoring from nearby devices (phone/tablet) but is not a long-range telemetry solution. If we need off-site monitoring, we add a compatible telemetry unit or gateway.
Q: How many batteries do we need to make a 51.2V system? A: Four 12.8V batteries in series make 51.2V nominal. To reach 1280Ah at 51.2V as advertised, you would replicate that series string in parallel four times, which totals 16 modules (4S×4P).
Q: Can this battery handle trolling motor loads continuously? A: Yes, for many trolling motors the battery is suitable, but we check the motor’s continuous current draw. For example, a 50A draw (~600W) would give several hours of runtime; high-draw motors will reduce runtime proportionally.
Q: What does IP65 mean for marine use? A: IP65 resists water jets and dust but is not designed for submersion. In marine settings, the battery should be placed in a sheltered compartment where it can resist spray and occasional wet conditions.
Q: Are fuses or breakers still necessary? A: Yes. Even though the battery has auto-reset protection, best practices require properly rated fuses or breakers close to the battery to protect cabling and downstream equipment from short circuits and to comply with safety standards.
Q: Does the battery require ventilated enclosures? A: LiFePO4 does not emit hydrogen under normal operation and doesn’t need the venting required by flooded lead-acid batteries. Despite that, we still secure it in an accessible, well-mounted space and follow manufacturer installation guidance.
Final Recommendation
We find the LiTime12.8V 320Ah Mini LiFePO4 Battery to be a strong option for users who need high usable capacity in a limited space, especially RV owners, marine enthusiasts, and off-grid hobbyists. Its combination of long cycle life, Bluetooth monitoring, IP65 durability, and cold-weather protection makes it versatile for many applications.
Before we commit, we recommend verifying continuous discharge specifications with the seller if we plan high continuous loads, confirming charger compatibility (or purchasing a LiFePO4-capable charger/DC-DC converter), and planning expansion carefully if we intend to build larger series/parallel systems. With proper setup, we believe this battery will give reliable, long-term performance and reduce maintenance and replacement costs compared with traditional lead-acid alternatives.
