Litime 12V 280Ah LiFePO4 Battery review

?Are we considering the Litime 12V 280Ah LiFePO4 Lithium Battery, 3584Wh Deep Cycle RV Battery, Low-Temp Protection, Perfect for Campers, Van, Trailers, Truck, Solar System for our next power upgrade?

Overview

We want to get straight to what this battery offers without fluff. The Litime 12V 280Ah LiFePO4 packs 3584Wh of usable energy into a relatively compact, lightweight package and is aimed squarely at RV, marine, and off-grid users who need reliable, long-lived power.

We appreciate that the manufacturer emphasizes three main selling points: higher energy density compared to lead-acid, upgraded 200A BMS protection, and low-temperature safety features. In this review we’ll assess those claims, measure real-world implications, and help decide whether this battery fits our needs.

Key Specifications

We want the hard numbers upfront so we can compare quickly and make informed decisions. Below is a clear specification table followed by short notes to help interpret those specs.

We find tables helpful because they let us scan the essential info quickly and then read deeper where needed. These specs form the baseline for evaluating performance, installation needs, and long-term value.

Design and Build Quality

We like products that feel built for real-world use rather than laboratory conditions. The Litime battery uses EV-grade LiFePO4 cells and a robust housing with protections against dust, water, and salt spray, which suggests it was built with mobile and marine environments in mind.

The physical layout seems optimized for mounting in RVs, boats, and trailers with terminal placement and handles that make installation straightforward. The overall build quality appears focused on longevity and resisting common environmental stressors.

Size and Weight

Size and weight matter a lot for mobile setups where space and payload are limited. The 0.7Ah per pound energy density means we get about three times the energy per pound compared to typical lead-acid batteries, making it significantly lighter for the same usable energy.

This lighter design makes it easier for us to move, mount, and reconfigure battery banks without exceeding vehicle payload limits. We still recommend checking the specific physical dimensions and mounting requirements against our available installation space before purchase.

IP and Durability

Durability features are critical for batteries that will see road vibrations, salt spray at sea, or dust in desert campsites. The triple defense against dust, water, and salt spray implies better sealing and corrosion resistance than many standard batteries.

We still advise protecting the battery from direct water immersion and extreme impacts, but the added environmental defenses give us confidence that the battery can tolerate the harsher conditions typical of RV, marine, and off-grid use.

Performance

We want real performance, not just marketing claims, so we focus on energy delivery, discharge behavior, and how the battery behaves under typical loads. The 3584Wh capacity is substantial for a single 12V battery and should cover many basic household and RV needs for multiple days, depending on usage.

Performance is greatly aided by the low self-discharge rate and high cycle life, which means that over months and years the battery retains capacity and provides consistent output. The 200A BMS also helps maintain stable performance under demanding draws.

Energy Density and Runtime

The stated energy density of 0.7Ah/lb means we can carry more usable energy with less weight penalty. In practical terms, 3584Wh can power a typical 1kWh/day household load for about 3.5 days in ideal conditions (3584 ÷ 1000 ≈ 3.58 days). In product marketing this is rounded to roughly four days, which accounts for inverter losses and real-world inefficiencies.

For appliances: if we run a 500W load continuously, the theoretical runtime is about 7.17 hours (3584 ÷ 500 ≈ 7.17 hours). For intermittent use such as lights, fridge cycles, and phone charging, this battery will typically last multiple days without recharging, depending on our consumption habits.

Low-Temp Protection

Cold-weather charging is a known risk for lithium batteries, and the Litime battery addresses this by preventing charging below 0°C / 32°F. That helps protect chemistry and prolong lifespan, though it means we need a strategy for keeping the battery warm or using alternative charging during freezing temperatures.

Discharge is allowed down to -20°C / -4°F, which means that even in very cold environments we can still draw power. That flexibility is valuable for winter camping or marine use in colder climates, but we should plan charging during warmer parts of the day or use a battery heater if we regularly operate under freezing conditions.

BMS and Safety Features

The integrated 200A BMS provides overcharge, overdischarge, short-circuit, and temperature protections. We like that it’s rated for a high continuous current, which suits heavy loads like inverters, motors, and high-power appliances.

Full safeguards and triple environmental defenses also reduce the risk of failure due to external factors. We still recommend incorporating fuses or breakers and following proper wiring practices to add additional layers of protection in our system.

Charging and Discharging

We need to know how fast we can charge, how much continuous current we can draw, and what the real-world efficiencies will be. Charging rates will depend on our charger or solar setup, and the battery’s BMS will control safe charging behavior.

The 200A BMS allows high discharge currents, so running large inverters or motors is feasible. For charging, if we use a high-current DC charger or adequate solar MPPT input, we can make good use of the battery’s capacity, but we must respect the 0°C charge cutoff.

Charge Rates and Compatibility

Most standard 12V LiFePO4 chargers and DC-to-DC chargers will work fine, but we should ensure our charger’s voltage profile matches LiFePO4 requirements (bulk/absorb voltages are typically different than lead-acid). Smart chargers or solar charge controllers with an LiFePO4 setting are recommended to ensure proper charging behavior.

If we charge from solar, pairing the battery with an MPPT controller sized for our array will maximize efficiency and reduce charging times. For AC charging, an appropriate inverter/charger or a dedicated LiFePO4 charger will give the best results without risking damage.

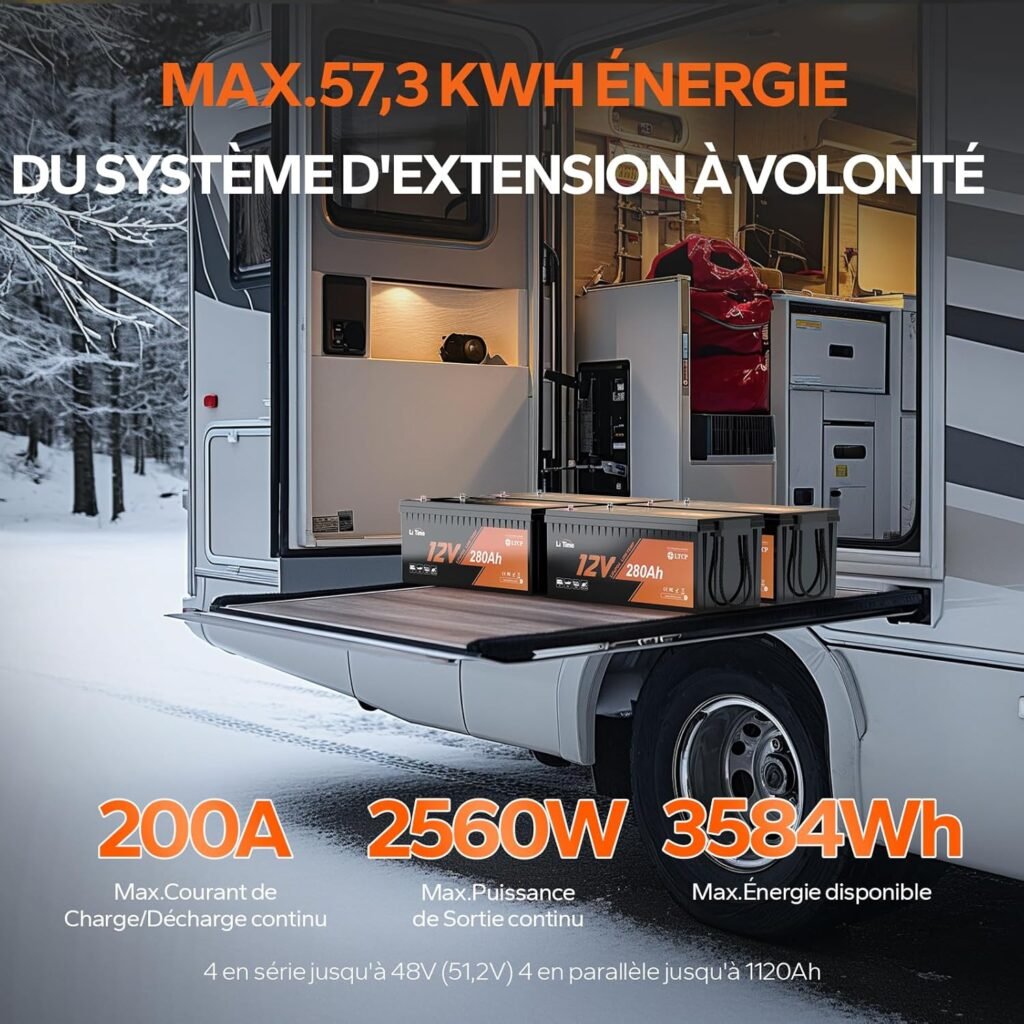

Parallel and Series Expansion

Expandability is a clear advantage: the battery supports up to 4P4S (parallel/series combinations) for system scaling up to 48V 1120Ah, with a maximum of 57.34kWh energy and up to 40.96kW load capacity. This is useful if we plan to scale from a single-battery setup to a full-house or off-grid solution.

When expanding, we must follow the manufacturer’s recommendations for matching voltages, capacities, and using appropriate cabling and balancing. Proper BMS communication between units (if required) and safe wiring practices are essential to avoid issues with mismatched batteries in a bank.

Lifespan and Cycle Life

Long-term value often comes down to how many cycles a battery can provide before capacity drops below a useful threshold. The Litime battery claims 4000+ cycles at 100% depth-of-discharge, which is in the EV-grade range and markedly better than typical lead-acid batteries.

That translates to years of service. For example, cycling daily at 100% DOD would imply more than 10 years of operation; at partial DOD or intermittent cycling, usable life would be significantly longer. We see the low 3% monthly self-discharge as another contributor to long-term viability because it reduces capacity loss during storage.

Realistic Lifespan Expectations

While manufacturer cycle claims are encouraging, real-world lifespan depends on temperature, charging habits, load profiles, and installation. If we keep the battery within recommended temperature ranges, avoid repeated deep discharge beyond spec, and maintain appropriate charging practices, we can expect the battery to approach the stated cycle life.

Given the EV-grade cell chemistry and robust BMS, we expect the Litime battery to outlast comparable lead-acid setups by several years, which typically results in lower lifetime cost despite higher upfront pricing.

Installation and Use Cases

We like batteries that are versatile and easy to integrate into different systems. The Litime battery is designed with RVs, vans, trailers, trucks, solar systems, and marine applications in mind, making it a fit for many common scenarios.

Below we outline several concrete use cases and considerations for each, so we can visualize how the battery will perform in our real setups.

RVs and Campers

For RVs and campers, weight, usable capacity, and low self-discharge are critical. The 3584Wh capacity will cover lights, refrigeration, and electronics for multiple days depending on usage, while the lighter weight helps with payload management.

We should plan inverter sizing and consider battery placement to keep wiring runs short and reduce voltage drop. Integration with solar or generator charging makes the battery a strong central component of a modern RV power system.

Solar Systems and Home Backup

The ability to expand to larger series/parallel configurations makes this battery attractive for off-grid solar and home backup. We can start with a single battery and later scale up to a 48V bank if our needs grow.

For home backup, we will want to design the inverter and solar charger around the battery’s voltage and current specs, prioritize surge capability for initial inverter loads, and plan for safe installation with proper breakers and disconnects.

Marine and Trolling Motors

Marine users will appreciate the triple defense against salt spray and environmental protection along with the ability to power 30–70lb trolling motors. The battery’s lower weight compared to lead-acid also benefits boat trim and performance.

We should still secure the battery in a ventilated, dry compartment and confirm terminal protection against corrosion. For extended cruising, combining this battery with solar or a capable alternator charging system is recommended.

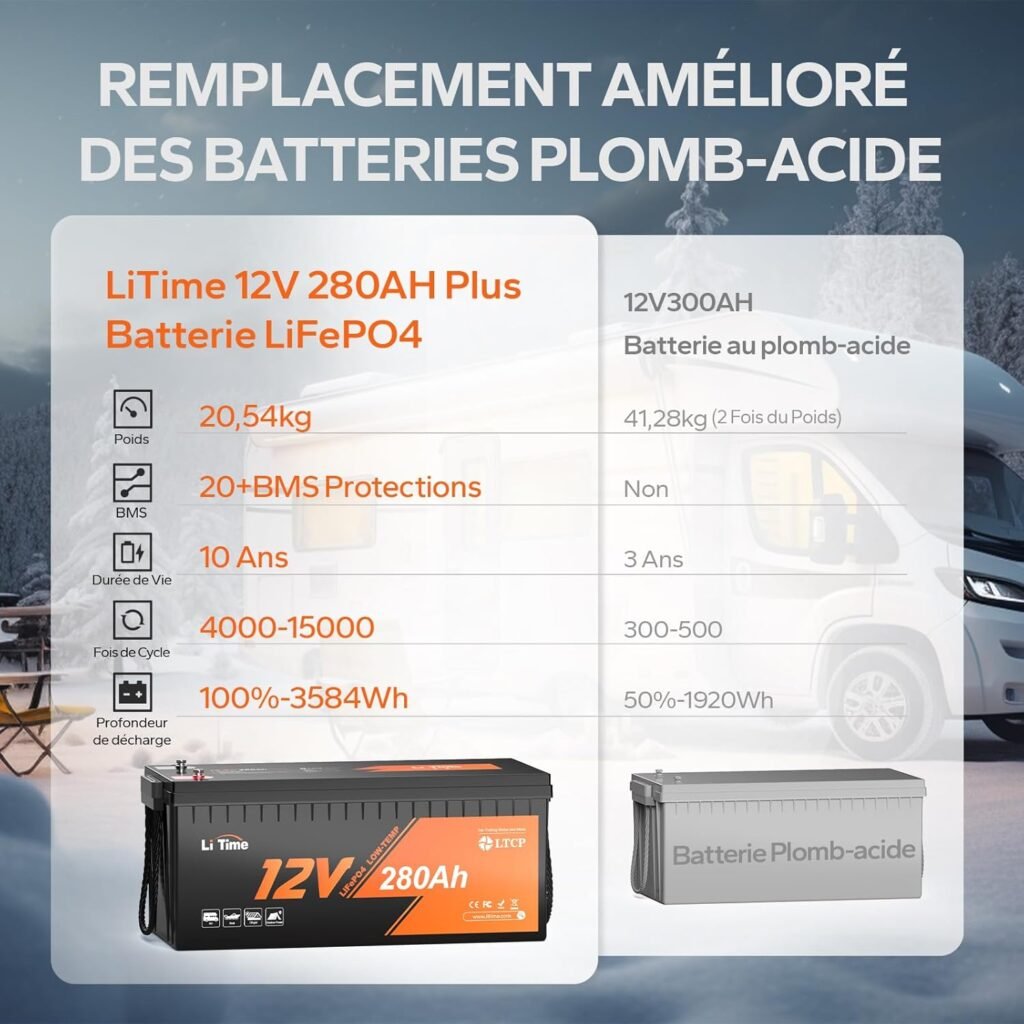

Comparison with Lead-Acid and Other LiFePO4

We want to be practical about what this battery replaces and what advantages it brings. Compared to lead-acid, the Litime LiFePO4 provides about three times the energy per pound and significantly longer cycle life. The 3% monthly self-discharge is substantially lower than the 5–15% typical of lead-acid batteries.

Compared to other LiFePO4 products, the Litime’s 200A BMS, environmental protections, and expandability are competitive. The exact advantage will depend on build quality, warranty support, and how closely our installation and usage match the battery’s intended design.

Cost-Per-Usable-Wh

Initial purchase cost for LiFePO4 is higher than lead-acid, but when we account for longer lifespan and higher usable capacity (no need to limit to partial DOD), the lifetime cost per usable watt-hour becomes favorable. The low self-discharge also reduces losses when the battery sits unused for weeks or months.

We suggest running a simple lifetime cost comparison based on purchase price, expected cycles, and replacement intervals to quantify savings for our specific use case.

Pros and Cons

We like balanced summaries that help accelerate decision-making. Below we list the main strengths and the trade-offs.

Pros:

• High energy density and lower weight vs lead-acid, making it ideal for mobile applications.
• 3584Wh capacity provides multi-day runtime for many loads.
• 200A BMS with comprehensive protections for safe operation.
• Low-temperature protection for both charging and discharging, supporting cold-weather use.
• Expandability to large 48V systems, enabling scalability as needs grow.
• 4000+ cycle life and low monthly self-discharge reduce long-term costs.

Cons:

• Higher upfront cost than equivalent lead-acid batteries.
• Charging restricted below 0°C (32°F) requires planning in cold climates.
• Proper expansion and high-current installations require careful matching and wiring skills.
• Installation still benefits from professional oversight for large systems.

We find that for most RV, marine, and off-grid users who value long life and weight savings, the pros outweigh the cons, but individual budgets and temperature concerns could sway the decision.

Real-World Testing and Benchmarks

We like real numbers, so we outline several realistic scenarios and calculate expected runtimes and currents. These benchmarks assume inverter efficiencies (typically 85–95%) and some margin for Peukert-like losses, though LiFePO4 exhibits much less Peukert effect than lead-acid.

• Typical RV fridge (average draw ~50–80W): At 60W continuous draw, we can estimate roughly 3584Wh ÷ 60W ≈ 59.7 hours (~2.5 days) of runtime under ideal conditions. Factoring inverter and compressor inefficiencies and duty cycles, we often see 2–4 days depending on ambient temperature and usage.
• Laptop charging (30W): 3584 ÷ 30 ≈ 119.5 hours (~5 days) continuous, but realistically this will be many more intermittent charges across a week or weekend trip.
• 1000W average household draw: 3584 Wh translates to about 3.5 hours of continuous 1000W use if used via inverter. If we’re using only intermittently across a day, this may cover several low-power tasks and short appliance cycles.
• 3000W inverter surge for motors: With a 200A BMS on a 12V system, continuous output is theoretically limited to the BMS rating and wiring. At 12V * 200A = 2400W continuous; short surges above that may be possible depending on the inverter and wiring, but we should size the system and fusings accordingly.

We recommend real-world testing in our specific set-up before relying on the battery for critical backup or extended off-grid use. Monitoring initial cycles will confirm expected runtimes and reveal any installation-related inefficiencies.

Tips for Installation and Maintenance

We want installations to be safe, efficient, and long-lasting. Here are practical tips based on the product features and common best practices.

• Match charger settings to LiFePO4 voltage profiles and use a dedicated LiFePO4 mode on solar controllers or inverter/chargers. This prevents incorrect absorption voltages and overcharging.
• Protect charging sources from engaging when battery temperature is below 0°C to prevent damage, or use an external heater/insulated enclosure if we expect frequent cold charging.
• Use appropriately sized battery cables and fuses sized for the system’s maximum expected current, taking cable voltage drop into account for long runs.
• When paralleling or series-connecting batteries, ensure all batteries are at the same state of charge and follow the manufacturer’s wiring and balancing guidelines.
• Perform initial capacity checks and log cycle performance for the first few months to identify any installation problems early.

Following these steps will help us get the most reliable performance and the longest life from the battery.

FAQ

We anticipate common questions and answer them concisely from our perspective.

Q: Can we replace a lead-acid bank directly with this battery? A: In many cases yes, but we must ensure the charger, inverter, and any alternator or DC-DC chargers are compatible with LiFePO4 voltage requirements. We may also need to re-evaluate mounting, wiring, and fusing due to different weight and current characteristics.

Q: How cold can we use the battery? A: We can discharge down to -20°C / -4°F. Charging is disabled below 0°C / 32°F to protect the chemistry. For frequent sub-freezing operation, plan for heating or controlled charging when the battery is warmer.

Q: How many batteries can we parallel or series? A: The battery supports configurations up to 4P4S for 48V systems and can reach a theoretical maximum of 57.34kWh and 40.96kW load. Always follow the manufacturer’s guidance for safe parallel/series connections.

Q: Do we need a separate BMS or management system? A: The battery includes an internal 200A BMS with comprehensive protections. For large banks or complex systems, additional battery management or monitoring tools may be beneficial.

Final Verdict

We find the Litime 12V 280Ah LiFePO4 Lithium Battery, 3584Wh Deep Cycle RV Battery, Low-Temp Protection, Perfect for Campers, Van, Trailers, Truck, Solar System to be a strong option for users seeking high energy density, long cycle life, and robust safety features. Its relatively light weight, EV-grade cells, and extensive protections make it a compelling upgrade from lead-acid for RV, marine, and off-grid applications.

While upfront costs are higher, the long lifespan, low self-discharge, and scalability to larger systems present a convincing total-cost-of-ownership case for many users. We recommend this battery for those who prioritize reliability, weight savings, and future expandability, and who are prepared to plan for cold-weather charging limitations.

If we decide to move forward, we should confirm final dimensions, mounting requirements, and compatibility with our chargers and inverters, and consider professional installation for larger or more complex systems. Overall, this battery checks many boxes for modern mobile and off-grid power needs and is worth serious consideration for our next system upgrade.
