DR.PREPARE 12V 100Ah LiFePO4 Battery review

? Are we ready to see whether the DR.PREPARE 12V 100Ah LiFePO4 Lithium Battery is the right upgrade for our RV, marine, solar, or off-grid system?

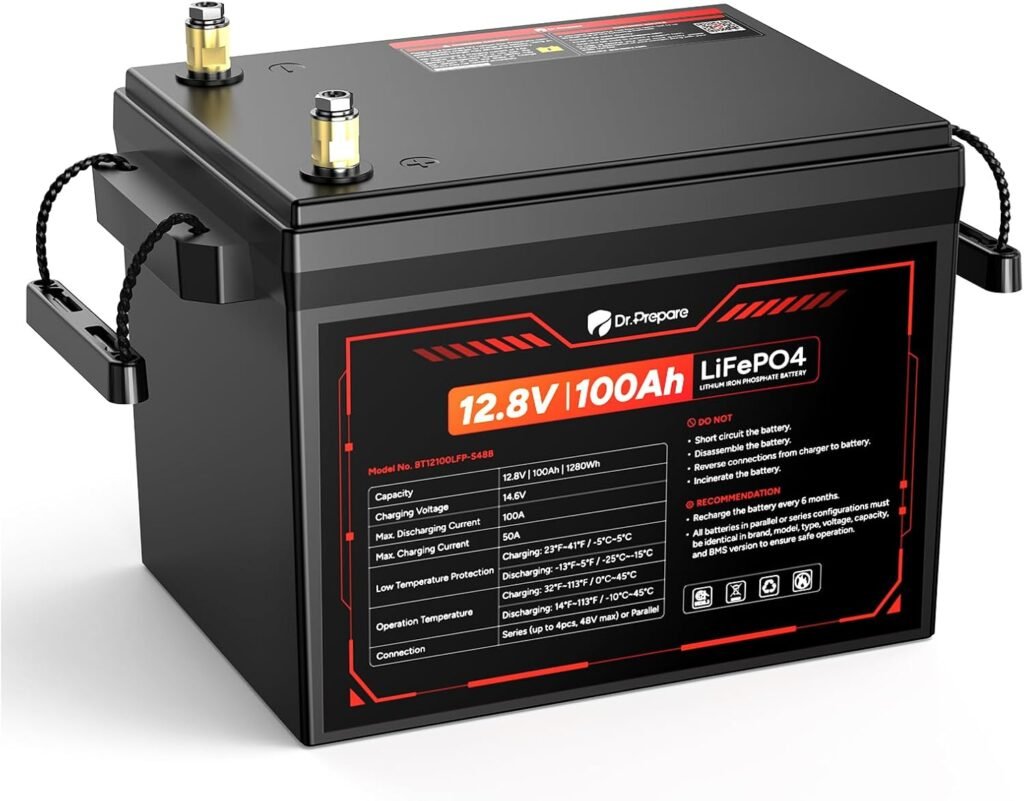

Product Overview

We’ve found that the DR.PREPARE 12V 100Ah LiFePO4 Lithium Battery, 1280Wh Deep Cycle Lithium Iron Phosphate Battery with 100A BMS is positioned as a compact, high-performance replacement for lead-acid batteries in many mobile and stationary applications. The unit promises a reduced footprint, lighter weight, integrated BMS protections, and the ability to scale in series or parallel for larger systems.

What the name tells us

The full product name gives important clues: it’s a 12V nominal LiFePO4 battery with 100Ah capacity, rated at 1280Wh energy, and includes a 100A battery management system (BMS). We appreciate that the name already highlights core specs we care about: chemistry (LiFePO4), capacity (100Ah), energy (1280Wh), and built-in protections (100A BMS).

Key Specifications

We like having a clear list of the most relevant specs so we can compare apples to apples when shopping or planning installs. Below is a compact breakdown of the most critical numbers and physical attributes for quick reference.

We find that the above table helps us quickly decide fitment and system planning needs, particularly when comparing footprint and weight against other battery types.

Design & Build Quality

We appreciate a compact and robust design, and this battery makes space efficiency a key selling point. The DR.PREPARE unit measures 11.81” × 7.6” × 8.94”, taking up only 0.47 cubic feet, and is advertised as about 8.7% smaller than typical lithium batteries with similar specs.

Size, weight and footprint

At 28.5 lbs the battery is noticeably lighter than comparable sealed lead-acid (SLA) batteries, which often weigh 2–3 times more for the same usable energy. The smaller footprint is a clear advantage when space is constrained in RVs, boats, or compact solar enclosures.

Terminals and physical features

The battery uses two M8 terminals and a top-mounted layout that keeps cabling straightforward for most installs. We like that the unit preserves common terminal types for easy integration, but we also recommend using proper torque and marine-grade hardware for corrosive environments.

Performance & Power Delivery

Knowing how long the battery will run our appliances and how much current it will supply is central to system design, and this model offers respectable numbers for many off-grid and mobile applications. With a 100A continuous discharge rating and 1280Wh of stored energy, the battery supports a wide range of loads from low-power electronics to moderate inverter-driven appliances.

Capacity and usable energy

The battery’s rated 1280Wh (12.8V × 100Ah) is the energy pool we can draw from. If we apply a conservative Depth of Discharge (DoD) strategy — for example using 80% regularly — we still get about 1,024 Wh usable; if we use 100% DoD occasionally, we can access the full 1280Wh but we should balance lifecycle effects.

Discharge performance and real-world runtimes

At a continuous maximum discharge of 100A, the battery can theoretically deliver up to about 1,280W continuously (12.8V × 100A), although actual inverter and wiring losses reduce that. For example, a 300W AC load through an 85% efficient inverter will draw ~350W DC and run roughly 3.5–3.7 hours at 100% DoD, and closer to 2.8–3 hours if we stick to an 80% DoD target.

Charging behavior and limits

We should charge the battery with a LiFePO4-compatible charger or a solar charge controller set to LiFePO4 profile. The manufacturer recommends a charging current of 20A and allows up to 50A maximum; charging should follow a proper CC-CV (constant current, constant voltage) profile with a charge cutoff voltage consistent with LiFePO4 chemistry (we typically aim for 14.2–14.6V max, with no long-term float required).

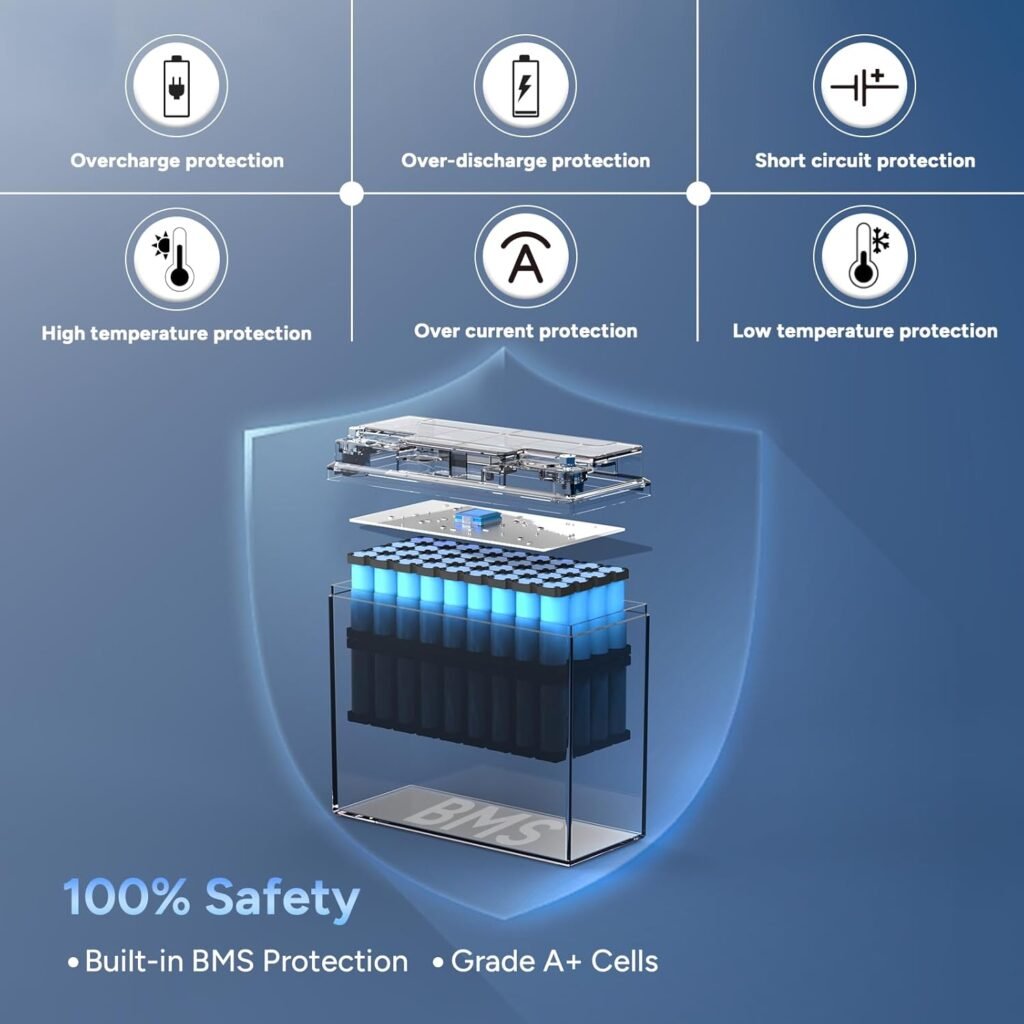

Battery Management System (BMS)

We like integrated BMS systems because they reduce setup complexity and add critical safety features without separate external hardware. This battery’s BMS handles a range of protections that are useful both for longevity and for protecting connected equipment.

Protections included

The BMS protects the battery from over-charge, over-discharge, over-current, and short-circuit events. These protections help prevent catastrophic failures and are especially useful when the battery is used by non-technical users who might otherwise risk misconfiguring chargers or loads.

Temperature cut-off and behavior

There is a smart low- and high-temperature cut-off to prevent charging or discharging when temperatures are outside safe operating windows. We note that many LiFePO4 BMS designs block charging below freezing (0°C / 32°F), and that charging often resumes automatically when the battery warms to a safe threshold — this is important for cold-weather deployments.

Series and Parallel Configuration

We plan systems of many sizes, from a single battery in a camper to large home storage banks, and this model supports flexible wiring to meet both needs. The manufacturer says the batteries can be wired in series and parallel up to 16 units combined, allowing configurations such as 48V banks or very large kWh capacities.

Building a 48V bank or large kWh bank

To build a 48V battery bank we typically wire four 12.8V units in series. For large capacity at 12.8V, we wire multiple units in parallel — for instance, four batteries in parallel would yield a nominal 12.8V 400Ah (≈5.12 kWh) bank. The product states that up to 16 batteries can be used for a 20.48 kWh system (12.8V × 100Ah × 16 = 20.48 kWh nominal).

Best practices for connecting multiple batteries

When wiring batteries in series and parallel, we make sure all modules are the same model, age, and state of charge, and we use symmetrical cable lengths for balanced current distribution. We also recommend pre-charging and careful commissioning, plus periodic checks to ensure the bank remains balanced and that the BMS communication (if present externally) is configured.

Charging Recommendations and Notes

Using the right charger and settings is one of the most important factors in battery longevity and performance, and incorrect chargers can permanently damage LiFePO4 cells. We always use a LiFePO4-specific charge profile or a smart solar charge controller set to the LiFePO4 battery type.

Voltage and current guidance

A common recommended charge voltage for LiFePO4 batteries is 14.2–14.6V for the constant-voltage phase; we suggest targeting about 14.4V as a safe standard. The recommended charging current is 20A, with a maximum allowed charge current of 50A; we prefer to charge at 0.2C (20A) for a balance of speed and battery health.

Chargers and solar setups

If we are using solar, we set the MPPT or PWM charge controller to LiFePO4 profile and ensure the array and controller can safely limit current to the battery’s supported max. When using AC-to-DC chargers, we select units that explicitly support LiFePO4 chemistry; avoid generic lead-acid chargers as they may apply incorrect voltages or have improper float behavior.

Installation Tips & Practical Considerations

We aim for a safe, tidy, and efficient install that maximizes battery life and keeps maintenance low, so we follow a few practical tips. Mount the battery in a well-ventilated, dry, secure position; use proper cable sizes for the expected currents and torque terminals to manufacturer specs.

Wiring and fusing

Use appropriately sized cables to handle the maximum continuous current and fuse at the battery positive terminal to protect against short circuits. We typically install an appropriately sized DC breaker or fuse within inches of the battery positive terminal to protect both wiring and equipment.

Location and mounting

Avoid mounting batteries in confined spaces with poor ventilation or exposure to temperature extremes; LiFePO4 likes stable moderate temperatures for best life. For marine environments, we use corrosion-resistant hardware and protect terminals from salt spray, while in RVs we secure the battery against vibration and movement.

Safety & Maintenance

Safety is non-negotiable for batteries, and modern LiFePO4 chemistry is safer than many alternatives but still requires responsible use. The integrated BMS mitigates many hazardous conditions, but we still follow safe handling guidelines and routine inspection.

Handling and routine checks

We visually inspect terminals, cable connections, and the battery housing periodically for corrosion, loose bolts, or damage. We also monitor voltage and state-of-charge periodically, and verify that any connected BMS indicators or remote monitors are functioning.

Storage best practices

When storing the battery long-term, keep it at roughly 40–60% state of charge in a cool, dry location; avoid fully charged storage at high temperatures. If storing in cold conditions, bring the battery into a moderate temperature range before charging if the BMS prevents charging at low temperatures.

Real-World Performance Examples

We like concrete run-time examples to help size batteries for real-life needs, so we’ve run through several scenarios to show what 1280Wh can do in practice. These numbers include conservative assumptions for inverter efficiency and DoD to give realistic expectations.

Example 1: Running a 12V RV fridge (≈55W)

A 12V refrigerator drawing about 55W continuous can theoretically run about 23 hours on 1280Wh at 100% DoD. If we use an 80% DoD to preserve battery health, runtime is closer to 18–19 hours.

Example 2: Powering a 300W inverter load

For a 300W AC load through an inverter at ~85% efficiency, the DC draw is roughly 350W, so the battery will run that load about 3.5–3.7 hours at full capacity. Sticking to 80% DoD reduces usable runtime to about 2.8–3.0 hours.

Example 3: Running LED lights and electronics

Lower-power loads like LED lighting (30W) plus miscellaneous electronics (50W) totaling 80W would run for 16 hours at full DoD, and about 12.8–13 hours if we limit discharge to 80%.

Cold and Hot Weather Performance

Temperature affects both performance and safety, and LiFePO4 batteries behave differently than lead-acid under extremes. The built-in temperature cut-offs will prevent charging or discharging outside safe ranges, which preserves cells but may restrict use in very cold climates.

Cold weather

We typically see BMS-enforced charging cut-off below freezing; as a result, if we plan to use the battery in sub-zero climates we provide heaters or keep the battery in an insulated, temperature-controlled compartment. Discharging at cold temperatures is usually allowed but capacity and instantaneous current delivery can be reduced until the battery warms.

Hot weather

High ambient temperatures accelerate cell aging, so we avoid prolonged exposure above recommended operating temperatures and ensure adequate ventilation. The BMS will usually limit charging when internal temperatures exceed safe ranges, which helps prevent damage but can interrupt fast-charging in hot environments.

Comparison: LiFePO4 vs Sealed Lead-Acid (SLA)

Switching from SLA to LiFePO4 is a common upgrade path, and we find the DR.PREPARE battery to exemplify typical LiFePO4 benefits. We get a much higher usable DoD, far lower weight, and a longer cycle life compared to SLA, which translates to lower lifecycle cost in many cases.

Key advantages over lead-acid

LiFePO4 offers higher usable capacity (we can regularly use 80–100% DoD vs ~50% for SLA), much faster charging, lower weight, and a steadier voltage profile during discharge. Those features make LiFePO4 better for deep-cycle applications like solar storage, RV house batteries, and marine house banks.

Considerations and cost trade-offs

Initial purchase price for LiFePO4 is higher than SLA, but the longer cycle life and less frequent replacements typically offset that premium over time. We also need to ensure chargers and controllers are LiFePO4-compatible, which may mean replacing legacy chargers set up for lead-acid.

Pros and Cons Summary

We like summaries that frame pros and cons succinctly so we can weigh benefits against potential downsides quickly. The following lists capture the major strengths and potential limitations we’ve encountered with this battery model.

Pros:

• Compact footprint (0.47 ft³) and lighter weight (28.5 lbs), ideal for mobile applications.
• Integrated 100A BMS with multiple protections including temperature cut-off.
• LiFePO4 chemistry provides long cycle life, stable voltage, and deep discharge capability.
• Flexible wiring: supports series and parallel combinations up to a large bank size.
• Clear charging guidance and a recommended charge current for safe operation.

Cons:

• Requires LiFePO4-compatible chargers/charge controllers—legacy lead-acid chargers may damage the battery.
• Charging may be restricted by BMS at low (freezing) temperatures; additional heating or insulation may be required in cold climates.
• Not suitable as a cranking/starting battery for car engines or heavy starter motors.
• Upfront cost higher than comparable lead-acid batteries (though lifecycle costs are usually better).

We find these pros and cons help us realistically assess whether this battery fits our intended use.

Maintenance, Care, and Longevity

We want batteries that last and that impose minimal maintenance, and LiFePO4 is generally lower-maintenance than flooded lead-acid. Routine checks and adherence to charge recommendations are the main maintenance items we need to stay on top of.

How to maximize lifespan

We recommend keeping charge currents within recommended ranges, avoiding prolonged float at high voltages, reducing exposure to extreme temperatures, and avoiding frequent deep discharges beyond the battery’s design expectations. With sensible usage we can expect several thousand cycles from LiFePO4 chemistry, though exact numbers vary by depth of discharge and operating conditions.

Troubleshooting tips

If the battery refuses to charge in very cold weather, it may be the BMS preventing charge to protect the cells; warm the battery to a safe temperature and try again. If capacity seems to degrade unusually quickly, verify charger settings, confirm no parasitic loads are draining the pack, and check for loose or corroded connections.

Frequently Asked Questions

We’ve collected FAQs that typically come up when considering a LiFePO4 battery for off-grid, RV, marine, or home energy use. Each answer is concise but practical.

Can we use this battery to start a vehicle engine?

No — the manufacturer specifically advises that the 12V 100Ah LiFePO4 battery is intended as an energy storage (deep-cycle) battery, not a starter or cranking battery. Starting loads require very high CCA and different construction; for engine starting we should use a dedicated starter battery designed for that purpose.

Can we wire multiple batteries in parallel?

Yes — the battery supports parallel connections, and we can wire several in parallel to increase capacity at 12.8V. We make sure to use identical batteries (same model, age, SOC) and proper cabling and fusing to avoid imbalance or stress.

How many batteries do we need for a 48V system?

We typically wire four 12.8V units in series to make a nominal 51.2V (often referred to as 48V class) bank. For larger capacity at 48V, we add parallel strings of four batteries each, ensuring careful balancing and consistent charging.

What charger voltage should we use?

Use a charger with a LiFePO4 profile, typically with a constant-voltage target around 14.2–14.6V for a 12.8V battery pack. Avoid lead-acid charging profiles and excessive float voltages that can overcharge or stress LiFePO4 cells.

Is the battery safe in marine environments?

Yes, LiFePO4 chemistry is inherently safer than many alternatives and less prone to thermal runaway, and the integrated BMS adds more safety. For marine use we still recommend corrosion-resistant hardware and proper sealing/protection from salt spray.

How long will the battery last?

Lifespan depends on usage patterns; with moderate cycle depths (around 80% DoD) and responsible charging, we often expect multiple thousand cycles from LiFePO4 cells. Environmental factors such as temperature and charging habits play a large role in actual lifetime.

What happens if we fully discharge the battery?

The BMS protects against severe over-discharge and we can usually recover the battery by recharging it within safe windows, but repeated deep discharges may reduce cycle life over time. If we experience frequent deep discharges, we consider a larger bank or reducing loads to improve longevity.

Can we use this with a solar charge controller?

Yes — set the solar charge controller to a LiFePO4 battery profile and ensure current is limited to safe levels for the battery. MPPT controllers work well to optimize solar harvest while respecting the battery’s charge limits.

Practical Sizing Examples and a Quick Calculator

We find it helpful to walk through a few examples and provide a simple method for estimating runtime so we can size batteries for our own needs.

• Step 1: Add up continuous loads in watts (e.g., fridge 55W + lights 30W = 85W).
• Step 2: Divide battery Wh by load watts: 1280 Wh / 85 W ≈ 15.06 hours at 100% DoD.
• Step 3: Adjust for desired DoD (80% DoD: 1280×0.8 = 1024 Wh usable; 1024 / 85 ≈ 12.05 hours).
• Step 4: Factor inverter inefficiency for AC loads (divide load by inverter efficiency or multiply runtime by efficiency).

We recommend building in a buffer for cloudy solar days, unexpected loads, and to avoid deeply cycling the battery regularly if maximum lifetime is important.

Final Verdict and Recommendation

We feel that the DR.PREPARE 12V 100Ah LiFePO4 lithium battery is a strong contender for anyone upgrading from lead-acid or building a compact, scalable energy storage system for RV, marine, or small off-grid applications. The combination of compact size, reasonable weight, integrated 100A BMS protections, and the ability to stack units in series/parallel for larger banks gives us a flexible, lower-maintenance energy solution.

We recommend this battery for users who need dependable deep-cycle performance, want a lighter and smaller pack than SLA, and are prepared to use LiFePO4-compatible chargers and controllers. If cold-weather charging or engine cranking is a core use case, plan for additional measures or different battery types — otherwise, we see this model as a practical and effective upgrade for most house-power applications.
