5 Best 12V 20Ah LiFePO4 Batteries for E-Bikes in 2025 — Long Range, Fast Charging, Reliable Power

We’ve picked five standout 12V 20Ah LiFePO4 options for e-bikes: SEFEPODER SP1220M 2-Pack (40A BMS, 20A continuous, 10A fast charge), SP-1220-Mini 2-Pack (compact fit), SP1220M 40A BMS variant (ultralight), ECO-WORTHY 20Ah (3000+ cycles, certified), and an IP67 20Ah (waterproof, 5000+ cycles). All support up to 4S builds, offer ~240Wh, and include robust BMS protection. We’ll also cover sizing, chargers, cycle life, and series/parallel tips so you can choose with confidence.

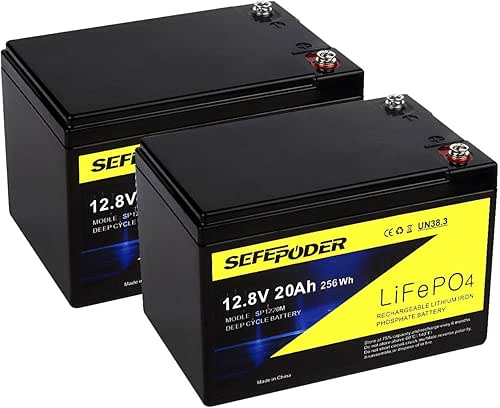

12V 20Ah LiFePO4 Deep Cycle Battery 2-Pack with Built-in 40A BMS

Looking for a lightweight, long-cycle battery you can drop into tight e‑bike or scooter compartments? We like this 12V 20Ah LiFePO4 2‑pack (SP-1220-Mini) with a built‑in 40A BMS. Each unit measures 5.94 x 3.85 x 3.74 inches and weighs just 7.76 lb—about a third of comparable lead‑acid. Expect 4000+ cycles, strong energy density, and safe chemistry that resists overcharge, overdischarge, overcurrent, and short circuits.

It’s series/parallel capable (up to 4S), supports 10A fast charging, 20A continuous discharge, and 3C pulse. Use a LiFePO4 charger; SLA automatics may undercharge. Users report accurate capacity, compact fitment, and longer runtime with a 12‑month warranty.

Best For: Riders and DIYers needing compact, lightweight 12V power with long cycle life for scooters, e-bikes, ride-on toys, kayaks, RV/solar, or off-grid accessories.

Pros:

• Long lifespan (4000+ cycles) with safe LiFePO4 chemistry and built-in 40A BMS protection.
• Lightweight and compact (5.94 x 3.85 x 3.74 in; 7.76 lb) yet supports 20A continuous discharge and 10A fast charging.
• Series/parallel capable (up to 4 in series) for scalable 12–48V systems.

Cons:

• Requires a dedicated LiFePO4 charger; standard SLA chargers may undercharge.
• 20A continuous output may be insufficient for high-draw motors or inverters.
• Some devices’ charge indicators may not align with LiFePO4 voltage curves, causing misleading readings.

12V 20Ah LiFePO4 Deep Cycle Battery (2 Pack)

E-bike commuters who want a lightweight, modular setup will appreciate SEFEPODER’s 12V 20Ah LiFePO4 Deep Cycle Battery (2 Pack) with a built-in 40A BMS and M5 screw terminals. We like the compact SP1220M footprint (5.94 x 3.81 x 3.91 in) and low 7.92 lb weight—about a third of lead-acid. Each pack supports 20A continuous output, 10A fast charging, and 3C pulse, with 4S max for 48V builds. The BMS guards against overcharge, overdischarge, overcurrent, and short circuits. Expect 4,000+ cycles, no memory effect, and solid thermal tolerance. Use a LiFePO4 charger; SLA chargers may undercharge. Includes two batteries and a 12‑month warranty.

Best For: E-bike commuters, RV/camping users, and DIY off-grid builders who need lightweight, modular 12V power with option to scale up to 48V.

Pros:

• Lightweight and compact (7.92 lb, 5.94 x 3.81 x 3.91 in)—about 1/3 the weight of lead-acid
• Long lifespan (4000+ cycles) with 40A BMS protection and 20A continuous output
• Flexible setup: M5 screw terminals, up to 4 in series (48V builds), 10A fast charge, 3C pulse

Cons:

• Requires a LiFePO4-specific charger; SLA chargers may undercharge
• 20A continuous output may be limiting for high-draw applications
• Max 4S series limit; larger systems may need different capacity or configuration

12V 20Ah LiFePO4 Deep Cycle Battery with 40A BMS

Need a compact, featherweight pack with real protection? We like the SEFEPODER SP1220M 12V 20Ah LiFePO4 with a built‑in 40A BMS. At just 3.98 lb and 5.94 x 3.81 x 3.66 inches, it’s easy to mount on e-bike trailers or auxiliary packs. Expect high energy density, 4000+ cycles, and no memory effect—about one-third the weight of comparable lead-acid.

The 40A BMS guards against overcharge, overdischarge, overcurrent, short-circuit, and heat. You’ll get up to 20A continuous discharge, 2C pulse, and 10A fast charging. Wire up to four in series, or parallel identical units. Use a LiFePO4 charger. Includes a 12‑month warranty.

Best For: Users needing a compact, lightweight 12V power source with robust protection for off-grid, RV, kayak, small mobility, or electronics projects, and who want long cycle life and easy series/parallel scalability.

Pros:

• Very light and compact (3.98 lb; 5.94 x 3.81 x 3.66 in) with 4000+ cycles and no memory effect
• Built-in 40A BMS for overcharge/overdischarge/overcurrent/short-circuit/thermal protection
• Supports up to 4 in series or parallel; 20A continuous discharge, 2C pulse, and up to 10A fast charging

Cons:

• Requires a LiFePO4-specific charger; standard SLA chargers may undercharge
• Some user reports of slight capacity variance and dimensional differences—verify fit before purchase
• 20A continuous output may be insufficient for high-draw applications beyond brief pulses

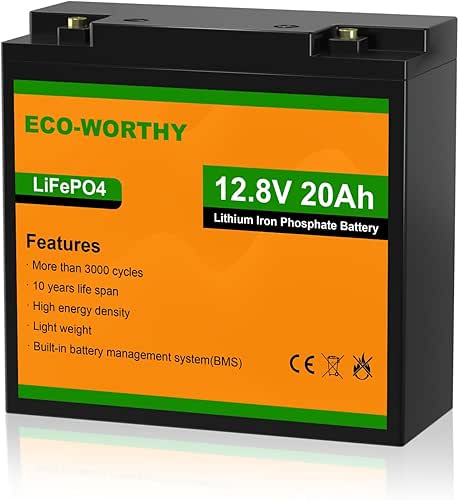

ECO-WORTHY 12V 20Ah LiFePO4 Lithium Battery with BMS

For riders who prioritize safety and cycle life, the ECO-WORTHY 12V 20Ah LiFePO4 with built-in BMS stands out with 3000+ deep cycles and certifications like UN38.3, UL 2271, and CE. We like its 10-year lifespan, lightweight 4.85–5.73 lb build, and consistent power with minimal voltage drop. The BMS guards against overcharge, over-discharge, over-current, and short-circuit while balancing cells.

It’s flexible: run up to four in series or scale capacity with unlimited parallel units. Users report strong performance in fish finders, trolling motors, portable rigs, and DIY solar. Dimensions are 3.03 x 7.17 x 6.69 in. Reviews trend positive (~4.4/5).

Best For: RVers, anglers, and DIY off-grid users who want a lightweight, safe, long-life 12V battery that can be expanded in series or parallel for flexible power needs.

Pros:

• 3000+ deep cycles and ~10-year lifespan; far outlasts typical lead-acid (300–400 cycles)
• Built-in BMS for overcharge, over-discharge, over-current, short-circuit protection and cell balancing
• Lightweight (4.85–5.73 lb) with consistent power delivery and minimal voltage drop; certified UN38.3, UL 2271, CE

Cons:

• 20Ah capacity may be insufficient for high-demand loads without adding more batteries
• Higher upfront cost than comparable-capacity lead-acid options
• Series use limited to 4 identical batteries; warranty specifics may require checking the product page

12V 20Ah LiFePO4 Lithium Battery (IP67, 5000+ Cycles, Built-in BMS)

Looking for a compact, waterproof pack that just keeps going? We like the 12V 20Ah LiFePO4 with IP67 sealing, 5,000+ deep cycles, and a built-in 20A BMS. It’s light at about 5.9 lb, delivers superior energy density, and holds a charge with low self-discharge for up to a year.

For e-bike accessories or auxiliary power, it handles continuous 10A discharge, protects against overcharge, over-discharge, over-current, and shorts, and needs no maintenance. Charge at up to 10A with a LiFePO4 charger, MPPT solar, or generator. Scale in series/parallel (up to 51.2V 80Ah). It’s also great for RVs, kayaks, fish finders, and off-grid camping.

Best For: Outdoor enthusiasts, anglers, and off‑grid users who need a compact, waterproof 12V power source with long lifespan and easy expandability for accessories and small systems.

Pros:

• 5,000+ deep cycles with LiFePO4 chemistry and built‑in 20A BMS for robust protection
• IP67 waterproof, lightweight (~5.9 lb), and low self‑discharge for up to a year of storage
• Flexible expansion (series/parallel up to 51.2V 80Ah) and compatible with LiFePO4 chargers, MPPT solar, or generators

Cons:

• Continuous discharge limited to 10A, not ideal for high‑draw devices or starters
• Requires a compatible LiFePO4 charger; some legacy 12V chargers may not work properly
• Higher upfront cost than lead‑acid alternatives despite better lifecycle value

Factors to Consider When Choosing 12V 20AH Lifepo4 Batteries for Electric Bikes

As we choose a 12V 20Ah LiFePO4 for our e-bike, we’ll weigh capacity and voltage against real-world range and performance. We’ll check the BMS protection features, weight and dimensions, charging compatibility, and the cycle life rating to match our riding needs. Let’s use these criteria to identify batteries that charge fast, last long, and fit our setup.

Capacity and Voltage

Why does capacity and voltage matter so much? Because they determine how far we ride and how our e-bike electronics behave. A 12V 20Ah LiFePO4 pack holds about 240Wh (12V × 20Ah), which directly translates to longer run time at the same load. If we step up Ah, we extend range, assuming the same discharge rate and efficiency.

LiFePO4 cells sit around 3.2–3.3V each; four in series deliver roughly 12.8–13.2V nominal, ideal for “12V” systems. That stable voltage supports consistent performance across the discharge curve. Remember, 20Ah reflects capacity at moderate draw; heavy acceleration or cold weather can trim usable energy.

We can scale systems: series boosts voltage, parallel increases Ah. Up to four identical 12V units can be combined while preserving 12V nominal where needed.

BMS Protection Features

Curiously, the smartest 12V 20Ah LiFePO4 packs aren’t just about cells—they’re about the BMS that protects them. We should look for a built-in BMS that guards against overcharge, overdischarge, overcurrent, and short circuits, keeping the pack safe during both charging and riding. The best units coordinate current flow, respecting typical specs like 10A fast charging and 20A continuous discharge so controllers and chargers play nicely.

Equally important, the BMS should balance cells, keeping voltages uniform across the series string to preserve capacity and cycle life. If we plan to expand, confirm the BMS supports series/parallel use—many allow up to 4 in series—and actively monitors each group to avoid imbalances. In harsh heat, smart BMS logic limits or cuts current, preventing thermal runaway and premature wear.

Weight and Dimensions

Footprint matters when we’re mounting a 12V 20Ah LiFePO4 on an e‑bike. We need a pack that fits our frame triangle, rack, or downtube without crowding cables or pedals. Most 12V 20Ah units land between 3.9 and 7.9 pounds; lighter options ease handling, while heavier ones often include robust cases, terminals, or integrated BMS hardware.

Dimensions typically sit in the 3.0–6.0 inch range on one or more sides, with lengths around 5.9–7.2 inches. That compactness—versus bulkier lead‑acid equivalents—lets us tuck the battery into tighter spaces and maintain clearance.

We also consider expandability. These small housings make single‑unit installs simple, and they enable clean parallel or series layouts for alternative voltages. Measure twice, including brackets and padding, before committing.

Charging Compatibility

With size sorted, we need to match the pack to the right charger. We should use a LiFePO4-specific charger; automatic SLA models often stop early and won’t fully top off LiFePO4 cells. Verify the charger’s constant-voltage target suits a 4S pack—typically up to 14.6V—and that its charge profile is designed for LiFePO4 termination.

Let’s confirm BMS compatibility. The charger must respect the pack’s limits and any communication requirements, supporting up to 10A fast charge while the battery handles 20A continuous discharge on the bike. If we wire multiple 12V packs in series or parallel, we must ensure the charger’s voltage window and current output match the combined configuration.

Finally, beware “lithium” chargers with different termination logic; monitor first charges to prevent overcharge.

Cycle Life Rating

How long will a 12V 20Ah LiFePO4 pack really last on an e-bike? We should read the cycle life rating closely. Many 12V 20Ah packs advertise 4000+ cycles, and some claim 5000+ under ideal conditions. That’s far beyond typical lead-acid. Still, cycle life depends on how we use the battery.

Depth of discharge is key. If we keep DoD around 80% or less, we can extend usable cycles and preserve capacity. A robust BMS also matters; it safeguards against overcharge, overdischarge, and overcurrent events that accelerate degradation.

Real-world results vary. High-rate discharges, frequent full-depth cycling, and extreme heat or cold will cut the cycle count below spec. When comparing packs, weigh rated cycles alongside BMS quality and your riding conditions.

Conclusion

We’ve put five standout 12V 20Ah LiFePO4 batteries through their paces, and they deliver the range, reliability, and fast charging e-bike riders need. What sticks with us is this: at 3,000 cycles, riding five times a week, you’re looking at over 11 years of steady power—imagine thousands of commutes without a hiccup. Pair the right BMS with IP67 durability and you’ll charge faster, ride longer, and worry less. Let’s pick the pack that matches your miles.
