48V 105Ah Mini Lithium Golf Cart Battery review

Have you been searching for a compact, high-performance battery to upgrade your golf cart or power your off-grid toys?

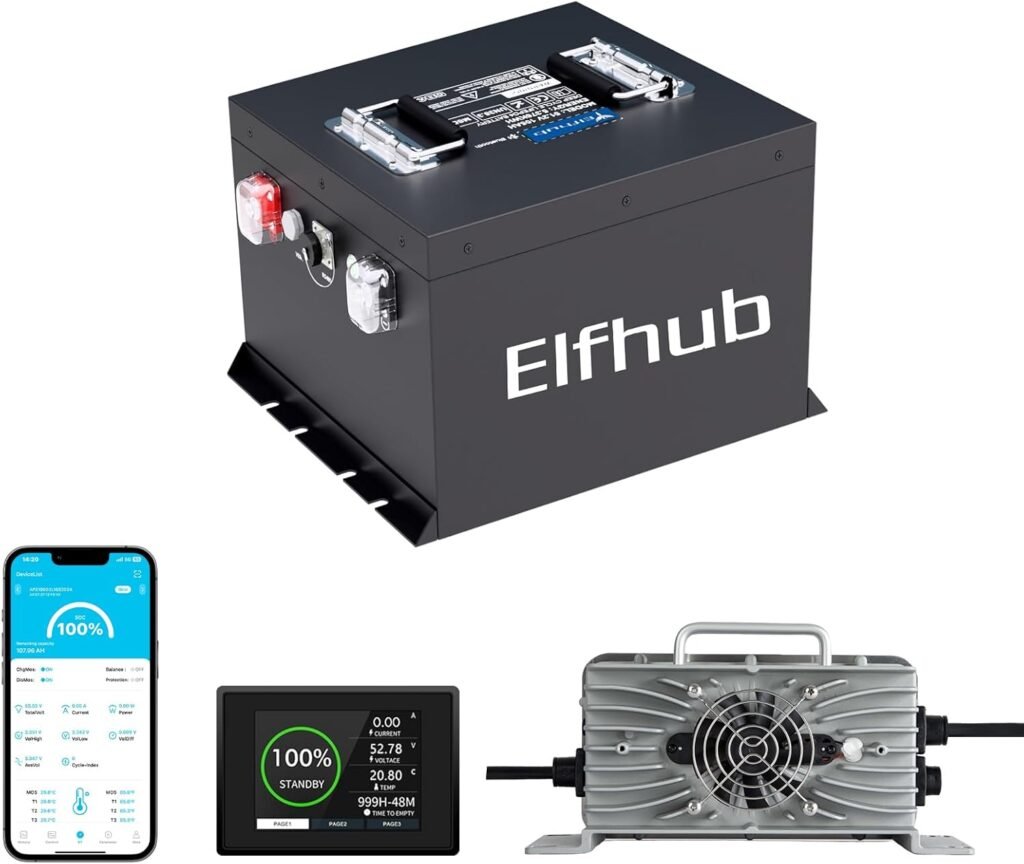

Product Overview: 48V 105Ah Mini Lithium Golf Cart Battery, Built-in 200A BMS, Max 10.24KW Power Output, 6000+ Cycles Rechargeable LiFePO4 Battery, with 58.4V 22A Charger, Touch Monitor & APP, Perfect for Golf Carts

You’re looking at a purpose-built LiFePO4 pack designed specifically for light electric vehicles and similar applications. The Elfhub 48V 105Ah mini Lithium Golf Cart Battery combines a small footprint with high power output and modern monitoring features so you can get more runtime without the traditional weight penalty.

Key Specifications

These numbers give you a quick snapshot of the battery’s core capabilities so you can match it to your vehicle or system. Below, the table breaks down the most relevant specs at-a-glance so you can compare them easily.

Design & Build Quality

The unit is built to be both compact and rugged so you can install it into tighter spaces and trust it under normal operating conditions. You’ll find that the case uses high-strength cold-rolled sheet metal which aims to balance mechanical protection and thermal stability.

Size & Weight

You’ll notice how much lighter this lithium pack is compared with traditional lead-acid batteries; it claims to weigh roughly one-third as much. That reduction in weight makes handling and installation easier, and it frees up payload capacity if you’re using it in an RV or small utility vehicle.

Housing & Protection

The housing is fireproof and shockproof, designed to withstand typical bumps and road vibrations you’d encounter in a golf cart or off-road vehicle. With an IP65 rating, you can expect dust-tight performance and protection against water jets, which gives you more confidence in wet conditions.

Installation & Fit

The design is intentionally compact so it can fit where lead-acid packs often won’t, making upgrades straightforward for many cart models. You won’t need complex rewiring in most cases, and the unit’s mounting points and terminals are laid out for practical, installer-friendly access.

Performance

You’ll get a mix of high energy capacity and strong power delivery, which is ideal when you want quick acceleration or sustained hill-climbing performance. The battery’s chemistry and cell quality support consistent discharge behavior and low self-discharge when idle.

Capacity & Energy Density

With 105Ah at 48V, you have about 5.376 kWh available, and because the cells are LiFePO4 Class A, the energy density is significantly higher than lead-acid. This higher energy density is what allows the battery to be physically smaller while storing more usable energy for the same footprint.

Power Output & Current Ratings

You can pull continuous currents up to 200A, with short peaks of 400A for 35 seconds and 600A for 3 seconds—useful for handling brief spikes like steep hill starts. That 10.24 kW max power output means you’ll have far more instantaneous power than many other compact lithium packs, improving acceleration and maintaining speed under load.

Charge/Discharge Behavior

LiFePO4 chemistry gives you a relatively flat discharge curve, so voltage stays more stable throughout most of the usable capacity. The battery is engineered for low capacity loss and low self-discharge, so you’ll see more of the rated capacity available during each use cycle compared with old-school lead-acid packs.

Real-world Range & Runtime

Range depends heavily on your cart’s efficiency, passenger load, terrain, and speed, but the higher usable capacity and lower weight will typically extend runtime by a noticeable margin. In practical terms, you should expect longer daily operation and fewer mid-day recharges compared with lead-acid equivalents.

Battery Management & Safety

You’re getting a battery with a built-in BMS that handles essential protections so you don’t have to worry about the common failure modes that reduce battery life or create hazards. The 200A BMS balances the pack, limits dangerous currents, and provides temperature protections.

Built-in 200A BMS

The integrated 200A BMS manages over-charge and over-discharge protection, over-current limits, and cell balancing, which preserves the pack’s lifespan and prevents many user-induced failure modes. You’ll get peace of mind from automated safeguards built into the battery’s electronics.

Thermal & Short-circuit Protection

The BMS monitors high and low temperatures and will cut charge or discharge paths if thresholds are exceeded to prevent thermal stress. Short-circuit protection is included to guard against catastrophic currents that could otherwise damage the system or wiring.

Durability & Chemical Stability

LiFePO4 has inherently strong thermal and chemical stability compared with other lithium chemistries, so you’ll experience lower fire risk and better long-term stability. The housing and internal layout further enhance mechanical safety and vibration resistance, which is important for mobile use.

Charging

Charging performance is part of what makes the battery convenient for daily use, especially when the included charger is matched to the pack’s specs. Fast recharge times mean your cart can be back in service sooner after extended use.

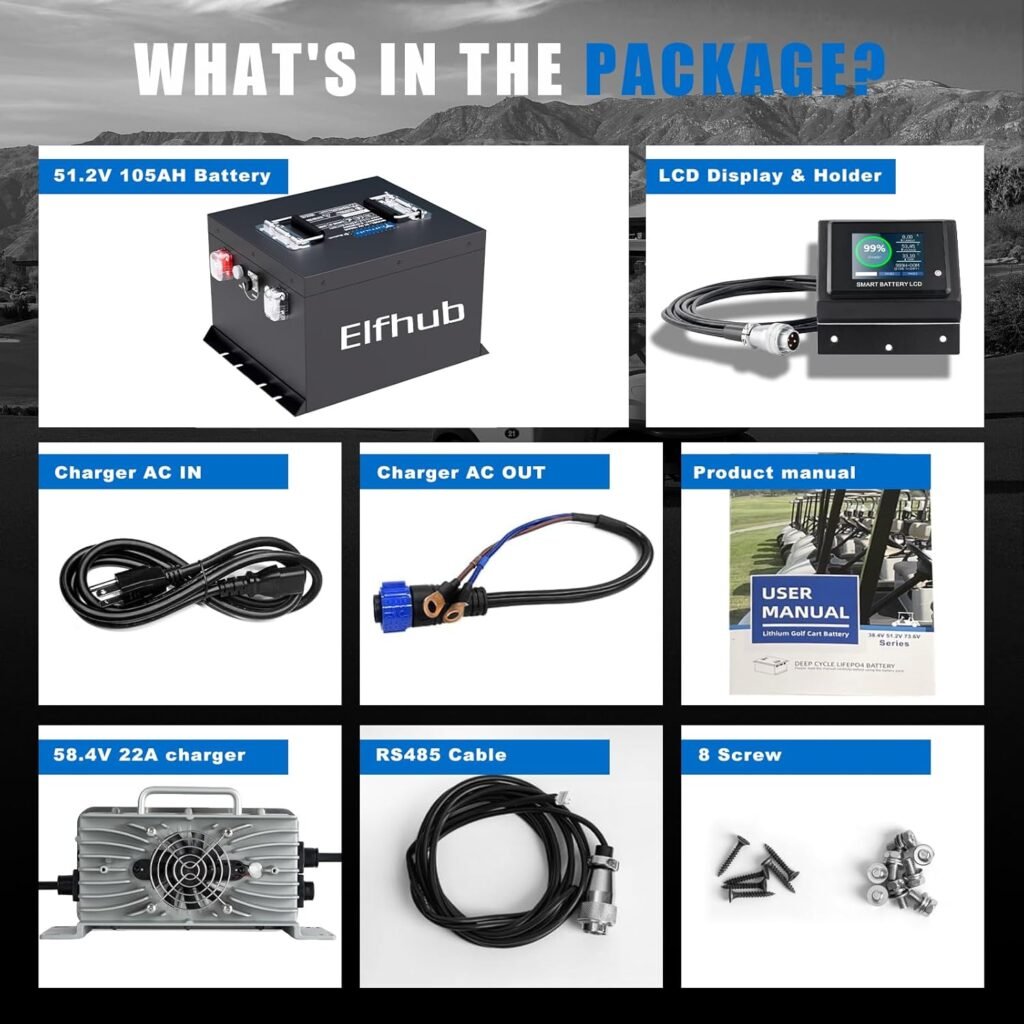

Included 58.4V 22A Charger

You get a charger optimized for this pack: 58.4V at 22A which supports a full charge in roughly five hours from empty under ideal conditions. That charger makes it practical to charge overnight or during long breaks between rounds or trips.

Charging Time & Fast Charging

At 22A, a full charge from 0 to 100% takes about five hours, which is much faster than comparable lead-acid charging cycles and better suited to higher duty cycles. The charger is designed for the LiFePO4 chemistry, offering proper termination and balancing behavior to protect cycle life.

Charging Behavior & Battery Life

Because LiFePO4 tolerates higher charge currents better and has lower internal resistance, the pack handles the included charger without excessive heat. Proper charging habits—avoiding extreme temperatures during charge and using the supplied charger—help you get the advertised 6000+ cycles.

Monitoring & Connectivity

You’ll appreciate having real-time visibility into battery state and diagnostic data through a touchscreen and smartphone app. These features put control and information at your fingertips, which helps you manage range and health proactively.

2.8-inch Touch Monitor

The integrated 2.8″ touchscreen displays key battery metrics such as voltage, current, and state-of-charge so you can glance at pack health while preparing your cart. The visual readout makes on-the-spot checks faster and more intuitive than relying on an external gauge alone.

Mobile APP & Bluetooth

Bluetooth connectivity lets you pair the battery with a mobile app to read voltage, current, SOC, and other diagnostic data from your phone. This remote access makes long-term tracking, logging, and troubleshooting easier when you want to manage multiple batteries or confirm performance before you head out.

What Data You Can Expect

You can monitor State of Charge (SOC), real-time voltage, current flow, and sometimes historical charge/discharge cycles depending on the app’s features. This data helps you forecast remaining range and maintain healthy charge habits to protect long-term capacity.

Lifespan & Warranty

Longevity is one of the main advantages you’ll see with LiFePO4 chemistry, plus the manufacturer backs the product with a meaningful warranty. That combination lowers your total cost of ownership and reduces downtime due to replacements.

6000+ Cycle Life

The battery is rated for 6000+ cycles, which is an order of magnitude better than typical lead-acid batteries (300–500 cycles). That translates into many years of frequent use before capacity drops significantly, provided you follow recommended charge and storage practices.

5-Year Warranty & Support

Elfhub offers a five-year after-sales warranty covering repair and replacement services, along with 24/7 online customer support. You can contact support for installation questions, performance concerns, or warranty claims, making it easier to get help when you need it.

Comparison: Lithium vs Lead-Acid & Similar Lithium Packs

You’ll want to compare weight, usable capacity, lifecycle cost, and performance when choosing a replacement battery. This section gives you a clear look at how this pack stacks up against traditional lead-acid options and some competing lithium batteries.

Weight, Size & Energy Density

Compared to lead-acid batteries of similar capacity, this LiFePO4 pack is about one-third the weight and occupies roughly one-sixth of the space. That means easier installation, better vehicle handling, and the ability to add accessories or cargo without exceeding payload limits.

Runtime & Power Delivery

Because of higher usable capacity and lower internal resistance, you’ll typically get better acceleration and sustained performance with this lithium pack versus lead-acid. The 200A continuous discharge and high peak currents give you a performance margin that many lead-acid systems simply can’t match.

Total Cost of Ownership (TCO)

Although the upfront cost for lithium can be higher, the long cycle life (6000+ cycles) and reduced maintenance usually lower the TCO over the battery’s life. You won’t need frequent replacements or watering/maintenance that lead-acid banks require, and operational savings can be significant over time.

Use Cases & Suitability

You’ll find this battery suitable for a wide range of light electric vehicle and mobile power applications where space and weight matter. It’s designed for golf carts first, but you can also consider it for RVs, marine electronics, solar setups, and portable power needs.

Golf Carts

This pack is perfect for modernizing a golf cart since it fits into tight battery trays while delivering better acceleration and runtime. If you want consistent performance across a full day of rounds without the weight penalty, this is a strong upgrade option.

RVs, Marine, & Camping

You can use the battery for smaller RV circuits or marine electronics where high cycle life and safe chemistry are priorities. The IP65 rating and robust BMS behavior make it a practical choice for environments with occasional splashes or vibrations.

Solar & Off-grid Systems

Because it pairs well with fast chargers and exhibits low self-discharge, the battery works well in solar or micro-grid setups where daytime charging and steady discharge are expected. You’ll appreciate its lifespan if you frequently cycle the battery in renewable energy applications.

Pros & Cons

These practical pros and cons help you weigh whether the pack fits your priorities and budget before you buy.

Pros:

• High energy density: compact form factor with 5.376 kWh usable energy.
• Lightweight: about 1/3 the weight of equivalent lead-acid batteries, making handling and installation easier.
• Strong power delivery: 200A continuous and high short-term peak ratings for acceleration and hills.
• Long cycle life: 6000+ cycles dramatically reduce replacement frequency.
• Built-in BMS: comprehensive protections for safe operation and longevity.
• Included charger: 58.4V 22A charger for relatively fast charging.
• Touchscreen + APP: on-device monitor and Bluetooth app for data and diagnostics.
• Solid warranty: five years of coverage and 24/7 customer support.

Cons:

• Upfront cost: higher initial price than lead-acid alternatives, though offset by lifespan.
• Compatibility checks: you may need to verify terminal fit and space in older carts.
• Charger dependency: while any suitable charger may work, using the supplied charger is recommended to achieve rated cycle life.
• Cold charging limits: LiFePO4 performance at low temperatures can be reduced, so charging in cold conditions requires care.

Installation Tips & Best Practices

You’ll get the best results and maximize the battery’s lifespan by following a few simple handling and installation practices. Proper mounting, wiring, and charging habits go a long way for safe, long service life.

• Physically secure the battery using proper mounting hardware to minimize vibration and movement. Loose batteries can stress terminals and connections over time.
• Use appropriately sized cables and fuses—match your vehicle’s wiring to the battery’s continuous and peak current ratings. The BMS will protect against overcurrent, but proper external fusing is still necessary.
• Keep the battery in a well-ventilated area away from excessive heat sources and avoid placing it in confined hot spaces. While LiFePO4 dissipates heat better than some chemistries, thermal management extends life.
• Charge the battery with the included 58.4V 22A charger or a charger rated for LiFePO4 chemistry with correct voltage termination. Using an incompatible charger can reduce life or harm the cells.
• Avoid charging below freezing temperatures unless the system includes a heating or temperature compensation function. Cold temperature charging can reduce acceptance and lead to cell imbalance over time.
• Periodically check app logs and the touchscreen for anomalies like disproportionate cell voltages or unexpected high self-discharge rates. Early detection usually avoids bigger problems.

Frequently Asked Questions

You’ll likely have a few practical questions about use, compatibility, and longevity. Below are common questions with concise answers based on the battery’s specifications and general LiFePO4 best practices.

Q: How long will the battery last in real-world use? A: With regular cycling and proper charging, the battery’s 6000+ cycle rating suggests many years of daily use—often a decade or more depending on duty cycle and depth of discharge.

Q: Can you use this to replace a 48V lead-acid battery directly? A: In most cases, yes—physical fit and terminal compatibility are the main concerns. You’ll also want to check your cart’s charging system and wiring to ensure they match the LiFePO4 pack’s requirements.

Q: Is the included charger the only charger you should use? A: The included 58.4V 22A charger is optimized for this pack and recommended to guarantee charging profile and longevity. If you use another charger, make sure it is set for LiFePO4 chemistry and the correct final voltage and current limits.

Q: What happens if the battery gets wet? A: The IP65 rating protects against dust and water jets, so occasional exposure to splashes or rain is acceptable. Avoid submerging the battery or exposing it to persistent heavy spray without additional protective measures.

Q: Will the Bluetooth app provide full diagnostics? A: The Bluetooth APP provides SOC, voltage, and current readings and often logs charging cycles; feature depth may vary with app updates, but it generally gives you essential monitoring data for everyday use.

Final Verdict

If you want a compact, high-output upgrade for your golf cart or other small electric vehicle, this Elfhub 48V 105Ah mini LiFePO4 battery delivers a compelling balance of power, weight savings, and long-term value. You’ll appreciate the high continuous and peak current ratings for strong performance, the 6000+ cycle life that slashes replacement frequency, and the convenience of the included 58.4V 22A charger plus touchscreen and app monitoring. The higher upfront cost is offset by reduced maintenance and dramatically longer lifespan, making it a smart investment if you prioritize performance and reliability.

If you plan to install it yourself, take time to measure your battery bay, confirm terminal locations, and follow best wiring practices so you get the most out of this pack. With proper care, you’ll gain years of reliable, high-performance operation and a much lighter solution than traditional lead-acid banks.
