48V 100Ah Lithium Golf Cart Battery 500A Peak review

Are you thinking about upgrading your golf cart or off-grid setup with the 48V 100Ah Lithium Golf Cart Battery with Charger, Built-in Smart 200A BMS, Peak Current 500A for Golf Cart?

Product overview

You’ll find this 48V 100Ah lithium battery packs a lot of modern battery tech into a compact package designed for golf carts, RVs, solar storage, and light marine use. It balances high energy density, built-in protection via a smart 200A BMS, and smartphone/LCD monitoring, making it a strong replacement for heavy lead-acid banks.

Key specifications

Below is a clear breakdown of the main specifications so you can quickly see what you’re working with. This table shows the core numbers you’ll reference during purchase, installation, and use.

You’ll want to keep this table handy when checking fitment, transport, or matching the battery to your vehicle’s motor controller and charger.

Design and build quality

You’ll notice the battery has a compact footprint and reduced weight compared to equivalent lead-acid banks. At around 80 lbs, it’s manageable for two people to lift into a golf cart bay or cabinet without specialized lifting tools.

The casing feels robust and the terminals are positioned for straightforward wiring. The product uses A-grade cells and an upgraded internal layout to keep heat and vibrations under control. This matters because better cells and a sturdier build translate to more consistent performance and longer life.

Form factor and weight

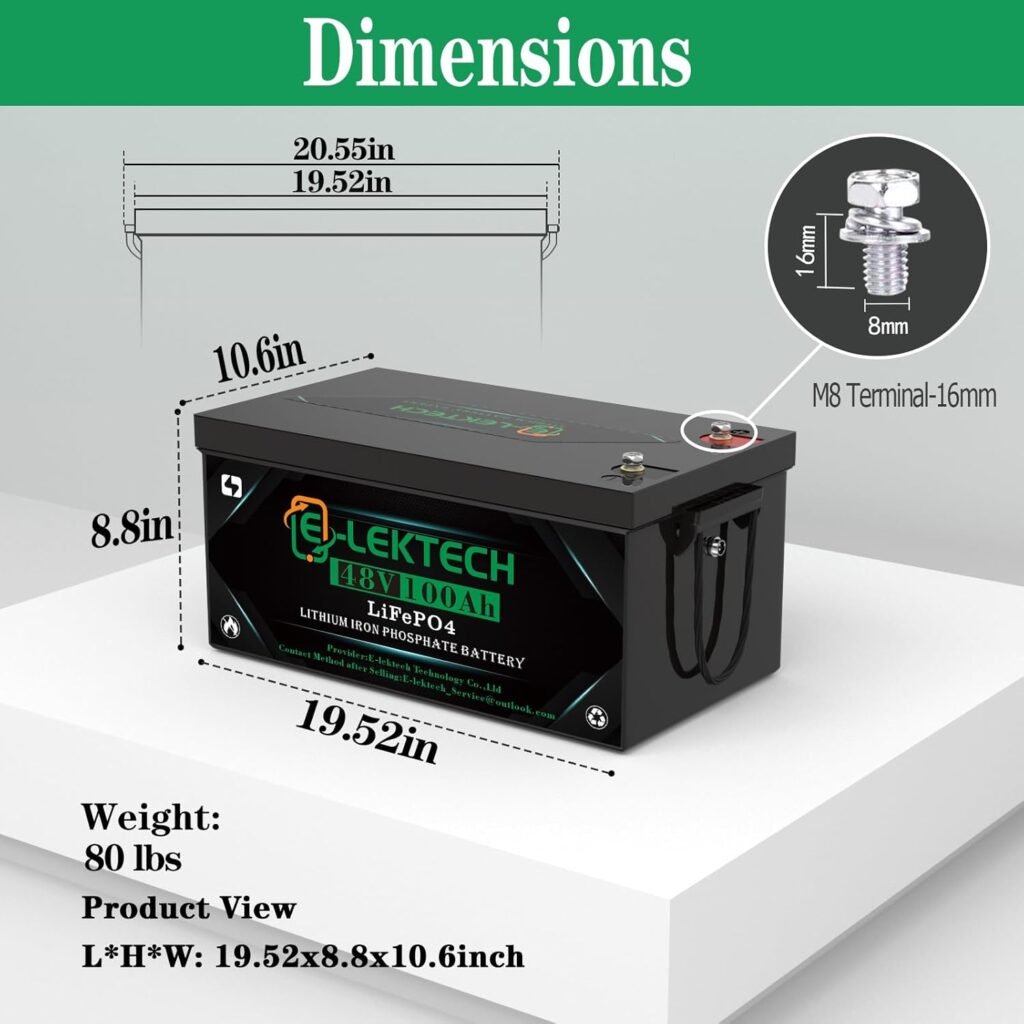

Because this battery is physically smaller and much lighter than a comparable lead-acid set, you’ll gain usable space and make installation less of a chore. The dimensions (19.52″ x 8.8″ x 10.6″) fit many common golf cart compartments, but you should measure your sled before buying to confirm clearance.

You’ll also appreciate the lower center of gravity impact in a cart or RV; the lighter pack makes handling and balance easier while still delivering similar usable energy.

A-grade cells and internal components

The A-grade cells used in this pack increase energy density and help ensure consistent capacity over many cycles. Higher-quality cells typically suffer less from internal impedance rise, so you’ll get better discharge performance at higher currents.

Your battery’s internal arrangement supports efficient thermal management, and the overall build quality is designed to minimize swelling, leakage, and premature degradation.

Smart 200A BMS and low-temp protection

The integrated 200A BMS is a central safety and performance feature. It handles overcharge, overdischarge, overcurrent, and short-circuit protections, so you’ll have safeguards against many common battery issues.

You’ll also benefit from low-temperature protections: charging and discharging ranges are controlled so the cells aren’t stressed when it’s hot or cold. The BMS reduces risk when charging near freezing and keeps your battery healthy across a broad range of climates.

Performance and power delivery

You’re getting a 48V, 100Ah pack, which stores 4.8 kWh of energy. That’s a useful amount for a golf cart or small RV system. The continuous 200A discharge ability gives you steady performance, and the 500A peak is there for short bursts—like acceleration up a hill or a quick sprint.

Don’t forget that peak current is for brief demands. If you consistently draw near the peak, the pack will heat and the BMS may cut output to protect the cells. Proper cooling and sensible load management deliver the best real-world results.

Continuous and peak current: what they mean to you

Continuous discharge of up to 200A means you can run motors, accessories, and more without hitting limits in everyday driving. If your cart draws, for example, 150A during normal operation, you have headroom for extra accessories or a slightly heavier load.

The 500A peak is intended for very short time windows—think seconds, not minutes. It helps with initial acceleration and short bursts of power but won’t sustain extended high-power draws.

Real-world runtime and range expectations

Let’s turn the math into practical expectations. Your battery stores 4.8 kWh. If your golf cart or load draws 1 kW on average, you’d expect roughly 4.8 hours of runtime under ideal conditions. If the average draw is 2 kW, that falls to about 2.4 hours. For heavier draws close to the maximum continuous power (48V x 200A = 9.6 kW theoretical continuous power), the runtime would be very short.

Example estimates:

• Light cruising, basic cart + minimal accessories (approx. 800W): ~6 hours.
• Typical golf cart use with some elevation and stop/start (approx. 1.5 kW): ~3.2 hours.
• Heavy use with full accessory load and inclines (approx. 3 kW): ~1.6 hours.

You’ll want to factor in terrain, passenger weight, speed, and accessory use (lights, stereo, winch) when estimating real-world range. If you plan heavy-duty or all-day use, consider parallel expansion of multiple batteries.

Cycle life and longevity

The manufacturer claims over 10,000 cycles and an expected life of up to 10 years under normal use. That’s significantly better than typical flooded or sealed lead-acid batteries, which often last a few hundred to a thousand cycles.

For you, this means a lower total cost of ownership: fewer replacements, fewer maintenance cycles, and more consistent performance over years.

Charging and monitoring

You’ll like the combination of an included charger and digital monitoring. The charger comes separately from the battery packaging, so expect two boxes. The monitoring options give you instant access to key metrics so you can manage charging and usage effectively.

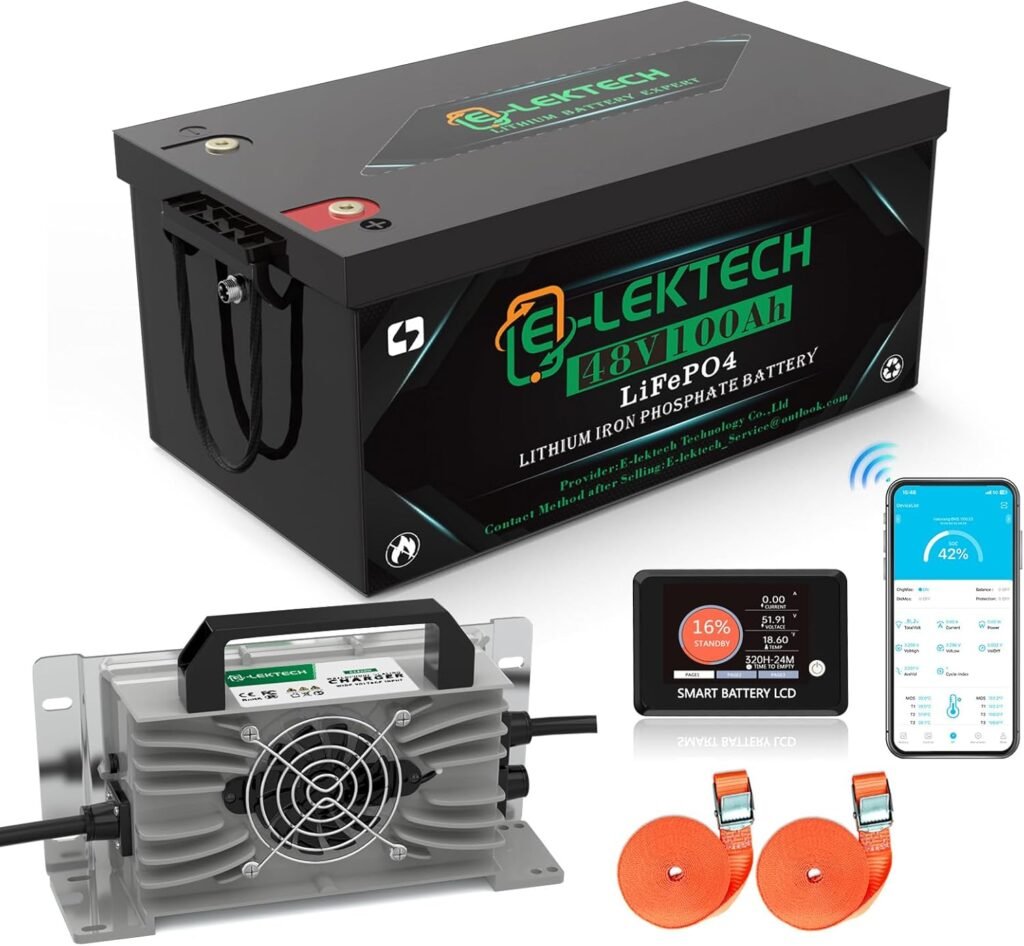

Charger included and separate shipping

The battery ships in one package and the charger in another, so check both boxes on delivery. The included charger is matched to the pack, improving charge profile accuracy and longevity.

You’ll want to verify the charger’s output current and charge algorithm, and keep the manual handy for recommended charge cycles and settings.

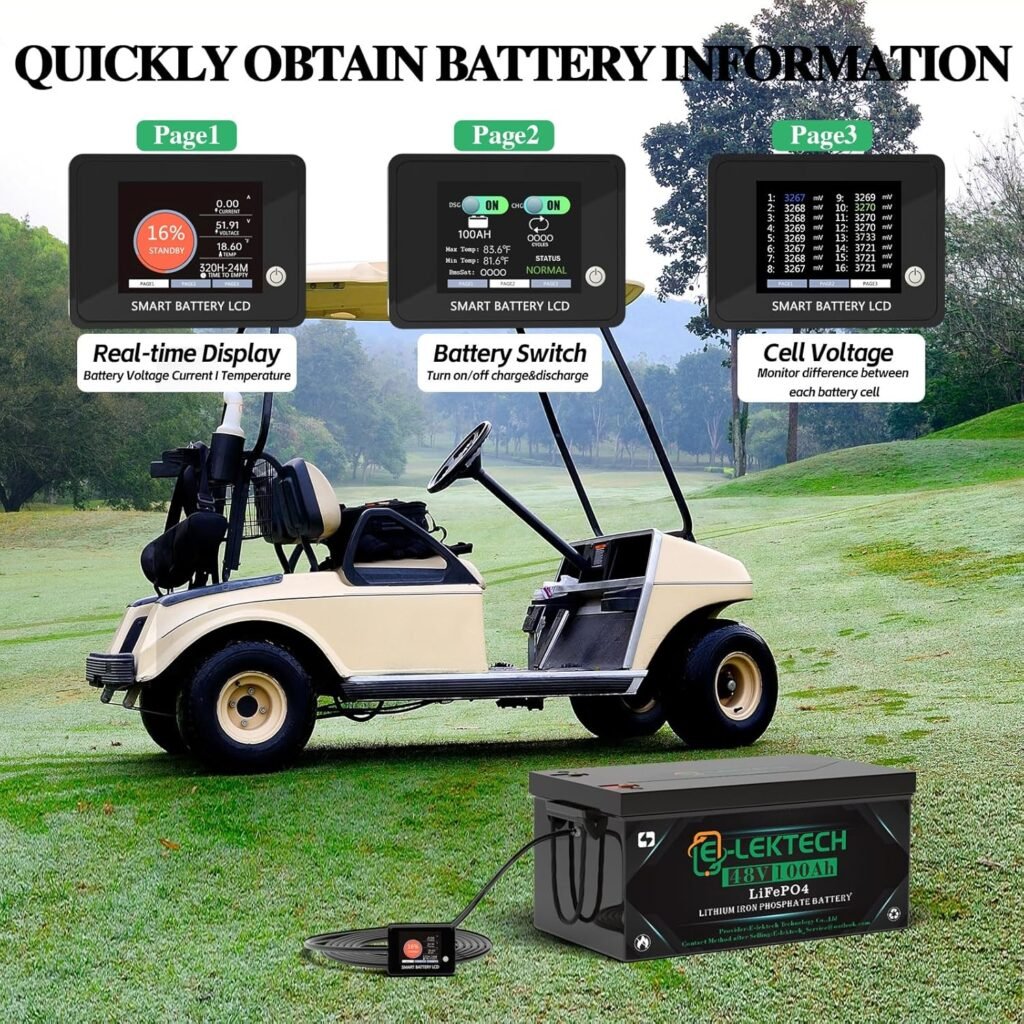

APP and LCD monitoring

You can monitor voltage, current, state-of-charge, capacity, and other metrics via the built-in LCD and the smartphone APP. This means you’ll know charge percentage, real-time current, and any fault codes without guessing.

Using the APP gives you remote access to trends and alerts, which is helpful for diagnosing issues and tracking battery health over months and years. Just follow the manual to download and pair the APP via Bluetooth.

Charging speeds and best practices

Charge speed depends on the charger’s current and the battery’s charge acceptance rate. Charging at moderate rates (e.g., C/2 to C/3, where C = 100A for a 100Ah battery) is a safe way to maintain longevity. If the included charger supports faster charging, the BMS will manage the process, but frequent high-rate charging can reduce long-term capacity.

You should avoid charging below the recommended temperature threshold (0°C / 32°F) unless the BMS expressly allows it or there’s an internal heater. If you plan to parallel multiple batteries, fully charge each unit individually the first time to ensure voltage balance.

Installation and compatibility

Installing this battery is straightforward for most hobbyists and pro technicians, but you should prepare your cart or system beforehand. Double-check battery tray dimensions, terminal orientation, and cable routing.

Golf cart fitment and mounting suggestions

Measure your battery bay or storage compartment and compare with the battery dimensions. You’ll want secure mounting points and enough clearance for terminal access and airflow. Use insulated mounts and secure fasteners to prevent movement over rough terrain.

You’ll also want to route cables to avoid sharp bends and heat sources. If your cart has a motor controller designed for 36V or 48V lead-acid packs, confirm compatibility before replacement.

Expanding capacity: paralleling up to 6 batteries

You can parallel up to 6 of these units to expand capacity. When you add batteries, you’ll gain more runtime and distribute current draws across packs.

Important: the manufacturer recommends separate full charging for voltage balance during expansion. That means you should fully charge each battery individually before linking them in parallel. Also, use matched batteries (same model, age, and charge state) to avoid imbalance-related issues.

Using the battery in RVs, solar, and marine setups

You’ll find this pack versatile for many applications. In RV solar systems, it can act as a deep-cycle battery bank with good cycling performance. For marine use, ensure waterproofing and bracketed mounting; lithium batteries require careful mounting to prevent movement and exposure to moisture.

In solar systems, consider a dedicated lithium-compatible charge controller and inverter. For off-grid setups, plan battery management, fusing, and emergency power cutoffs.

Safety and protections

You’ll benefit from robust protections because lithium energy density calls for smart safeguards. The 200A BMS covers common failure modes and reduces the risk of cell damage, fire, or premature failure.

Overcharge, overdischarge, and short-circuit protection

The BMS actively monitors cell voltages and overall pack conditions to prevent overcharging and deep discharge. It also responds quickly to overcurrent and short-circuit events, isolating the pack when needed.

You should still wire appropriate fuses and circuit breakers inline with your installation to add a level of protection and help the BMS operate in safer conditions.

Low-temperature charging and discharging limits

The battery supports charging down to 32°F (0°C) and discharging down to -22°F (-30°C). That range helps in colder climates, but you should avoid charging at the lower end of that spectrum whenever possible, as low-temperature charging stresses cells.

If you live in very cold areas, consider installing a thermal management strategy (insulation, heater, temperature sensor) to keep charging consistent and safe.

Maintenance and storage safety

You won’t need frequent watering or equalization like you would for flooded lead-acid batteries. However, you should store the battery at a partial state of charge (around 40–60%) if storing it long-term, and periodically check the state-of-charge and cell balance with the APP or LCD.

Keep the battery in a cool, dry place and avoid prolonged exposure to temperatures above the charge/discharge limits. Also, use recommended fuses and disconnect procedures when servicing.

Pros and cons

You’ll appreciate the advantages, but it’s helpful to see the trade-offs clearly.

Pros:

• High energy density for a smaller footprint and lower weight.
• Long cycle life (10,000+ cycles) and 10-year lifespan claim.
• Smart 200A BMS with extensive protections.
• High peak current (500A) for short bursts.
• APP and LCD monitoring for real-time diagnostics.
• Expandable up to 6 batteries in parallel.
• Minimal maintenance compared to lead-acid.

Cons:

• Upfront cost will be higher than lead-acid equivalents.
• Charger ships separately; you’ll need to ensure you have both packages.
• Peak current capability is brief; sustained high loads reduce runtime quickly.
• You’ll need to manage balance when paralleling multiple units.
• Some golf cart controllers may require reprogramming or adaptation for lithium chemistry.

Comparison to lead-acid and other lithium options

You’ll see several performance differences versus lead-acid. Lithium gives you much higher usable capacity for the same rated amp-hours, far lighter weight, and dramatically longer cycle life. A 48V 100Ah lead-acid bank would weigh significantly more and need more active maintenance.

Compared to other lithium packs, this model competes on BMS capability and peak current. Some higher-end lithium options offer integrated heaters, IP-rated enclosures, or higher continuous current; check your application requirements against those features.

Cost comparison perspective:

• Initial cost: lithium > lead-acid.
• Lifetime cost: lithium
