? Are you trying to decide whether the 48V 100Ah LiFePO4 Lithium Battery with WiFi&Bluetooth, 5.12KWh LiFePO4 Server Rack Battery, APP Control, Large Screen, 3U Chassis, 8000+ Cycles, Perfect for RV, Solar, Off-Grid, Backup is the right battery for your system?
Quick Verdict
This battery balances high cycle life, smart monitoring, and a compact server-rack form factor, making it a strong option if you want a reliable, long-lasting 48V energy bank. You’ll appreciate the lightweight design and app connectivity, especially if you plan to install several in parallel or fit your storage into a rack cabinet.
Product Overview
The CYCCLEVOLT 48V 100Ah LiFePO4 battery (5.12kWh nominal) comes with built-in WiFi and Bluetooth, a large real-time display, and a 3U chassis that fits standard rack systems. You get a smart 100A BMS, RS485 and CAN ports for inverter communication, dual terminals, stacking brackets, and a low-temperature cutoff — features that make it suitable for RVs, solar arrays, off-grid systems, and backup power setups.
Key Specifications
Below is a quick-reference table that breaks down the most important technical specifications you’ll want to know before buying. This will help you compare and plan capacity, mounting, and integration.
| Specification | Detail |
|---|---|
| Nominal Voltage | 51.2V (marketed as 48V system) |
| Capacity | 100Ah |
| Usable Energy | 5.12 kWh |
| Cell Type | LiFePO4 (16 Grade A cells) |
| Cycle Life | 8000+ cycles (typical to 80%+ DoD) |
| BMS Current | Smart 100A BMS (continuous protection) |
| Communication | WiFi, Bluetooth, RS485, CAN |
| Ports Included | RJ45 inverter comm cable, parallel comm cable |
| Protection | Overcharge, over-discharge, over-current, short circuit, low temp cutoff |
| Low Temp Cutoff | -4°F (-20°C) |
| Dimensions | 18.9 x 17.4 x 5.2 inches (L x W x H) |
| Weight | 93 lbs |
| Chassis | 3U server rack form factor, stacking bracket included |
| Parallel Expandability | Up to 15 batteries in parallel (51.2V, 1500Ah potential) |
| Warranty & Support | 5-year warranty, 24-hour technical support |
| Applications | RV, solar, off-grid, backup, marine, server racks |
What’s in the Box
When you receive the battery, it comes with the essentials needed to get started quickly in most installations. You’ll find the battery itself, power cables, communication cables, and the stacking bracket for mounting.
- 1 × 51.2V 100Ah LiFePO4 Battery (3U chassis)
- 2 × Power cable
- 1 × Inverter Communication Cable (RJ45)
- 1 × Parallel Communication Cable (RJ45)
- Stacking bracket and basic mounting hardware (as included by vendor)
Design and Build Quality
The battery uses a sturdy metal case and compact 3U chassis, which gives it a server-rack friendly footprint while protecting the cells inside. The metal enclosure and the internal layout are built with durability in mind, helping to reduce the risk of punctures or physical damage during installation and transport.
You’ll notice dual positive and negative terminals that reduce hot spots and help distribute current more evenly, and a large screen on the front that displays SOC, voltage, and current for quick local checks. The included stacking bracket and the relatively light weight (93 lbs) compared to equivalent lead-acid banks make physical handling and rack mounting significantly easier.
Installation and Setup
Installing this battery is straightforward if you plan your layout and cables in advance; the 3U chassis is compatible with standard rack shelves and server cabinets. You should use the provided stacking brackets for a secure installation and ensure proper ventilation, wiring clearances, and accessible terminals for maintenance.
For system integration, the battery supports RS485 and CAN communications for most 48V inverters, and includes an RJ45 inverter communication cable and a parallel communication cable to synchronize multiple batteries. Pairing via Bluetooth or connecting over WiFi to the CYCCLEVOLT app is quick, letting you confirm SOC and performance after physical connections are complete.
Monitoring and App Features
You can monitor real-time information like state of charge (SOC), voltage, and current on the large front panel display, and then view the same data on your smartphone through the app using WiFi or Bluetooth. The app makes remote checks convenient and helps you track performance trends, alerts, and basic diagnostics without having to climb into your rack or RV.
Communication through RS485 and CAN ports is especially useful for solar and hybrid inverter systems, because it allows the inverter to read battery metrics directly and perform coordinated charging. If you manage multiple batteries in parallel, the app and communication ports help you verify balanced operation and troubleshoot issues from a distance.
Performance and Capacity
With a nominal 51.2V and 100Ah capacity, this battery offers 5.12kWh of energy per unit, and the use of Grade A LiFePO4 cells helps secure a lifespan of 8000+ cycles. You can expect reliable discharge and charge performance across normal operating temperatures, and you’ll benefit long-term from the lower capacity fade compared to lead-acid alternatives.
The smart 100A BMS limits continuous currents and protects the battery from abusive conditions, but you should size your inverter and load expectations to the 100A limit to avoid frequent current-limiting events. For higher continuous draws, consider paralleling multiple units while adhering to the BMS and inverter manufacturer’s guidelines for safe operation.
Charging and Discharging Behavior
The 100A BMS supports robust charging and discharging for many off-grid and backup scenarios, and standard LiFePO4 charge profiles apply: bulk/absorb around 56.8V to 58.4V (depending on your inverter/charger settings), with float typically not required for LiFePO4. You’ll avoid issues common to lead-acid batteries like sulfation, and you can generally charge faster and discharge deeper without damaging the cells.
Do not attempt to charge the battery below the low temperature cutoff (-4°F / -20°C) unless your specific system includes battery heating or temperature conditioning. Charging below that threshold can cause lithium cell damage, so plan your installation accordingly in cold climates.
Safety Features

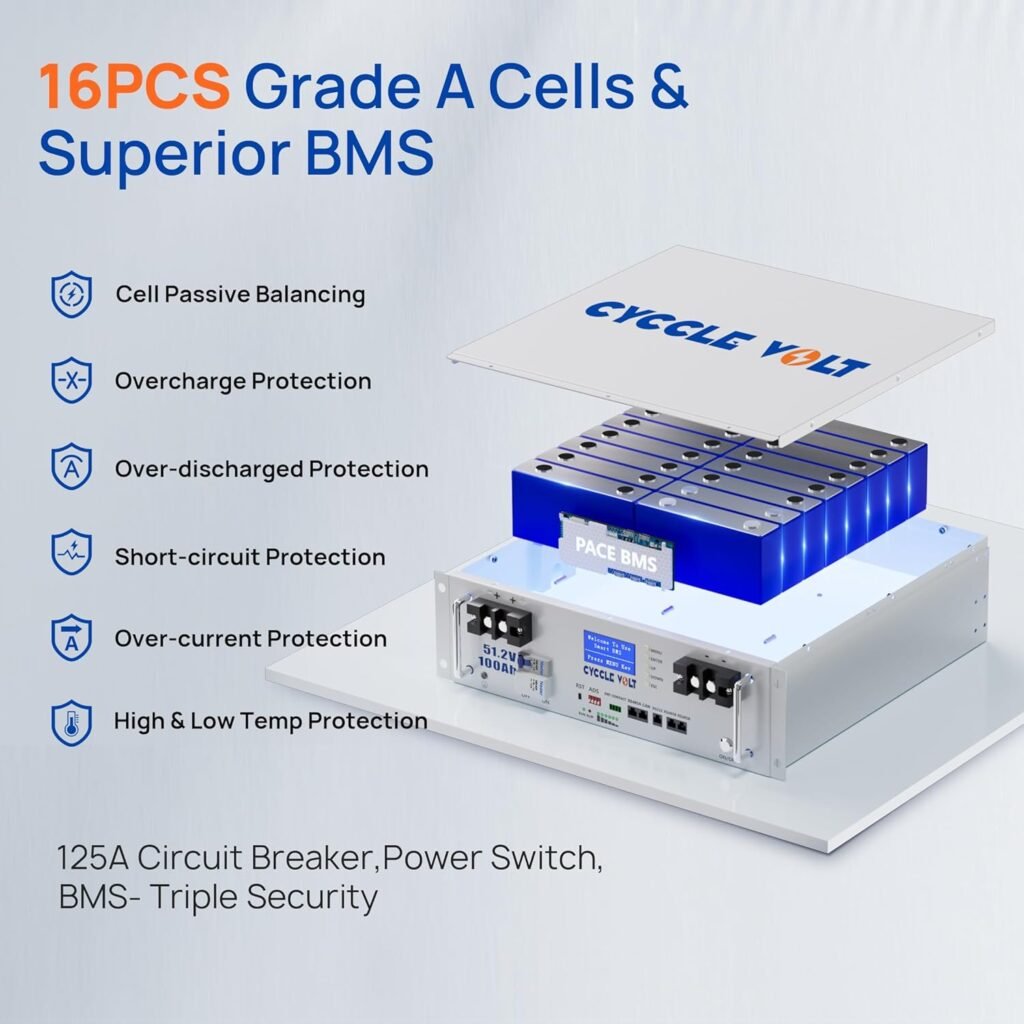

Safety is a major focus here: the smart 100A BMS offers overcharge, over-discharge, over-current, and short-circuit protections, while a circuit breaker and one-touch switch provide additional user-level protection and convenience. The low temperature cutoff protects the battery from charging under dangerously low temperatures that could otherwise lead to internal damage.
The metal case further reduces the risk of physical impacts and punctures, and dual terminals reduce heating at connection points. Together, these safeguards mean you get multiple layers of protection for both normal use and edge-case events.
Use Cases and Real-World Scenarios
This battery is suitable for a range of applications including RV power systems, home solar storage, off-grid cabins, marine installations, and server rack backup. If you need a compact, rack-mountable battery with smart monitoring and long cycle life, this unit fits well into systems where space is limited and reliability is important.
For RVs, the lightweight construction and integrated monitoring make installation and daily management easier while providing enough energy for appliances and overnight autonomy. For solar and off-grid systems, the ability to parallel up to 15 units gives you the flexibility to scale from a single-battery starter system to a large 76.8kWh station for comprehensive backup.

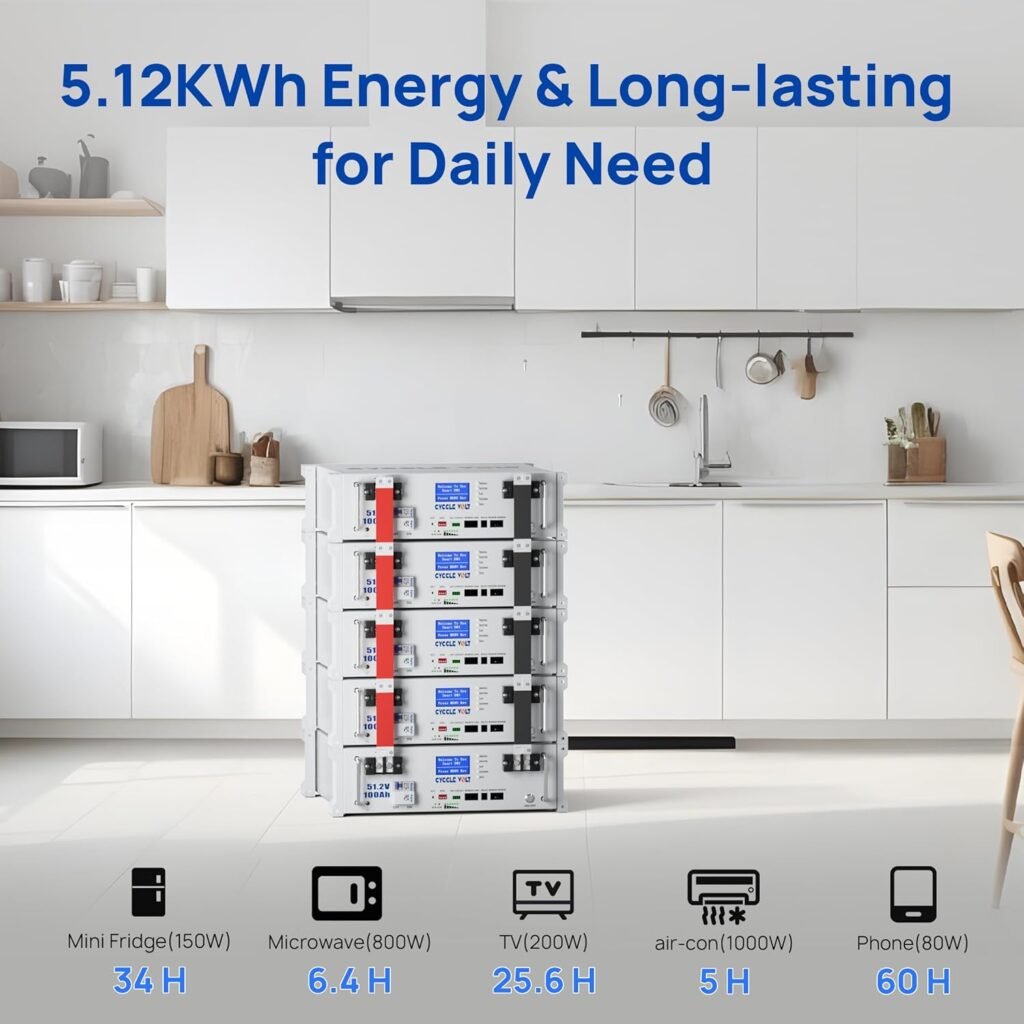

Parallel Expansion and Scalability
You can expand your system by paralleling up to 15 of these batteries, which gives you a theoretical combined capacity of 51.2V and 1500Ah (76.8kWh). This scalability is especially useful if you plan incremental upgrades: start with one or two batteries and add more as your energy needs grow.
When paralleling, ensure proper communication linking and balancing between units using the provided RJ45 parallel cable or the recommended parallel wiring configuration. You should also size your cabling, fuses, and inverter to handle the combined currents safely and consult the vendor’s parallel wiring guidelines to avoid imbalance and ensure long-term reliability.
Pros and Cons
You’ll find advantages and a few trade-offs with this battery. Here are the main points to help you decide quickly whether it aligns with your requirements.
Pros:
- Long cycle life (8000+ cycles) that greatly reduces lifecycle cost versus lead-acid.
- Lightweight and rack-friendly 3U chassis that simplifies installation and saves space.
- Built-in WiFi/Bluetooth plus RS485/CAN communications for flexible monitoring and inverter integration.
- Smart 100A BMS and low temperature cutoff for safer operation in varied conditions.
- Dual terminals and stacking brackets simplify current distribution and mounting.
- Up to 15 units parallel for large energy stations (76.8kWh possible).
Cons:
- 100A BMS may limit continuous draw for very high-load scenarios without paralleling.
- Charging below -4°F (-20°C) is not allowed without heating, which matters in cold climates.
- At 93 lbs, it’s lighter than lead-acid but still requires two people or lifting equipment for safe rack installation.
- Some advanced inverter setups may need configuration to fully leverage RS485/CAN communication.
Comparison with Lead-Acid and Other LiFePO4 Options
Compared with a same-capacity lead-acid battery, you’ll typically see a 60% reduction in weight and far greater cycle life, which translates into lower total cost of ownership over the years. Lead-acid requires more maintenance, more space, and will need replacement multiple times over the LiFePO4’s service life.
Against other LiFePO4 modules, this battery stands out for its rackable 3U form factor, built-in communications, and dual terminals. Some competitors may offer higher continuous current or different cell configurations, but the combination of 100A BMS, connectivity, and a 5.12kWh module is a strong balanced option for many installations.
Maintenance and Support
You’ll benefit from minimal maintenance compared to lead-acid systems: periodic visual inspections, keeping connections tight and clean, and ensuring firmware/app updates when available is usually enough. You also have 24-hour technical support and a 5-year warranty, which adds a layer of reassurance during the first years of service.
For long-term storage, keep the battery at a partial state of charge (around 40–60%) and store it in a cool, dry place away from direct sunlight and extreme temperatures. Avoid leaving the battery at 100% SOC for extended periods when not in use, as long-term high SOC can accelerate degradation even for LiFePO4.
Practical Tips for Integration
When wiring this battery into your system, always use properly rated cables and fuses sized for the maximum combined current of your configuration. You should place the circuit breaker near the battery to protect against short circuits and ensure each parallel string has proper balancing communication connected according to the vendor’s instructions.
Ensure ventilation in the rack or enclosure and keep the front display accessible for quick local checks. If you operate in very cold climates, consider a battery heater or insulated enclosure to avoid reaching temperatures below the -4°F (-20°C) cutoff when charging is required.
FAQ (Frequently Asked Questions)
Q: How much usable energy will you get from a single unit? A: You’ll get 5.12kWh nominal from a single unit. Usable energy can vary depending on your depth of discharge practice, but LiFePO4 commonly supports deep cycles, so 4.5–5.12kWh usable depending on your inverter settings.
Q: Can you parallel these batteries safely? A: Yes, up to 15 batteries can be paralleled per the manufacturer’s specifications, giving a combined 76.8kWh at 51.2V. Use the parallel communication cable, follow recommended wiring, and ensure all units share communication and proper fusing.
Q: Will the app give you detailed diagnostics? A: The app provides real-time SOC, voltage, and current data, along with basic alerts and status indicators over WiFi or Bluetooth. For deeper integration, use RS485 or CAN to relay detailed battery metrics to compatible inverters or monitoring systems.
Q: Is there a risk of charging in cold weather? A: The battery has a low temperature cutoff at -4°F (-20°C) to prevent charging below safe temperatures. If you need to charge below this threshold, a battery heating solution is required to avoid permanent cell damage.
Q: What are the mounting options? A: The 3U chassis fits in standard rack cabinets using the included stacking bracket, and it can also be shelf-mounted if your enclosure supports it. Ensure secure fixing with proper weight support and allow some clearance for airflow.
Q: How do you handle high current demands beyond 100A? A: For sustained currents above 100A, parallel multiple batteries to increase total continuous current capability while monitoring the BMS and inverter limits. Proper cable sizing and protective devices are essential when handling higher combined currents.
Real-World Example Scenarios
If you run a small off-grid cabin using a 3kW inverter and want to power lighting, a fridge, and occasional tools, two of these batteries will give you roughly 10kWh of usable energy (depending on your depth of discharge), letting you run most daily loads and recharge with solar the next day. You’ll benefit from the app for monitoring and the RS485/CAN link if your inverter supports battery communication.
For an RV owner who wants quiet, maintenance-free power for weekend trips, the battery’s lighter weight and integrated monitoring make it an easy retrofit into many coach battery bays or a rack in your cargo area. The low self-discharge and high cycle life mean you can store the vehicle seasonally without battery degradation concerns typical of lead-acid banks.
If you’re building a backup solution for a small office or home server rack, the 3U form factor allows clean rack integration alongside UPS hardware and server equipment. Paralleling several units will provide hours of runtime and ensure the battery pack ties into your power management protocols via RS485/CAN.
Troubleshooting Tips
If the battery won’t communicate with your inverter, check that the RJ45 cable is connected correctly and verify the communication protocol settings (MODBUS, CANBus ID, parity and baud rate). If the battery shows lower-than-expected capacity or unusual voltage behavior, inspect terminals for corrosion or loose connections and verify that the BMS hasn’t entered a protective mode due to temperature or overcurrent events.
If the app fails to pair via Bluetooth, ensure airplane mode or other Bluetooth-blocking settings are disabled on your phone and that the battery’s wireless module is not in a disabled state. A quick power cycle of the battery (via the one-touch switch) can often resolve transient communications issues.
Final Recommendation
If you need a compact, smart, and reliable 48V energy module for RV, solar, off-grid, or rack-mounted backup applications, you’ll find the CYCCLEVOLT 48V 100Ah LiFePO4 battery to be a practical and future-proof choice. Its combination of app-based monitoring, long cycle life, and rack-friendly design makes it a great building block whether you start small or expand to a multi-unit array.
You should choose this battery if you value long-term cost savings, easy monitoring, and flexible installation options. If your system demands extremely high continuous currents from a single module, consider paralleling multiple units or evaluating a battery rated for higher continuous discharge, but for most residential and light commercial applications this battery will serve you well.
