Are you trying to decide if the 48V 100AH Lithium Golf Cart Battery – 5.12kWh LiFePO4 Battery, 1000A Peak Current, 10000+ Deep Cycles Batteries for 48V Golf Carts, Solar Systems, RVs & Off Grid Applications is the right upgrade for your golf cart, RV, solar array, or marine setup?
Quick product snapshot
You’ll want a concise view before getting into the details, so here’s what this product promises. It’s a 48V, 100Ah LiFePO4 battery pack designed as a drop-in replacement for lead-acid banks and as a primary energy source for off-grid needs. The manufacturer emphasizes Grade A LiFePO4 cells, a long cycle life, and a robust BMS that supports high discharge currents for brief bursts.
What makes this battery different from cheaper options?
You’ll notice a focus on cell grade, longevity, and safety features. Grade A cells typically give more consistent capacity, better internal resistance, and longer life than lower-tier cells. The integrated BMS and IP65 rating make it more practical for outdoor use compared with many budget packs that lack protection or proven cell quality.
Key specifications and feature breakdown
Below is a clear breakdown of the most important specs and what they mean for you. This will help you compare to other batteries and understand how it will behave in real life.
| Specification | Value | What that means for you |
|---|---|---|
| Nominal voltage | 48V | Fits systems built for 48V nominal banks: golf carts, many RVs, off-grid inverters |
| Capacity | 100Ah | Offers 5.12 kWh of usable energy at nominal voltage |
| Energy | 5.12 kWh | Enough for moderate daily usage on carts, small RV loads, or as part of a solar system |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) | Very stable chemistry with thermal and chemical stability compared to other lithium types |
| Cell quality | Grade A cells (manufacturer claim) | Higher likelihood of consistent performance and lower internal resistance |
| Cycle life (manufacturer statements) | 5000+ to 10000+ cycles (varies) | Very long life compared to lead-acid — check warranty and seller clarifications |
| BMS continuous discharge | 200A | Solid continuous current for most 48V golf carts and heavy loads |
| BMS peak discharge | 1000A (3–5s) | Short bursts for motor starts or high current draws |
| BMS short-duration allowances | 300A and 600A indicated for short time spans (manufacturer specs) | Handles surges and throttle moments without premature cutoff |
| Self-discharge | <3% monthly (manufacturer claim)< />d> | Holds charge far better than lead-acid when idle |
| Efficiency | >90% | Less energy lost to heat than older chemistries |
| IP rating | IP65 | Protected against dust and low-pressure water jets — suitable for outdoor installations |
| Operating temps | Charge: 0°C–55°C; Discharge: -20°C–60°C | Wide range for most climates, but charging below 0°C is restricted |
| Warranty / lifetime | 10-year lifetime claimed (manufacturer claim) | Expect long-term value but confirm actual warranty terms |
Performance and real-world use
You’ll care most about runtime, acceleration, and how the battery copes with real loads. The 48V 100Ah LiFePO4 provides consistent voltage under load, lower sag than lead-acid, and faster recovery after heavy draw. That translates to better throttle response on golf carts and more reliable power for inverters in RV or off-grid use.
How it feels in a golf cart
When you use this battery in a golf cart, you’ll notice stronger starts and sustained speed on hills compared with a worn lead-acid bank. Because LiFePO4 has lower internal resistance, it maintains voltage under load better. That means you can expect more consistent performance as the charge drops instead of the steep decline typical of lead-acid.
Solar, RV, and marine performance
For solar and RV use, the high cycle life and low self-discharge are major advantages. You can cycle daily for years without the same degradation pattern you see in lead-acid. For marine trolling motors and small boats, the high peak current capability gives you surge power when you need it — like when you’re trying to get a heavy boat moving.
Battery chemistry and longevity
Understanding LiFePO4 chemistry helps you use the battery properly and maximize life. LiFePO4 is one of the safest lithium chemistries available and resists thermal runaway better than NMC or other lithium types. The manufacturer claims 5000+ cycles and the product name references 10000+ cycles. That discrepancy is worth clarifying with the seller, but either number suggests meaningfully longer service life than lead-acid.
What affects cycle life
How you use the battery has the biggest impact on cycles. If you regularly discharge deeper (close to 100% DoD) you’ll get fewer cycles than if you limit DoD to 80% or 50%. Temperature extremes and improper charging also reduce life. You should keep the battery within recommended charging temperatures (charging not below 0°C) and avoid high-rate charging repeatedly if you want maximum longevity.

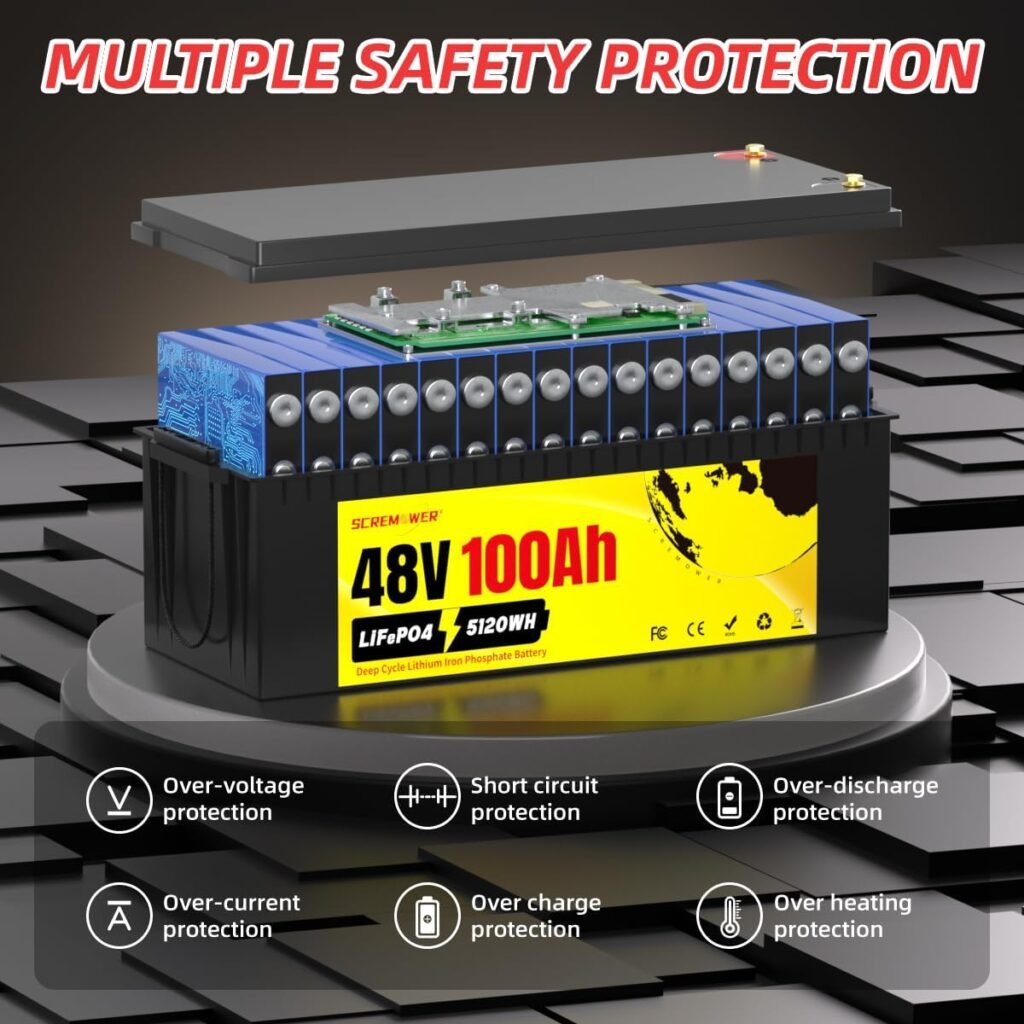

Safety, BMS, and environmental protection
You’ll want reassurance that the battery won’t become a hazard. The LiFePO4 chemistry, integrated battery management system (BMS), and the IP65 rating contribute to safety and durability for outdoor installs.
Battery Management System (BMS) explained
The included 200A BMS monitors cell voltages, balances the pack, and protects against overcharge, over-discharge, short circuits, and overcurrent. It’s built to allow 200A continuous discharge and has high short-term peak capabilities (1000A for 3–5 seconds, with other high-current allowances for short intervals), which prevents unexpected cutoffs during high-demand moments.
Weather resistance and durability
With an IP65 rating, you can mount the battery where it may get splashed or exposed to dust. It is not fully submersible, so you should avoid installing it in areas where it can be submerged. The operating temperature range makes it usable in most climates, but the charging temperature floor of 0°C is important — charging below freezing can damage the pack, so you’ll need to isolate or follow manufacturer charging strategies in cold environments.
Installation and compatibility
You’ll want installation to be straightforward. Here are practical checks and tips to make the swap from lead-acid easier and safer.
Replacing lead-acid banks
To replace a 48V lead-acid bank, make sure your system voltage matches exactly and that your charger or charging system is compatible with LiFePO4 chemistry. LiFePO4 has different voltage targets and charging profiles than lead-acid — the pack is typically fully charged around 58.4V for a 16-cell 48V pack (3.65V per cell × 16), so check your charger settings or use a LiFePO4-compatible charger or charge controller.
Wiring and configuration
The battery supports parallel DIY configurations for higher current needs across multiple packs. The 200A BMS supports typical single-pack use; for larger current requirements, wiring packs in parallel can increase capacity and continuous current capability. When you parallel packs, ensure the packs are at similar state-of-charge, use proper gauge wiring, and fuse appropriately to protect from faults.
Physical mounting and terminals
Check the battery terminal layout and mounting footprint against your application. LiFePO4 packs are often much lighter than equivalent lead-acid strings — the product claims it’s about one-third the weight — which can simplify mounting but also change the center of gravity if you’re retrofitting a vehicle.
Charging best practices
Charging correctly increases safety and longevity. You’ll want to adhere to LiFePO4 recommendations and your charger’s specifications.
Typical charge voltages (practical guideline)
While you should follow the manufacturer’s explicit guidance, it’s useful to know typical numbers: a 48V LiFePO4 pack is commonly charged up to about 58.4V (3.65V per cell × 16). Float charging is often lower or omitted with LiFePO4; many systems use a maintenance mode of around 54–55V if required. Always ensure your charger is labeled LiFePO4-compatible or can be set to the correct final voltage.
Charge current and heat
Charging at moderate current (e.g., C/2 or less for frequent use) avoids excessive heat. The pack accepts higher rates, but repeated high-rate charging stresses cells over time. If you’re charging from solar, configure your charge controller’s voltage setpoints to LiFePO4 values.
Maintenance and service life expectations
You’ll appreciate lower maintenance compared with lead-acid. LiFePO4 doesn’t need watering, equalization, or frequent top-offs.
What to check periodically
You should check connections for tightness, inspect the enclosure for corrosion or water intrusion, and monitor the battery’s voltage and state-of-charge regularly. If you have BMS communications available (some packs provide CAN/RS485 or similar), periodically review logged data for trends in cell imbalance or excessive temperature.
Storage recommendations
Store the battery at about 50%–70% state-of-charge if you won’t use it for extended periods. That reduces stress and preserves cycle life. Also, keep it in a cool, dry place above freezing if possible — charging below 0°C is not advised.
Pros and cons
You’ll want a clear view of the upsides and limitations so you can weigh them against your needs.
Pros
- High energy density compared to lead-acid: much lighter and smaller for the same kWh.
- Long cycle life: manufacturer claims thousands of cycles that outlast lead-acid by years.
- Robust BMS with high surge handling: supports golf cart and motor loads with fewer cutoffs.
- Low self-discharge and high efficiency: better performance during storage and low losses.
- IP65 rated: suitable for outdoor and dusty/wet environments (not submersion).
- Safe LiFePO4 chemistry: reduced risk of thermal runaway or violent failure.
Cons
- Upfront cost is higher than lead-acid: you pay more initially even though lifecycle costs are lower.
- Charging constraints below 0°C: you must avoid charging in freezing conditions or add battery heaters/management.
- Manufacturer spec inconsistencies: cycle life numbers vary between product name and details (5000+ vs 10000+), so you’ll want to confirm warranty terms.
- Weight and dimensions vary by pack: confirm fit and mounting for your specific vehicle or compartment.
How it compares to lead-acid and other LiFePO4 packs
You’ll often replace lead-acid with LiFePO4 for weight and lifecycle advantages. Compared with other LiFePO4 packs, cell grade and BMS quality matter most.
Lead-acid vs this LiFePO4
You’ll get roughly 1/3 the weight for the same capacity (manufacturer claim), double the usable energy per pack due to higher usable DoD, and far more cycles (4–10× or more). That converts into practical benefits: less frequent replacements, better performance on hills, and no maintenance water top-ups.
Other LiFePO4 packs
Not all LiFePO4 packs are equal. You’ll want Grade A cells, a robust BMS, and a reputable seller. Packs with poorer cell balance, weak BMS settings, or lack of IP rating might be cheaper but will often underperform in rough environments or have shorter useful life.
Practical scenarios and estimated runtimes
Your runtime depends on the loads you intend to run. The nominal energy is 5.12 kWh (48V × 100Ah), but usable energy varies by how conservative you are with DoD and inverter inefficiencies.
Example runtimes (approximate)
- Golf cart: many carts draw 1–3 kW intermittently; a 5.12 kWh pack could support a half-day to a full day of mixed-use driving depending on terrain and speed.
- RV 12V-equivalent loads (lights, pumps, fans) via inverter: if your continuous draw is 500W, expect about 8–9 hours of run time at 100% DoD (practically aim for less to extend life).
- Solar storage: paired with appropriately sized panels and MPPT controller, this pack makes a good mid-sized battery for daily energy use on cabins or off-grid cabins.
Note that real-world performance will vary with efficiency losses in inverters and temperature effects.
Troubleshooting and common questions
You’ll probably run into common questions during setup or early use. Here are practical answers.
What if the BMS cuts out suddenly?
If the BMS cuts out, check for a short, overly high current draw, or severely low cell voltage on one module. Allow the pack to rest, then use a controlled charger or the system charger to bring it to a normal state-of-charge. If the BMS is still tripping, contact the vendor for diagnostics.
Can you parallel multiple packs?
Yes, the manufacturer supports parallel configurations for higher total capacity and current. Make sure the packs are the same model, age, and state-of-charge when you parallel them, and use equalizing cables and proper fusing for safety.
Does the battery need balancing?
The BMS should handle balancing, but if you notice cell imbalance through communications or voltage differences, reach out for support. In normal operation, the BMS balances during charging cycles.
Warranty, documentation, and transparency
You’ll want clear warranty coverage and documentation. The product claims a long lifetime and high cycle counts, but there’s a discrepancy in the materials between “5000+” and “10000+” cycles and a 10-year lifetime claim. Ask the seller these questions before purchase: exact warranty length and terms, cycle warranty specifics, return policy, and whether the seller provides a datasheet with exact charge/discharge cutoffs and balancing thresholds.
What to ask the vendor
- Exact warranty length in years and what it covers (capacity fade thresholds, manufacturing defects).
- Confirmation of cycle life under specific DoD percentages (e.g., 80% DoD → X cycles).
- Clarification on the charge and discharge voltage cutoffs implemented by the BMS.
- Whether the pack exposes communications (CAN/RS485) for system integration and monitoring.
Who should buy this battery?
You’ll find this battery attractive if you want long life, high cycle durability, and better performance than lead-acid, particularly for golf carts, RVs, small off-grid systems, and marine applications. It’s especially valuable if you value lower maintenance and lighter weight and are ready to invest more upfront for lower lifecycle cost.
Who should be cautious
If you require charging below freezing regularly without additional heating, this battery could be restrictive since charging below 0°C is not supported. Also, if you need extensive manufacturer transparency or warranty certainty, get exact documentation before committing.
Final recommendation and buying checklist
You’ll likely be pleased if you prioritize long-term durability, weight savings, and reliable surge performance. The upgraded 200A BMS with strong peak allowances and IP65 rating makes it a practical choice for many outdoor and vehicle applications.
Checklist before you buy:
- Confirm that your system is 48V nominal and compatible with LiFePO4 charge voltages.
- Ask the vendor to clarify cycle life claims and the exact warranty terms.
- Verify physical fit, terminal types, and mounting clearances for your vehicle or enclosure.
- Ensure your charger or solar controller can be set to LiFePO4 charging parameters (final voltage ~58.4V for full charge).
- Plan for safe handling, appropriate fusing, and proper parallel connection practices if you intend to expand capacity.
FAQs (short and practical)
Q: Can this battery replace a 48V lead-acid bank directly?
A: Yes, electrically it can replace lead-acid, but you must verify charger compatibility, install proper fusing, and confirm physical fit.
Q: What about charging in winter?
A: You should avoid charging below 0°C. For cold climates consider battery heaters, insulated enclosures, or an alternative charging strategy recommended by the manufacturer.
Q: How long will the battery last?
A: Manufacturer claims range from 5000+ to 10000+ cycles and a 10-year lifetime. Real life will depend on DoD, temperature, and charging patterns. Confirm warranty for specifics.
Q: Does the BMS allow high current draws?
A: Yes — 200A continuous and high peak allowances (up to 1000A for a few seconds) allow handling motor starts and surges common in carts and boats.
Q: Is it safe outdoors?
A: With IP65 rating and LiFePO4 chemistry, it’s suitable for outdoor use but should be protected from submersion and extreme environments.
Final thoughts
If you want to upgrade to a modern, lighter, and longer-lived battery bank for a 48V system, this 48V 100AH LiFePO4 battery is a strong candidate. You’ll get better performance, fewer maintenance headaches, and the ability to handle high surge currents required by motors. Just confirm the warranty details, charger compatibility, and any specific installation requirements for your application. With those checks in place, you’ll be well positioned to enjoy reliable, long-term power from a compact 5.12 kWh pack.
