Are we ready to see whether the 12V 100Ah LiFePO4 Lithium Battery, Mini Deep Cycle Rechargeable LiFePO4 Battery, Max.15000 Cycles Built in 100A BMS for RV, Trolling Motor, Camping, Marine, Solar, Home Energy Storage(1 Pack) fits our needs?
Product snapshot
We want a concise yet comprehensive view of what this battery offers. The 12V 100Ah LiFePO4 Lithium Battery (full product name above) positions itself as a lightweight, high-cycle alternative to traditional lead-acid and AGM batteries, aiming at RV, marine, solar, and portable power users.
What this battery promises
We can expect roughly one-third the weight of a comparable lead-acid battery, significantly higher usable energy, and a long cycle life due to LiFePO4 chemistry. The built-in 100A BMS and LED display add convenience and safety, making it an appealing plug-and-play option for many applications.
Key specifications at a glance
We like to look at numbers first to see if the hardware meets our needs. Below is a straightforward breakdown of the main specs taken from the product details.
| Specification | Detail |
|---|---|
| Nominal Voltage | 12V |
| Capacity | 100Ah (1.28 kWh nominal) |
| Usable Energy | Up to ~1,280 Wh with 100% DOD (manufacturer states) |
| Cell Chemistry | LiFePO4 (lithium iron phosphate) |

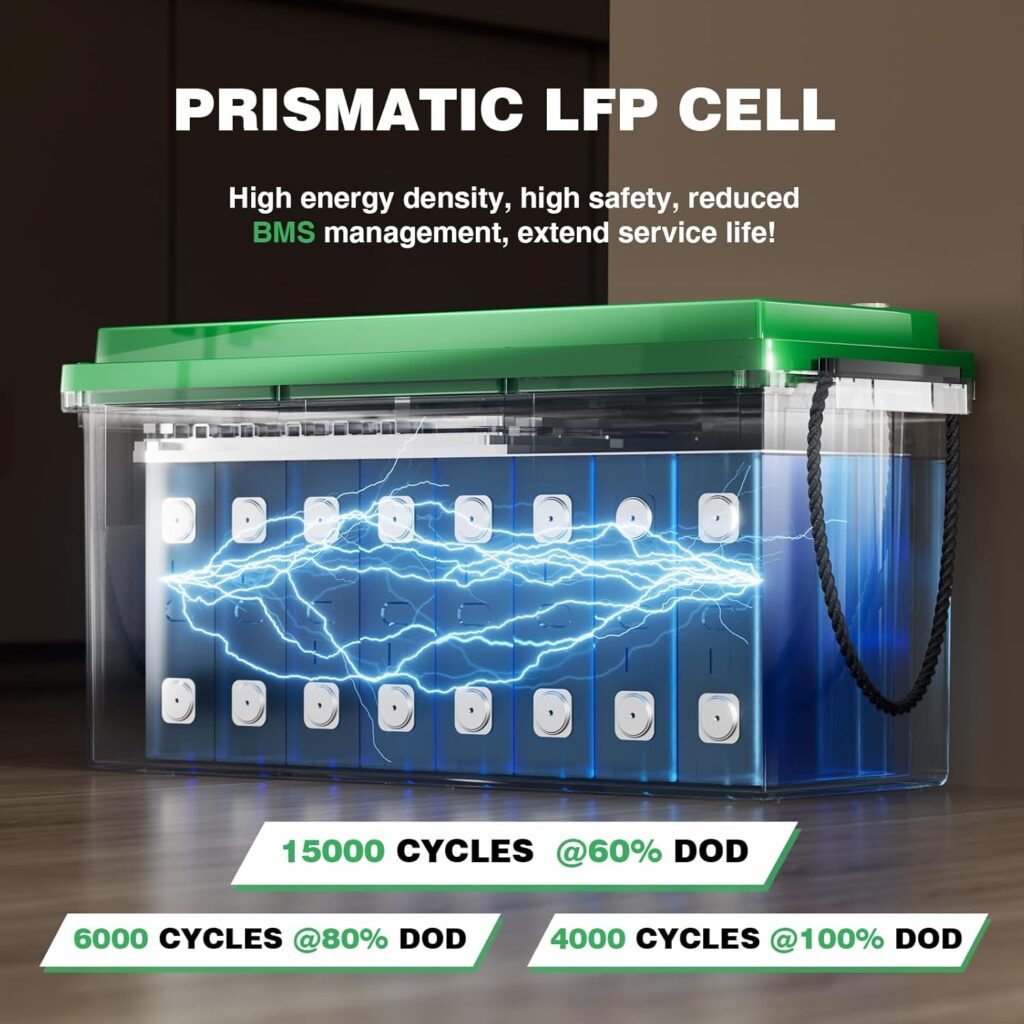

| Cycle Life | 4,000+ cycles at 100% DOD; 6,000 cycles at 80% DOD; up to 15,000 cycles at 60% DOD |
| BMS | Built-in 100A Battery Management System (overcharge, over-discharge, over-current, short-circuit protection) |
| Dimensions | 9.01 x 8.38 x 5.66 inches (Group 24 compatible) |
| Weight | ~19.73 lbs |
| Expandability | Supports 4S4P connection (up to 16 units for ~20.48 kWh, max 51.2V 400Ah configuration) |
| Display | LED showing voltage and percentage of capacity |
| Warranty | 5-year (as indicated by seller’s after-sales) |
We find this snapshot helpful because it quickly shows the core performance claims, physical footprint, and the expandability options that many users will consider before buying.
Performance and cycle life
We care about long-term performance as much as initial specs. LiFePO4 chemistry is one of the most stable lithium chemistries for cycle life and thermal stability, and this battery’s claimed cycle figures are impressive on paper.
Realistic cycle expectations
We should treat the manufacturer’s cycle numbers as optimistic but achievable under the right conditions. 4,000 cycles at full 100% depth of discharge is very good, while 6,000 cycles at 80% DOD and 15,000 cycles at 60% DOD indicate a battery that will outlast conventional AGM or flooded lead-acid batteries by a large margin in everyday use.
Why cycle life matters to us
Longer cycle life reduces the total cost of ownership and lowers maintenance and replacement hassle, especially for installations where access is limited or for mobile rigs like RVs and boats. We can realistically expect many years of service even with frequent cycling when we size and use the battery appropriately.
Built-in 100A BMS and safety features
We value safety more than raw specs, and the built-in battery management system is a major plus for casual installers and DIYers alike. The integrated BMS monitors and protects the battery against multiple failure modes.
Protections provided by the BMS
The battery includes over-charge, over-discharge, over-current, and short-circuit protection. This means we can hook it up to our loads and chargers without adding complex external protection circuits in many cases, though we still recommend proper system design and fusing.

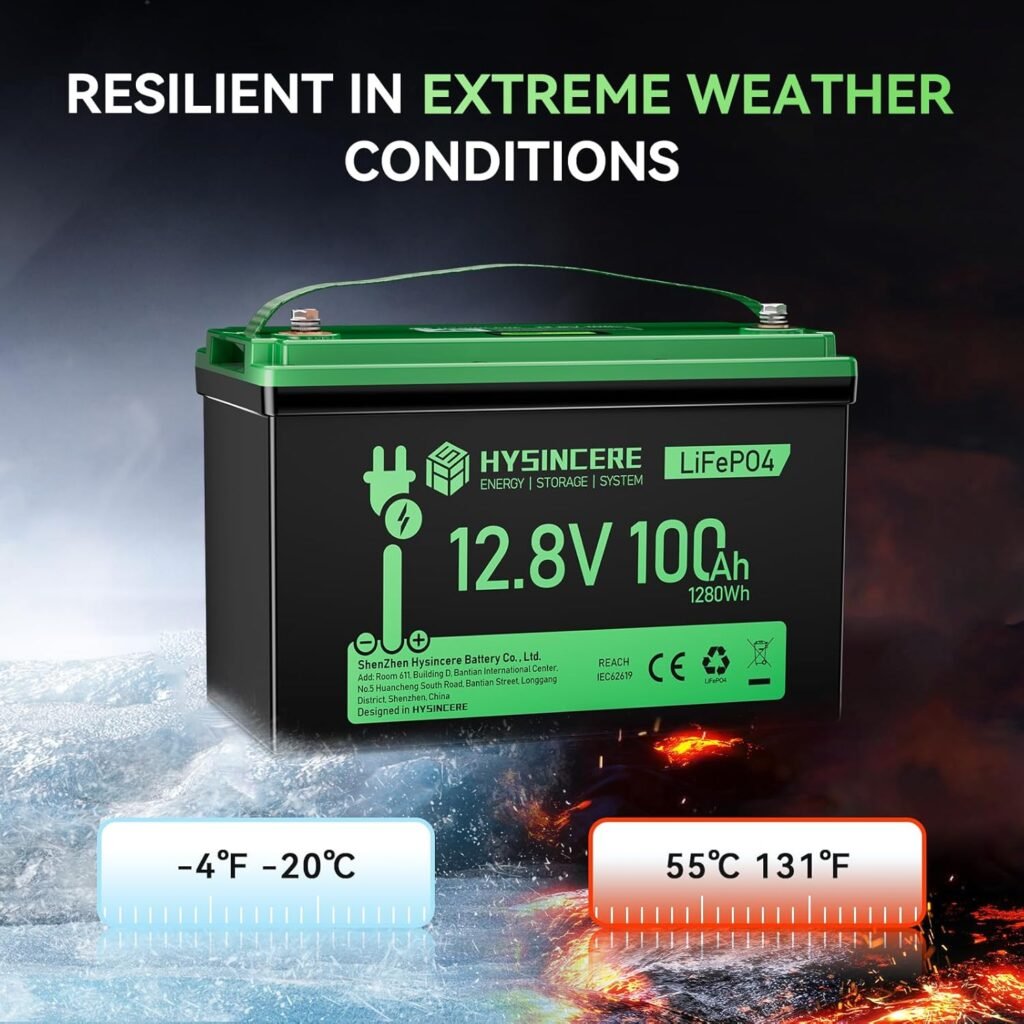

Thermal and environmental protection
The seller claims the battery can be used safely in low-temperature environments and various conditions, thanks to BMS control. While the BMS helps, we should remember LiFePO4 batteries still have temperature limits for optimal charging and discharging, so appropriate placement and consideration of ambient temperatures remain important.
Size, weight, and form factor
We often measure practicality by how easy it is to handle and install a battery, and this pack scores well on that front. At roughly 19.73 lbs and compact Group 24-sized dimensions, this LiFePO4 unit is far easier to move and place than equivalent lead-acid batteries.
Group 24 compatibility
The battery’s 9.01 x 8.38 x 5.66 inch footprint is compatible with Group 24 battery boxes, which means we can often drop it into existing trays and compartments without major modifications. That makes it a near drop-in replacement for many vehicles and portable systems that previously used AGM or SLA Group 24 batteries.
Weight advantage for mobile use
We appreciate the ~1/3 weight compared to a similar lead-acid battery because it reduces the strain on mounting systems and improves fuel efficiency in mobile applications like RVs and boats. Carrying and installing the battery ourselves becomes easier, and we can often manage installations without heavy tools or extra help.
Expandability and system building
We like products that let us scale our systems as needs grow, and this battery’s support for 4S4P configurations gives us flexibility. The ability to expand from 1.28 kWh up to ~20.48 kWh using 16 identical units is useful for custom home energy setups or large mobile systems.
Practical limits and considerations
While the battery supports expansion, wiring larger banks requires careful planning, matched units, proper balancing, fusing, and sometimes additional BMS supervision depending on the system architecture. We must account for consistent temperature, identical state-of-charge at setup, and professional wiring to ensure long-term reliability.
Typical expansion scenarios
We can build a 12V system with multiple parallel batteries for increased amp-hour capacity, or arrange packs in series and parallel combinations to achieve higher voltages (up to about 51.2V with multiple packs). This is handy when integrating with inverters and chargers that prefer higher DC bus voltages.
LED display and user feedback
We like clear feedback from power hardware so we can quickly judge state of charge and health. The built-in LED display shows voltage and capacity percentage, giving us a quick reference without additional tools.
How to interpret the LED values
Because LiFePO4 voltage curves are flatter than lead-acid, the LED percentage is convenient but we should cross-check with voltage readings after the battery has rested for around 30 minutes following charging. The seller advises waiting about half an hour after charging to get a stable voltage reading, and we agree that resting before reading gives more accurate state-of-charge feedback.
Limitations of simple displays
While the LED helps day-to-day monitoring, it won’t replace a full battery monitor for precise amp-hour tracking or long-term data logging. If we want to optimize system performance or track degradation closely, pairing this battery with a dedicated battery monitor and shunt is recommended.
Compatibility and common applications
We appreciate batteries that can serve multiple roles, and this unit targets a broad range of use cases. It’s described as suitable for RVs, trolling motors, camping, marine craft, solar arrays, and home energy storage, which aligns with its rugged, compact, and protected design.
RV and motorhome use
For RVs, this battery saves space and weight while providing more usable energy than an AGM of similar nominal capacity. We can use it to run fridges, lights, electronics, and other 12V loads with fewer worries about frequent replacement.
Marine and trolling motors
For small boats and trolling motors, the reduced weight and higher cycle life are attractive features because they extend runtime and reduce maintenance. We should ensure the battery is secured and protected from splashes and extreme temperatures, but its LiFePO4 chemistry is better suited to marine environments than many lead-based chemistries.
Camping and portable power
We like that this battery is small and portable enough for camping setups where weight matters. Pairing it with a compact inverter or DC devices lets us run essential gear without lugging a heavy lead-acid battery.
Solar and home energy storage
For small solar systems and off-grid cabins, the battery can be part of a modular solution, particularly when we scale multiple units for increased capacity. Integrated BMS protection and the option to expand make it a reasonable building block for DIY home energy storage when designed properly.
Charging behavior and recommendations
We want reliable charging performance and predictable charge times, and LiFePO4 chemistry allows faster charging than lead-acid in many cases. Using a charger compatible with LiFePO4 charging profile yields better cell balancing and longevity.
Recommended charger settings
We should use a charger or MPPT controller set for a LiFePO4 charge voltage — typically about 14.2–14.6V for bulk/absorption, with float either disabled or set low (LiFePO4 doesn’t need high float like lead-acid). Chargers that allow setting charge parameters or have a LiFePO4 preset are ideal.
Charging times
Charging time depends on the charger current; with a 100A BMS, short-term high charge currents are allowed but the actual safe charge rate depends on the internal cell design. For a 100Ah pack, charging at 0.2C (20A) will take around 5–6 hours from a deeply discharged state, while higher current chargers will shorten that time if the cells and BMS permit.
Discharge capability and practical limits
We rely on discharge capability to meet load demands, and the built-in 100A BMS gives us a solid continuous discharge ceiling for many applications. This 100A current is ample for running inverters for moderate power draw or heavy DC loads directly.
Peak and continuous currents
The battery supports a 100A continuous protective limit — enough for most 12V DC loads and many inverter setups in small RVs or boats. For high-power inverters or prolonged heavy loads, we should size our battery bank or use multiple batteries in parallel to spread currents and reduce stress.
Using the battery with inverters
When pairing with inverters, keep in mind inverter startup surges (like fridge compressors) and ensure wiring, fuses, and the inverter’s DC input can handle those surges without tripping the BMS. If we plan large AC loads, paralleling multiple batteries or choosing a higher-capacity battery bank is recommended.
Temperature, environment, and placement
We want durable gear for a variety of climates, and while LiFePO4 is robust, temperature affects charge acceptance and longevity. The manufacturer indicates safe operation in low temperatures with BMS protection, but practical limitations still apply.
Charging below freezing
Charging LiFePO4 at temperatures below 0°C (32°F) can damage cells unless the battery or BMS includes a heating function. The product description suggests protection has been built-in, but we must verify whether the battery includes low-temperature charge cut-off or internal heat management if we expect to charge in freezing conditions.
Operating temperature range
For discharging and normal operation, LiFePO4 typically performs well across a broad temperature range, but high ambient temperatures over time can accelerate aging. We should place the battery where ventilation and moderate temperatures can be maintained for longest life.
Maintenance and lifecycle management
One of the attractive aspects of LiFePO4 is low maintenance relative to flooded lead-acid designs; we like that this battery requires minimal ongoing attention. Still, routine checks and sensible practices will extend service life.
Simple maintenance steps
We recommend keeping terminals clean and tight, ensuring proper ventilation, and periodically inspecting wiring and mounting hardware. If using multiple batteries in a bank, we should check for equal state-of-charge and consistent performance across units.
End-of-life considerations
When the battery’s capacity diminishes after many years, repurposing it for less critical loads or replacing with a new unit are common paths. Given the long expected cycle life, end-of-life concerns are less urgent than with AGM batteries, but planning and recycling remain our responsibility.
Comparison with AGM and lead-acid batteries
We like to compare real alternatives before committing, and this unit beats traditional AGM batteries in several key areas. The primary advantages are weight, usable capacity, cycle life, and long-term cost-effectiveness.
Energy and usable capacity
An AGM battery of nominal 100Ah offers much less usable energy because typical lead-acid DOD recommendations are 50% or less, whereas LiFePO4 allows deeper regular discharges without life penalties. In practical terms, our usable energy roughly doubles compared to AGM in many scenarios.
Cost and total cost of ownership
Upfront cost for LiFePO4 tends to be higher than AGM, but the longer lifespan and deeper usable capacity typically result in lower total cost of ownership over the battery’s life. We should consider replacement frequency, performance degradation, and maintenance when comparing costs over a multi-year horizon.
Installation and wiring tips
We want installations that are safe and dependable, and a few best practices help ensure smooth performance. Proper fusing, correct cable sizing, and secure mounting will keep us out of trouble.
Fusing and safety
Even with a BMS, we must fuse the battery at the DC positive terminal close to the battery to protect wiring and equipment in case of external short circuits. Use appropriately rated slow-blow DC fuses or breakers sized for expected continuous current plus a safety margin.
Cable sizing and connections
Use thick, low-resistance cables for high-current connections to reduce voltage drop and heat. Tight, clean connections with appropriate terminal hardware reduce resistance and avoid hot spots that can degrade performance or cause failures.
Pros and cons — a balanced view
We like to be pragmatic, so we’ll summarize key strengths and weaknesses that should influence our purchase decision. The battery shines in many practical areas but isn’t perfect for every scenario.
Pros
- Dramatically lower weight than equivalent lead-acid batteries, easing installation and transport.
- Much higher usable capacity and significantly longer cycle life, lowering long-term costs.
- Built-in 100A BMS provides essential protections, simplifying installations.
- Group 24 form factor compatibility allows drop-in replacement in many existing setups.
- Expandable to large systems when multiple units are wired properly.
Cons
- Higher initial purchase price than AGM or SLA batteries, though offset over lifetime for many users.
- LED display is basic and doesn’t replace a full battery monitor for precise amp-hour tracking.
- Charging below freezing requires caution unless the BMS supports a heating/charge-enable feature.
- To scale to large systems, careful wiring and balancing are required — not a simple plug-and-play for novice users at large scale.
Real-world use cases and examples
We find it useful to picture how products perform in everyday scenarios, so here are common use cases and how the battery fits them. These examples are realistic and speak to performance expectations.
Weekend camping with appliances
For a weekend trip running a compressor cooler, lights, and charging devices, a single 12V 100Ah LiFePO4 battery gives us many more usable amp-hours than an AGM alternative. We can expect to run typical loads for longer without recharging, reducing generator reliance.
Small to mid-size RV electrical system
In an RV, this battery can serve as a house battery to keep lights, water pumps, and electronics running through evenings and mornings. With parallel units, we can scale capacity to match extended off-grid stays.
Trolling motor sessions and marine electronics
For small boats running trolling motors and fish finders, the lighter weight and high discharge capability mean improved runtime and better handling. The battery’s marine compatibility and Group 24 fitment make it a practical swap for many boat battery trays.
Off-grid solar for tiny houses or cabins
As part of a modular solar setup, multiple units configured appropriately can provide reliable, long-lasting storage that is easier to manage than many older chemistries. We can balance cost and capacity incrementally as our system grows.
Troubleshooting and frequently asked questions
We like to prepare for common issues so we can resolve them quickly. Below are answers to questions we often have when evaluating or using this type of battery.
What if the battery won’t accept charge?
First, we check wiring, fuses, and charger compatibility. Next, we verify the BMS hasn’t gone into protective mode due to overtemperature, overcurrent, or low cell voltage; if it has, allow the battery to rest and cool or warm to a safe temperature, then try again.
How do we know if cells are balanced?
The LED will provide basic voltage and percentage, but for precise balancing checks we should use a multimeter on the pack terminals and compare identical units in banks. If cells appear out of balance in a multi-battery setup, professional balancing or manufacturer support may be required.
Can we charge with a solar charge controller designed for AGM?
Only if the controller has a LiFePO4 setting or allows tuning of voltage parameters to LiFePO4 specifications. Using AGM settings risks undercharging or overcharging, so verifying charge profile compatibility is prudent.
Warranty, support, and after-sales service
We appreciate responsive vendor support, and the product listing indicates a 5-year warranty and prompt customer service. The seller claims a 24-hour response window for support inquiries and a warranty policy that can give us peace of mind.
How to access support
The seller directs customers to “Ask a question” on the store page or “Contact Seller” in the order options. We should keep purchase records and product serial numbers handy when contacting support for the quickest resolution.
What warranty usually covers
Typical warranty coverage includes manufacturing defects, premature capacity loss beyond expected degradation, and BMS failures under normal use. It usually won’t cover abuse, improper installation, or damage from misuse, so following installation and operation guidelines is important.
Who should consider buying this battery
We like to recommend products for specific user profiles, and this battery is a good fit for many situations. It suits mobile users who need lightweight reliable power, DIY solar builders who want modular expansion, and anyone tired of frequent AGM replacements.
Ideal buyer profiles
- RV owners wanting a lighter, higher-capacity house battery.
- Boaters needing improved cycle life and reduced weight for trolling and electronics.
- Campers and van-lifers who value portability and off-grid runtime.
- DIY solar/hybrid system builders who plan to scale capacity over time.
Who might want to look elsewhere
If upfront budget is the primary constraint and replacing batteries frequently is acceptable, an AGM may still be attractive for lower initial cost. Also, users needing extreme high-current bursts beyond the 100A BMS limit without paralleling multiple units may require a different battery solution.
Final recommendation and buying tips
We think this 12V 100Ah LiFePO4 battery is a strong option for many of our use cases, particularly where weight, usable capacity, and cycle life matter. Its built-in protections, Group 24 compatibility, and expandability make it a practical choice for RVs, marine, and small solar storage applications.
Practical buying tips
- Confirm the charger or solar controller can charge LiFePO4 properly or has a LiFePO4 preset.
- If you plan to install more than one battery, purchase identical units at the same time to ensure matching cell age and capacity.
- Fuse the battery close to the terminal and use appropriately sized cabling for your anticipated current draw.
- Consider adding a battery monitor for amp-hour tracking if precise runtime estimation is important.
Closing thoughts
We appreciate how this battery combines a compact footprint, light weight, long cycle life, and built-in safety into a product that can serve diverse applications. While it carries the typical higher upfront cost of LiFePO4, the long-term benefits and flexibility make it an appealing investment for many of our mobile and small-scale stationary energy needs.
