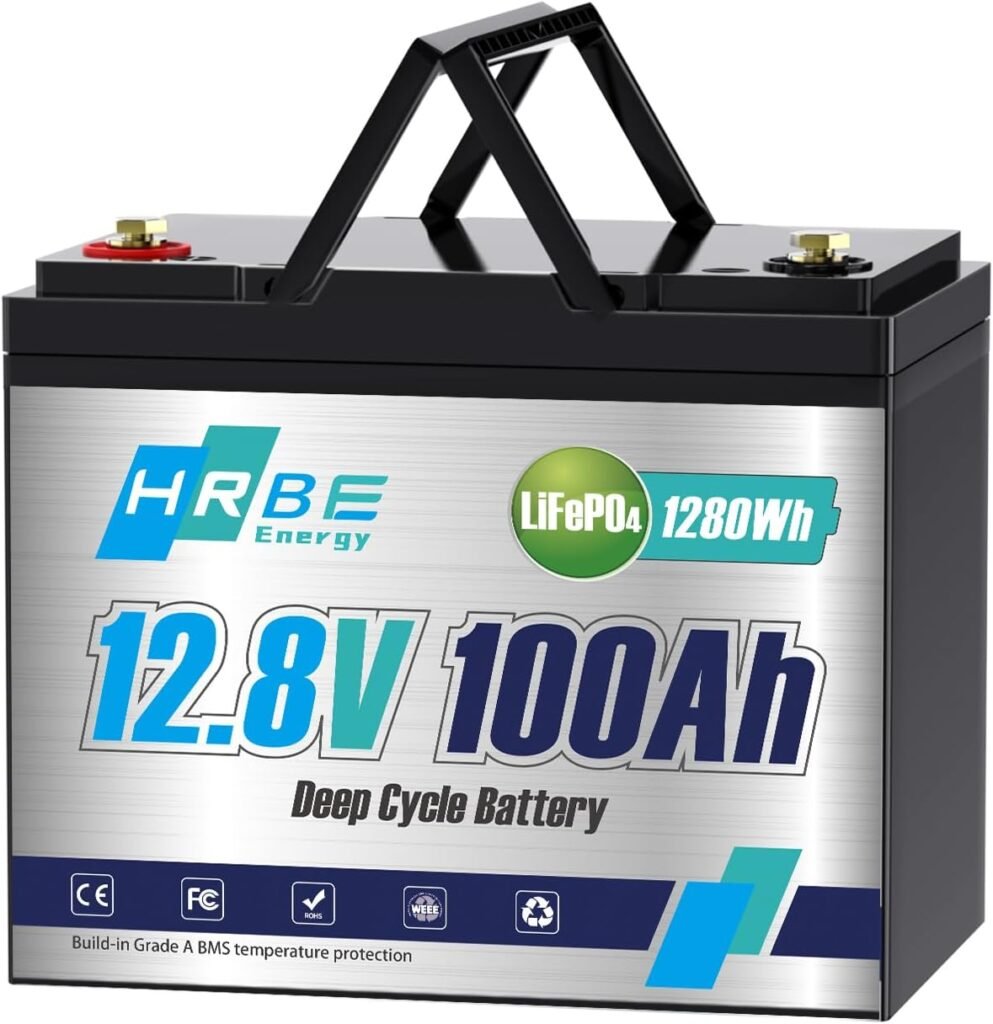

100Ah LiFePO4 Battery 12.8V review

Ready to upgrade our power setup with a compact, long-lasting 12.8V LiFePO4 battery that claims 8000+ deep cycles?

Product overview

We want a clear, honest look at what this battery offers and whether it truly fits our applications. Below we break down the “100Ah LiFePO4 Battery 12.8V Lithium Battery Built-in 100A BMS, Rechargeable Lithium Iron Phosphate Battery, 8000+ Deep Cycles 1280Wh Battery Waterproof for RV, Solar, Boat, Marine, Trolling Motor” into practical details so we can make an informed decision.

What the product is in plain terms

We see a 12.8V, 100Ah LiFePO4 (lithium iron phosphate) battery with an integrated 100A Battery Management System (BMS). It’s designed to replace lead-acid batteries in mobile and off-grid systems and offers much higher cycle life and lower weight.

Who this product is aimed at

We think this battery targets RV owners, boaters, solar system integrators, campers, and anyone needing reliable deep-cycle energy storage rather than engine starting. It’s useful wherever a compact, durable DC battery is required for long-term energy delivery.

Specifications breakdown

We want to present the key specs in an easy-to-read format so we can quickly compare and reference them. The table below covers the main numbers and features that matter most to everyday use and system planning.

Notes on the specs table

We like that the table compiles the essential engineering and user-facing specs for quick evaluation. These numbers help us size systems, pick charging equipment, and determine whether the battery fits space and weight constraints.

Performance and real-world use

We want the battery to perform reliably under typical loads and the occasional heavy draw. In this section we cover discharge behavior, run-time estimates, and how the battery behaves over its long life.

Discharge and load handling

We find the 100A continuous discharge rating gives the battery a healthy headroom for many appliances and motors commonly used in RVs and boats. For example, a 500W inverter load (accounting for inefficiencies) will draw roughly 40–50A at 12.8V, which is within continuous rating; short inrushes up to 200A are tolerated for a few seconds for motors and pumps.

Runtime examples and calculations

We like concrete numbers, so here are typical run-time estimates based on the 1280Wh capacity:

• 100 W load: ~12.8 hours (1280 Wh / 100 W)
• 300 W load: ~4.3 hours
• 500 W load: ~2.5 hours
• 1000 W load: ~1.28 hours Keep in mind inverter efficiency, temperature, and depth-of-discharge (DoD) practices affect these numbers. Because LiFePO4 supports high DoD with minimal degradation, we can use a larger fraction of the 1280 Wh safely than with lead-acid.

Charging behavior and recommended settings

We recommend charging at 14.6 V with a maximum of 50 A charge current as specified. Using a proper LiFePO4-capable charger or an MPPT solar charge controller set to LiFePO4 parameters will result in faster and safer charging. If we charge at 50 A from near-empty, theoretical charge time to full is roughly 2–2.5 hours in CC (constant current) phase before CV (constant voltage) tapering.

Cycle life and degradation

The declared 8000+ deep cycles is a standout spec; it means that with conservative use (partial DoD and reasonable charge currents) the battery can last many years — often a decade or more — before capacity drops significantly. We should expect much slower degradation than lead-acid, translating to lower life-cycle cost for intensive use.

BMS and safety features

We want the battery’s internal protections to prevent damage, avoid manual intervention, and keep our systems safe. The built-in BMS is one of the primary reasons to prefer a modern LiFePO4 module.

100A BMS protection overview

The built-in 100A BMS protects the pack from overcharge, over-discharge, over-current, overheating, and short circuits. This automated protection simplifies system wiring and reduces the risk of catastrophic failure from common electrical faults.

Low-temperature cut-off and its importance

We appreciate the low-temperature cut-off because LiFePO4 cells are sensitive to charging below certain temperatures. The BMS prevents charging at temperatures that could cause lithium plating and cell damage, while permitting discharge where safe. This is especially valuable in cold climates and marine environments.

Auto overload protection and recovery

The battery’s auto overload protection allows the pack to enter a safe-protected state under extreme load and then recover automatically when conditions normalize. This reduces our need to troubleshoot or manually reset the battery if a temporary overload occurs.

Physical characteristics and installation

We want the battery to be easy to place in typical battery bays and to be reasonably light for handling and installation. Here we discuss size, weight, and installation tips.

Size, weight and fit

At about 19.4 lbs and compact dimensions (10.24 x 6.61 x 8.46 inches), the battery is significantly smaller and lighter than comparable lead-acid options. The reduced weight makes installation easier and reduces overall system weight, which is helpful in boats and RVs.

Terminal layout and mounting

We note the terminals are standard for this battery type and that the housing fits BCI Group 24/27/31/49 boxes. We recommend securing the battery with straps or a bracket rated for the application (marine or vehicular) and ensuring terminals have corrosion-resistant connections and proper torque.

Wiring, fuses and connectors

When we wire the battery, we should place an appropriately sized fuse or battery breaker close to the positive terminal to protect against short circuits. For continuous 100A loads, we should use cables sized for that current (consult cable ampacity charts) and quality crimped or bolted connectors for reliability.

Series and parallel connections: flexibility and cautions

We like modularity, but we also want to follow strict rules to keep systems stable and safe when combining multiple packs.

What series and parallel support means

This battery supports series and parallel connections up to a maximum 4S4P configuration, meaning we can put up to 4 batteries in series for higher voltage systems (e.g., 51.2V for 4 x 12.8V) and up to 4 in parallel to increase capacity and current capability. Combined 4S4P could yield higher voltage and higher capacity when properly implemented with matched batteries.

Best practices when combining packs

We strongly suggest using identical batteries (same make, model, age, and charge state) when connecting in series or parallel. We also recommend adding balancing hardware, fuses per string, and mounting considerations to prevent cable stress. Mismatched cells or uneven states of charge risk BMS trips and reduced life.

Applications and suitability

We want to know where this battery truly shines and where we should avoid it. The battery is optimized for energy storage and deep-cycle use.

RV and camper use

For RVs and campers, the battery is an excellent replacement for lead-acid house banks. Its low weight, long life, and ability to sustain deep cycles make it ideal for powering lights, fridges, pumps, and electronics. We should use a DC-DC charger or an RV-specific charging profile to get the best results.

Solar off-grid systems

In solar setups, this LiFePO4 pack offers higher usable capacity and longer life than flooded or AGM batteries. We can use MPPT controllers with LiFePO4 charging profiles, and its low self-discharge helps during seasonal storage.

Marine and boating applications

For boats, the battery’s waterproof design, low weight, and resistance to vibration are attractive. It’s suitable for house loads and trolling motors (within current limits). We must remember it’s intended as a deep-cycle battery and not a cranking starter battery for large outboard engines.

Trolling motors and electric propulsion

With the 100A continuous rating and 200A short burst capability, the battery will handle many trolling motors for moderate run times. For high-power electric propulsion, we should check motor draw profiles and consider parallel configurations or larger capacity packs.

Backup power and portable power stations

As a backup for home electronics or small appliances, the battery is useful for inverters and UPS systems sized to its 12.8V input. It provides stable energy during outages and can be stacked for larger systems with careful design.

Not a start/engine starter battery

We must be clear: the manufacturer notes this battery is suitable for energy storage rather than as a start-up battery. Starting batteries require different discharge characteristics from deep-cycle cells, so we should not use this pack as a direct replacement for starter cranking in engines.

Comparison with lead-acid and other LiFePO4 options

We want to know how this battery stacks up in cost, performance, weight, and safety relative to alternatives.

Weight and energy density vs lead-acid

We find the battery is about 70% lighter and 30% smaller than comparable lead-acid batteries. The energy density is several times higher, meaning we get more usable Wh per pound. That is a major advantage for mobile and weight-sensitive installations.

Lifespan and total cost of ownership

While upfront cost is higher than lead-acid, the long cycle life (8000+ cycles) dramatically reduces replacement frequency and total cost per kWh stored over the life of the battery. For frequent users, LiFePO4 usually becomes cheaper over time when factoring replacements and maintenance.

Safety and maintenance differences

LiFePO4 chemistry is more thermally stable than other lithium chemistries and substantially safer than some alternatives. With the integrated BMS and lack of required maintenance, we save time and reduce the risk of acid spills, frequent topping-up, and seasonal maintenance associated with lead-acid batteries.

Pros and cons

We like clear lists to weigh trade-offs quickly. Below we summarize the strongest advantages and the downsides to consider.

Pros

• Significantly lighter and smaller than lead-acid equivalents, making installation and transport easier.
• Very long cycle life (8000+ cycles), which lowers long-term cost and replacement frequency.
• Built-in 100A BMS for comprehensive protection and low-temperature cut-off for safer operation.
• High continuous current capability (100A) and short burst capability (200A) for motors and inrushes.
• Compatible with BCI Group 24/27/31/49 battery boxes, making drop-in replacements easier.
• Waterproof design suitable for marine and outdoor use.
• Supports series and parallel configurations for scalable systems.
• 5-year after-sales service and technical support.

Cons

• Not intended as a starter battery for engine cranking, so we may still need a dedicated starter battery for some setups.
• Initial cost higher than lead-acid, requiring longer-term planning to justify expense.
• Charging below safe temperatures is disabled by the low-temp cut-off, which could complicate winter charging without a battery heater or insulated enclosure.
• Needs an LiFePO4-compatible charger or configurable MPPT to get proper charging profiles for optimal longevity.

Installation checklist and best practices

We prefer to follow a checklist to reduce mistakes during installation. Below we provide a practical sequence and items to check.

Pre-installation checks

• Verify the battery model and capacity match our system requirements and space constraints.
• Inspect terminals, housing, and labeling for shipping damage.
• Ensure we have the correct mounting hardware and a suitable battery box for marine or vehicle installations.

Wiring and safety items

• Use appropriately gauged cables sized for continuous 100A operation and account for voltage drop.
• Install a fused disconnect or circuit breaker within a few inches of the positive terminal.
• Use quality ring terminals, anti-corrosion spray or stainless hardware if in marine environments, and torque terminals to manufacturer specs.

Charging and system integration

• Configure inverter/charger or solar charge controller with LiFePO4 settings: absorption ~14.4–14.6V and float often omitted or set per manufacturer.
• If using alternator charging, consider a DC-DC charger configured for LiFePO4 to avoid over/under-charging and to respect low-temp cutoff.
• For multi-battery setups, ensure identical batteries and add per-string fuses and balancing tools as necessary.

Charging options and recommended chargers

We want to pick chargers that respect LiFePO4 charging profiles and safely replenish our battery without undue stress.

Using AC chargers and inverter/chargers

We recommend using chargers or inverter/chargers explicitly supporting LiFePO4 with an absorption voltage around 14.6V. Charge current should be kept below 50A if the manufacturer recommends that maximum; a smart charger will safely negotiate CC/CV phases.

Solar charge controllers and MPPTs

For solar systems, a modern MPPT charge controller with selectable battery chemistry is ideal. Set the absorption voltage to 14.6V and allow proper MPPT programming for bulk and float settings compatible with LiFePO4.

Charging from alternator or DC-DC chargers

We suggest a DC-DC charger when charging from a vehicle alternator, because alternators typically have charging profiles suited for lead-acid and may not fully charge LiFePO4 or could risk issues in cold conditions. DC-DC chargers can be configured for the correct voltage, current limits, and low-temperature behaviors.

Troubleshooting common issues

We prefer to anticipate common issues and have simple troubleshooting steps to reduce downtime and frustration.

Battery won’t charge or charges slowly

• Confirm charger is set to LiFePO4 mode and voltage is at 14.6V during absorption.
• Check battery temperature; low-temp cutoff may prevent charging until the battery warms to a safe threshold.
• Inspect cables and connectors for voltage drops or loose connections that could mimic slow charging.

BMS trips or battery shuts down

• Check for overcurrent conditions or short circuits in the system.
• If using multiple batteries, ensure they are balanced and matched; mismatched packs can cause protective actions.
• Wait for the battery to cool or to be disconnected from the fault, and allow auto-recovery as mentioned in the product spec.

Inconsistent readings or state-of-charge confusion

• Ensure battery monitor and inverter/charger are configured for LiFePO4 nominal voltage (12.8V) and capacity.
• Recalibrate battery monitors after a few charge/discharge cycles when entering a new setup to improve SOC accuracy.

Warranty, support and after-sales

We want dependable support, and this product promises a meaningful warranty period and responsive customer service.

Warranty and what it covers

The product includes a 5-year after-sales service window, which is significant for battery products. This usually covers manufacturing defects and early-life failures, but we should read the fine print about cycle limits, abuse, or installation errors.

Technical and customer support

The manufacturer offers online technical support with 24-hour response times. We appreciate fast support for system integration questions, warranty claims, and troubleshooting advice.

Frequently Asked Questions (FAQ)

We anticipate the questions we’d ask and answer them clearly so we don’t have to look elsewhere.

Can this battery start an engine?

No, this battery is designed for energy storage and deep-cycle use, not as a starter/cranking battery. For starting engines we should use a dedicated starter battery or a dual-battery setup that includes a cranking battery.

How long will the battery last in real use?

With reasonable use and proper charging, we can expect years of service thanks to its 8000+ cycle rating. That often translates to many years (5–15+) depending on cycle frequency and depth-of-discharge habits.

Can we connect multiple units in series or parallel?

Yes, the battery supports series and parallel connections up to 4S4P. However, we should only parallel/series identical batteries and follow best practices (fusing, balancing, matched age and state-of-charge).

What happens if we try to charge below freezing?

The BMS includes a low-temperature cut-off to protect the cells from charging at unsafe temperatures. Charging will be blocked below the threshold; we should use insulation or battery heating if we need to charge in very cold conditions.

What charger settings should we use?

Set absorption/charge voltage to ~14.6V and current to a level less than 50A. Use LiFePO4-compatible chargers or MPPT controllers with a dedicated LiFePO4 profile for best results.

Is the battery waterproof for marine use?

Yes, the battery is designed to be waterproof for marine and outdoor applications, but we still recommend proper venting-less enclosures and secure mounting.

Final verdict

We find this 100Ah, 12.8V LiFePO4 battery to be a compelling option for anyone converting from lead-acid to lithium for house loads, solar storage, boating, and trolling motors — provided they don’t need a starter battery. Its high cycle life, built-in 100A BMS with low-temp protection, compact size, and friendly weight make it an excellent performer for mobile and off-grid systems. While the upfront cost is higher than lead-acid, the long lifespan and reduced maintenance usually justify the investment for frequent users. We recommend pairing it with LiFePO4-compatible chargers and following installation best practices to get the most out of this battery.

If we need help selecting compatible chargers, combining multiple units, or estimating run-time for our specific loads, we can go through those details together and size a system that fits our needs.
